Chapter 1: Introduction
PLAYBACK
1. From any of the ‘Live’ screens; rotate the Menu
knob to display the ‘Camera’ menu
2. Rotate the knob to the desired camera parameter,
then press the knob to select
3. Rotate the knob, in either direction, to change the
selected parameter, then press knob to confirm
Using the Menu Knob

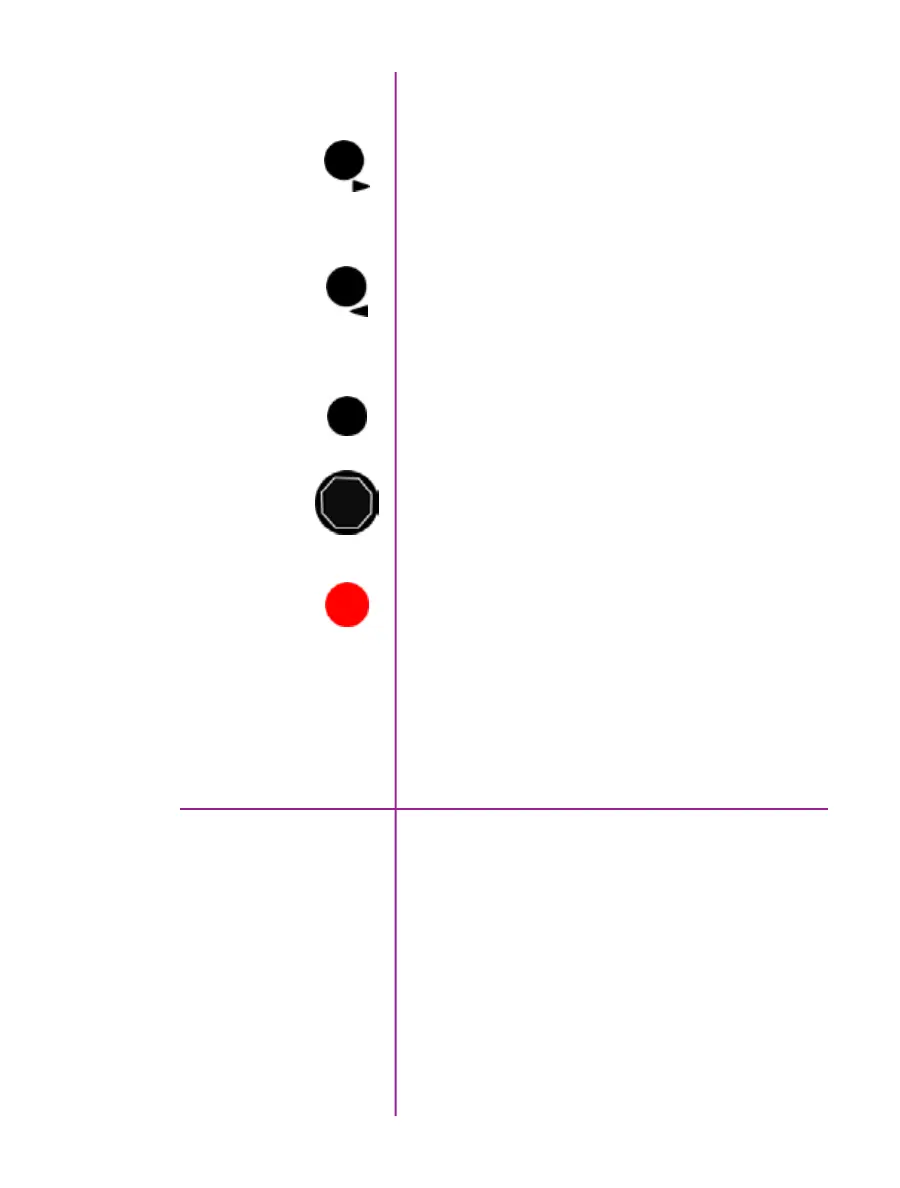

On-Camera Controls (OCC) provide full control of the
camera without the need to connect to a PC.
B-REF - when the camera is ‘Live’ and ‘Waiting for
Trigger’ this button initiates a Black Reference.
During ‘Playback’, it is the Play, Pause, or Fast Forward
(hold 1 sec) button.
Tools - when the camera is ‘Live’ and ‘Waiting for Trigger’
this button toggles between a Live image, and the Zoom,
and Threshold functions.
During ‘Playback’, it is the Rewind, Pause, or Fast Rewind
(hold for 1 sec) button.
Playback - used to select a cine for playback
(from internal memory / Phantom CineMag IV).
Menu - used to display the Setup menu and to navigate /
select recording parameters.
During ‘Playback’, it can be used to select, edit, save,
or scroll (scrub) through cines.
Trigger - used to:
• Switch from ‘Pre-trigger’ to ‘Waiting for Trigger’
• Trigger the camera (‘Loop’ mode)
• Start (hold 1 sec) / Stop recording
(‘Run/Stop’ mode)
• Return to ‘Live’ mode
