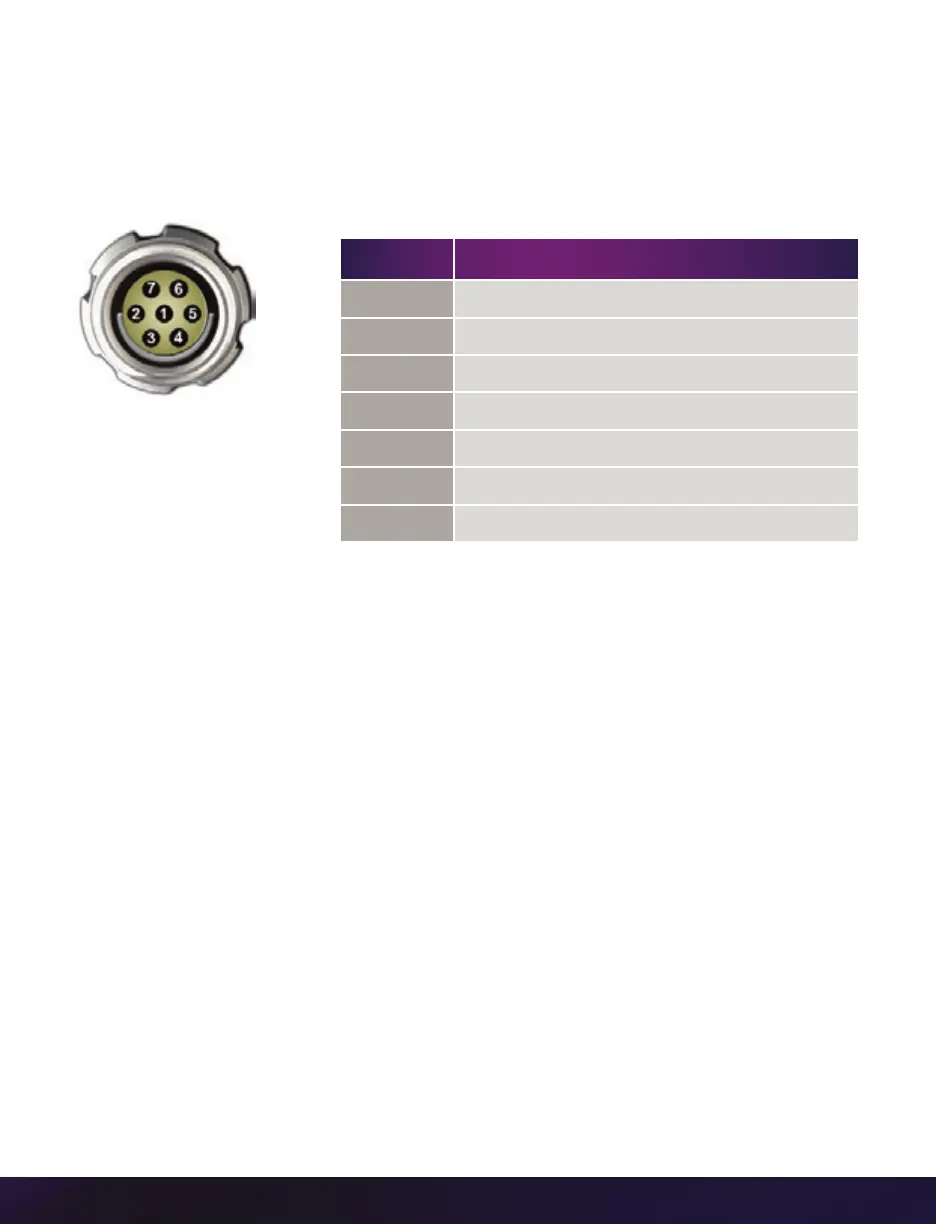

VIEWFINDER CONNECTOR
Component VF port
7-pin Fischer Part #S103.A057
PIN NOMENCLATURE/FUNCTION
1
GND / Power Ground
2
GND / Power Ground
3
PB HD Blue Channel
4
PB HD Red Channel
5
Y HD Green Channel
6
GND / Power Ground
7
+12V Positive 12VDC / 1.5 Amp
