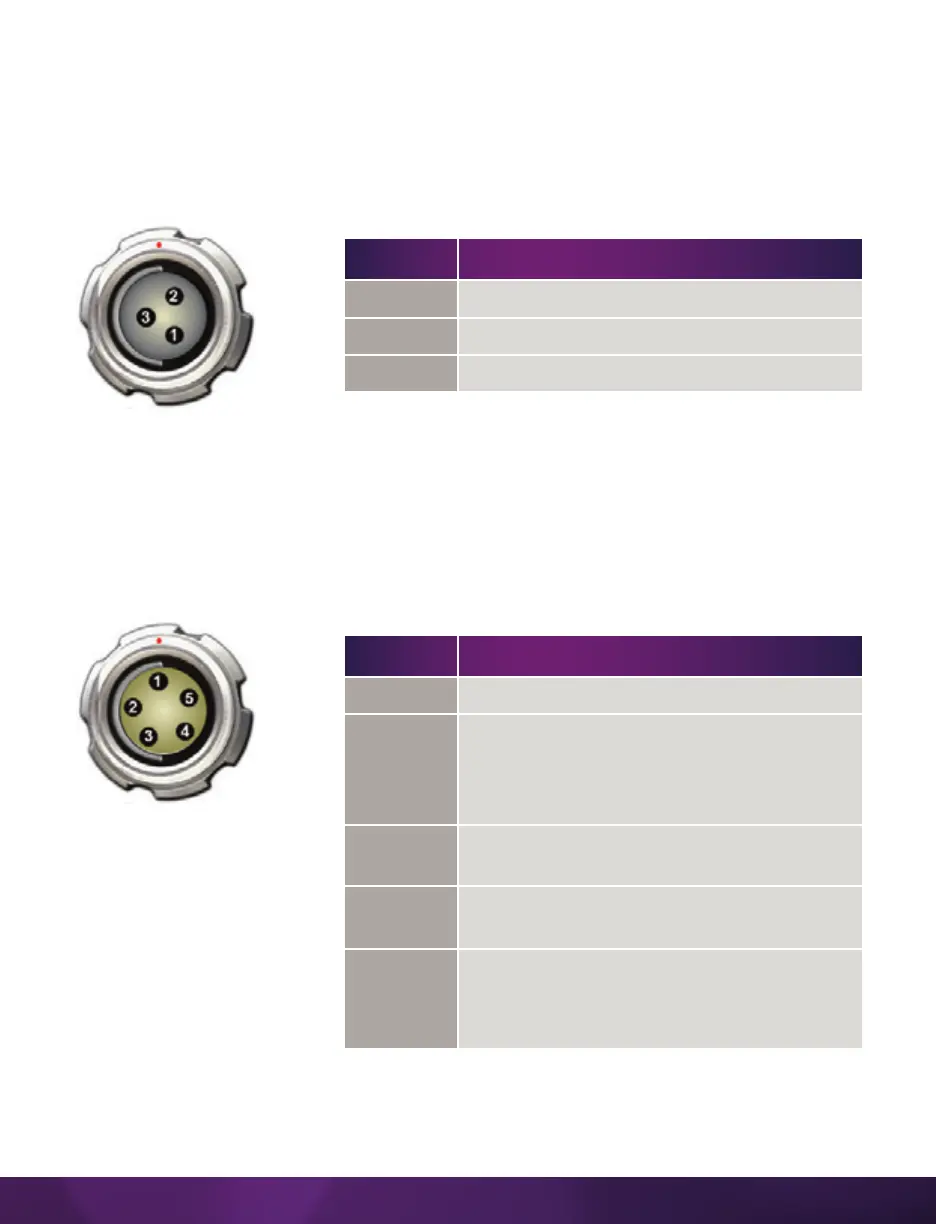

POWER CONNECTOR (PRIMARY/BATTERY BACKUP)
Power ports
3-pin Fischer Part #SS 104Z040-80
REMOTE CONNECTOR
Remote port (for Phantom RCU)
5-pin Fischer Part #S103.A054
PIN NOMENCLATURE/FUNCTION
1
+20–28VDC
2
CHGND / Chassis Ground
3
GND / Power Ground
PIN NOMENCLATURE/FUNCTION
1
+24VDC
2
PNG / The power input and the acquisition control
signals are isolated from the camera system ground.
This isolation is designed to avoid system ground loops
only and should not be subjected to high voltages.
3
XRXD / Receive Data (RS-232); +5V maximum,
normally limited to 50 feet (16 meters).
4
XTXD / Transmit Data (RS-232); +5V maximum,
normally limited to 50 feet (16 meters).
5
IOGND2 / RS232 Ground - All the serial ports
are not isolated (referred to system ground).
As such, they should only be connected to properly
earthed equipment.
