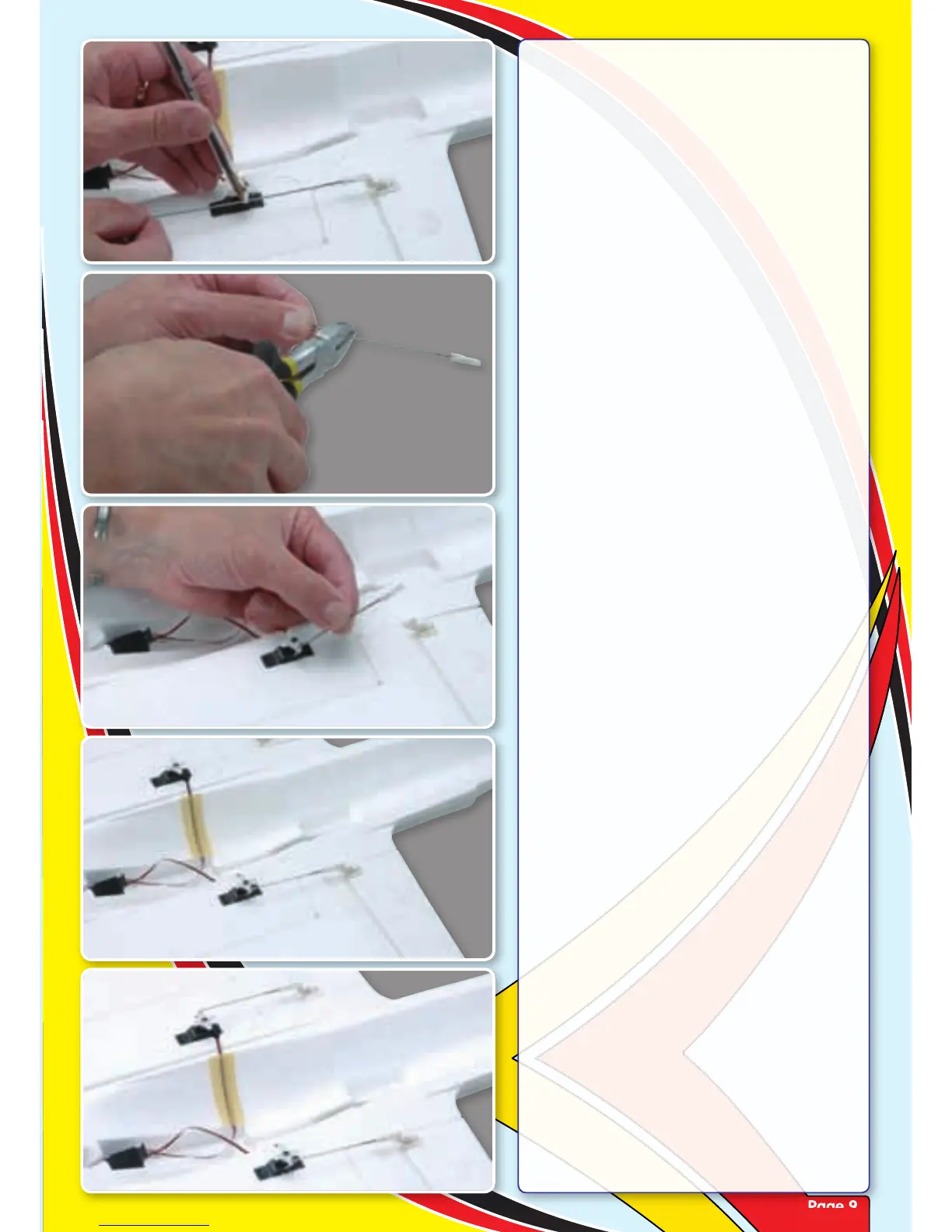

Step 26
Ensuring the servo and elevon are centred,
fit the clevis in its horn and mark the
position the pushrod crosses the outer hole
in the servo horn.
Step 27
Form a z-bend at the marked point and cut
off the excess pushrod wire as shown.
Step 28
Connect the prepared z-bend to the servo
horn’s outermost hole. This should be
approximately 10mm out from the servo’s
centre.
Step 29
Adjust the pushrod’s length by screwing the
clevis in or out until the elevon is centred.
Now push the clevis into the control horn
until it clicks.
Step 30
Complete the second elevon linkage using
the same procedure above.
