6CP100/50-10
3-1
SECTION 3: CONTROLS AND INDICATORS
Control Panel

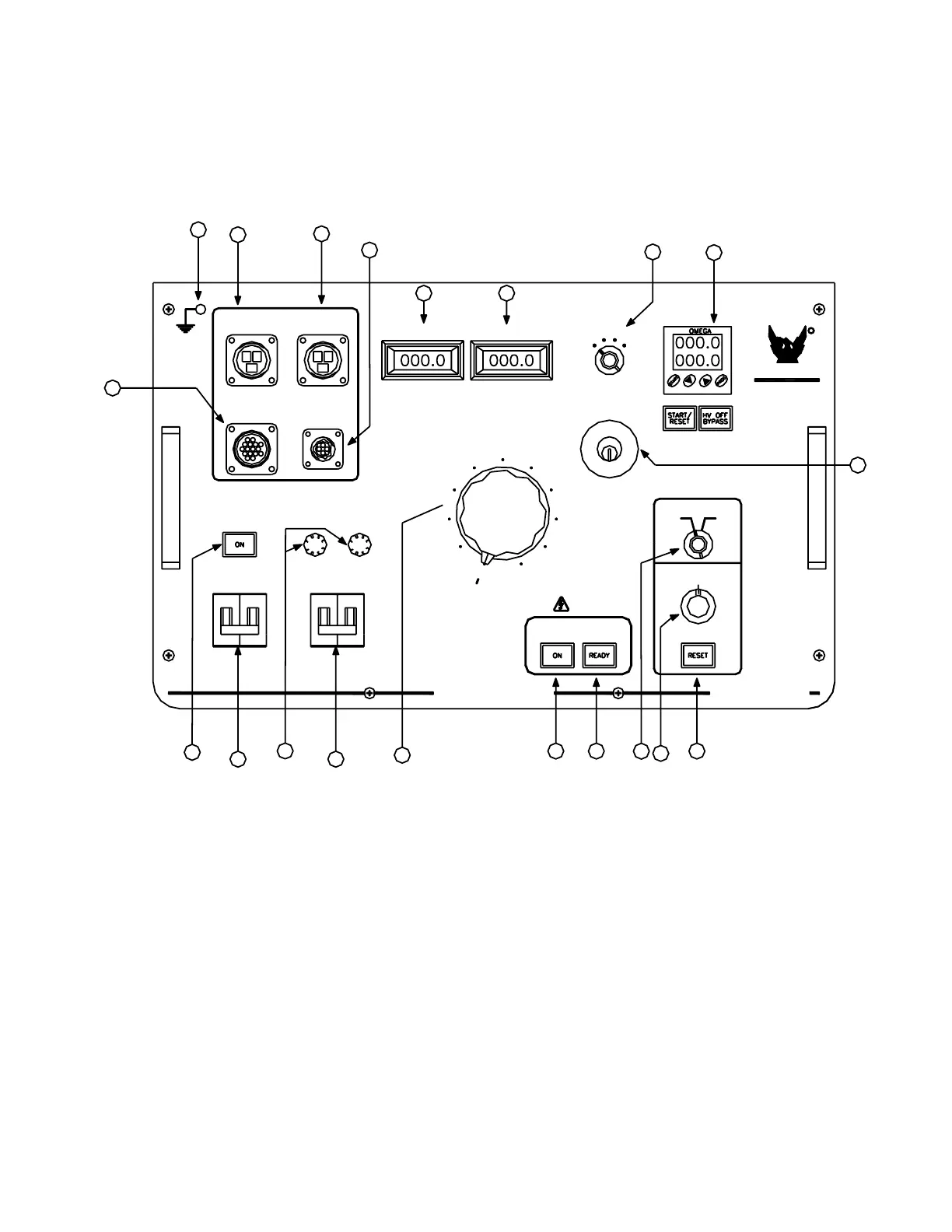

Figure 3-1
!
!
TECHNOLOGIES
PHENIX
The following descriptions are keyed to Figure 3-1:
1. Main Power Indicator.
2. Main Power Circuit Breaker
3. F1, F2
Control Power Fuse.
4. Transformer Power Circuit Breaker
5. Measurement Divider Switch
Selects proper overload and voltmeter circuitry for the H.V. output terminal being used. Match switch
setting to output being used on HV transformer.
6. Overload Trip
Use for presetting desired Overcurrent trip setting. Range approximately 10-110% of rated current.
