6CP100/50-10
4-2
INITIAL SET-UP--ELECTRICAL
1. Grounding Connections:
- Tie ground post on control case to ground stud on high voltage cylinder base using copper braid or
jacketed cable with current capacity equal to or greater than the input current.
- Tie ground stud on the high voltage cylinder base to facility ground using copper braid or jacketed
cable with current capacity equal to or greater than the input current.
2. Select the Standard or Guard current metering configuration (see following pages for explanation).
3. If the external interlock function is to be used, remove the jumper on the male cable end of the SX1
connector and connect the external security circuit at these points.
WARNING:
Ground the output of the High Voltage Transformer until set-up is complete! Be sure the Main
Power Circuit Breaker is in the OFF position before proceeding. This equipment should only be
operated by personnel familiar with High Voltage testing and safety procedures.

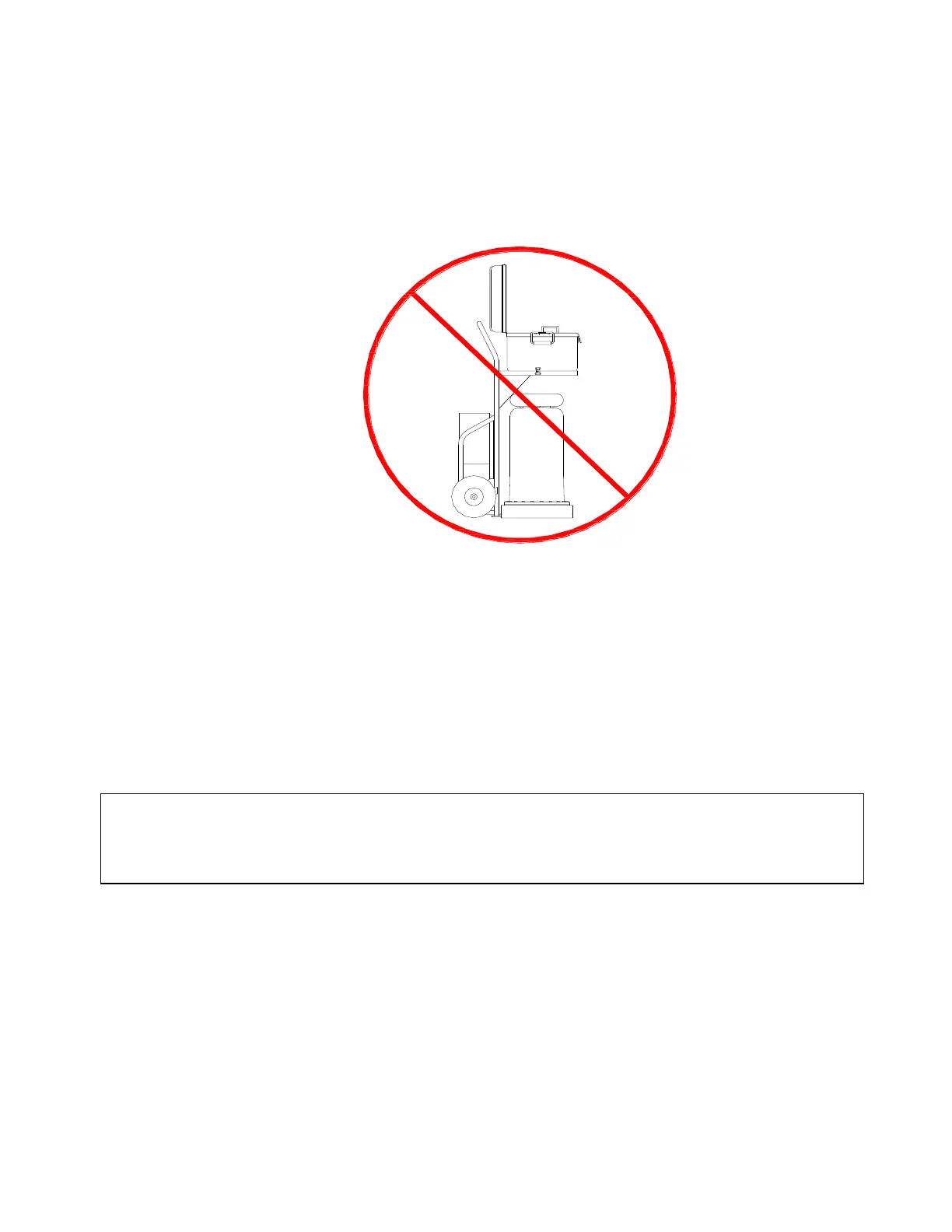

WARNING !
DO NOT OPERATE THE TEST SET
WITHOUT REMOVING HIGH-VOLTAGE
TRANSFORMER FROM THE CART.
THE HIGH-VOLTAGE TRANSFORMER
MUST BE POSITIONED A SAFE DISTANCE
FROM PERSONNEL AND OTHER OBJECTS.
