main battery. This wire is already equipped with an in-line safety device (1A). Over this line the voltage of the
main battery is measured and at the same time the battery monitor TBM is supplied. This line is put in at the
connector at pin No. 6 (+).
The fuse must not be inserted before finishing the whole installation!
- Put the plug of the provided 5-pole cable at the shunt and on the back of the TBM into the suitable
counterparts. When the line have to be extended or shortened, the contacts (1,2,3,4,5) with same number had
to be connected to each other.
- Install a positive measuring line from the TBM to the additional starter and/or further groups of batteries,
whose voltages are to be supervised. Insert the fuse holders in the plus wires of the measuring wires as close
to the battery as possible. Insert the fuse into the holder and check whether the display indicates values for the
additional batteries.
4. START UP
BRIEF INSTRUCTION:
1) Enter the value for charging voltage and thresholds for the batteries 2 & 3 in the SETUP.
We recommend following values: 13,6V for 12V
-plants and 27,2V for 24V
-plants.
The thresholds should be adjusted to 11,5 V for 12V-plants or 23V for 24 V-plants.
2) Charge your main battery until the TBM itself has recognized the capacity as 100%.
3) Adjust the capacity of your battery in the SETUP-Menu.
k
TANK & BATTERYMONITOR TBM
V1.1 - May 2010 Page 7

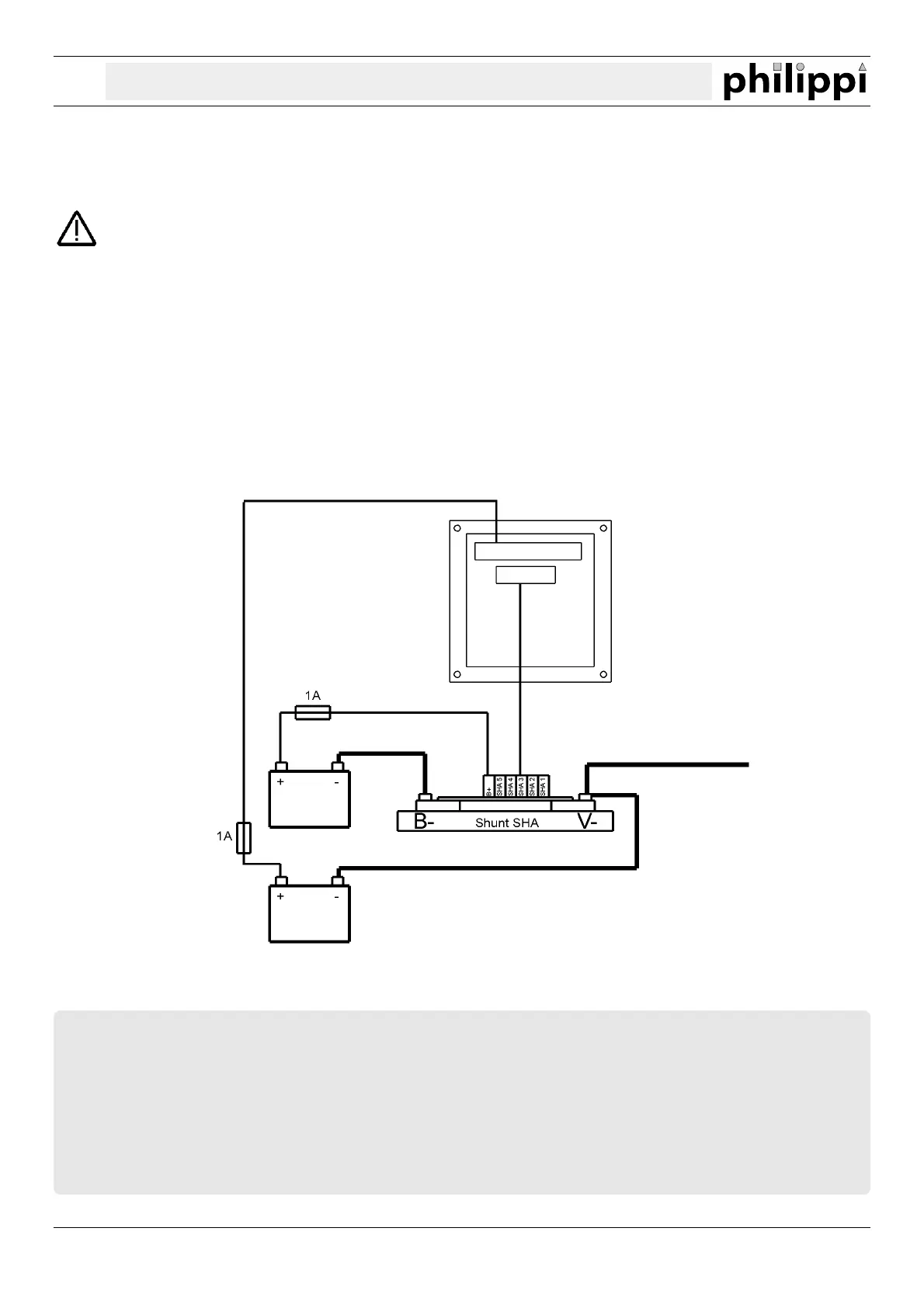

PRINCIPLE OF WIRING:
Main
battery
Minus pole (-)
consumer/charging systems
St
arter
battery
