Philips 14PV135 - Page 33

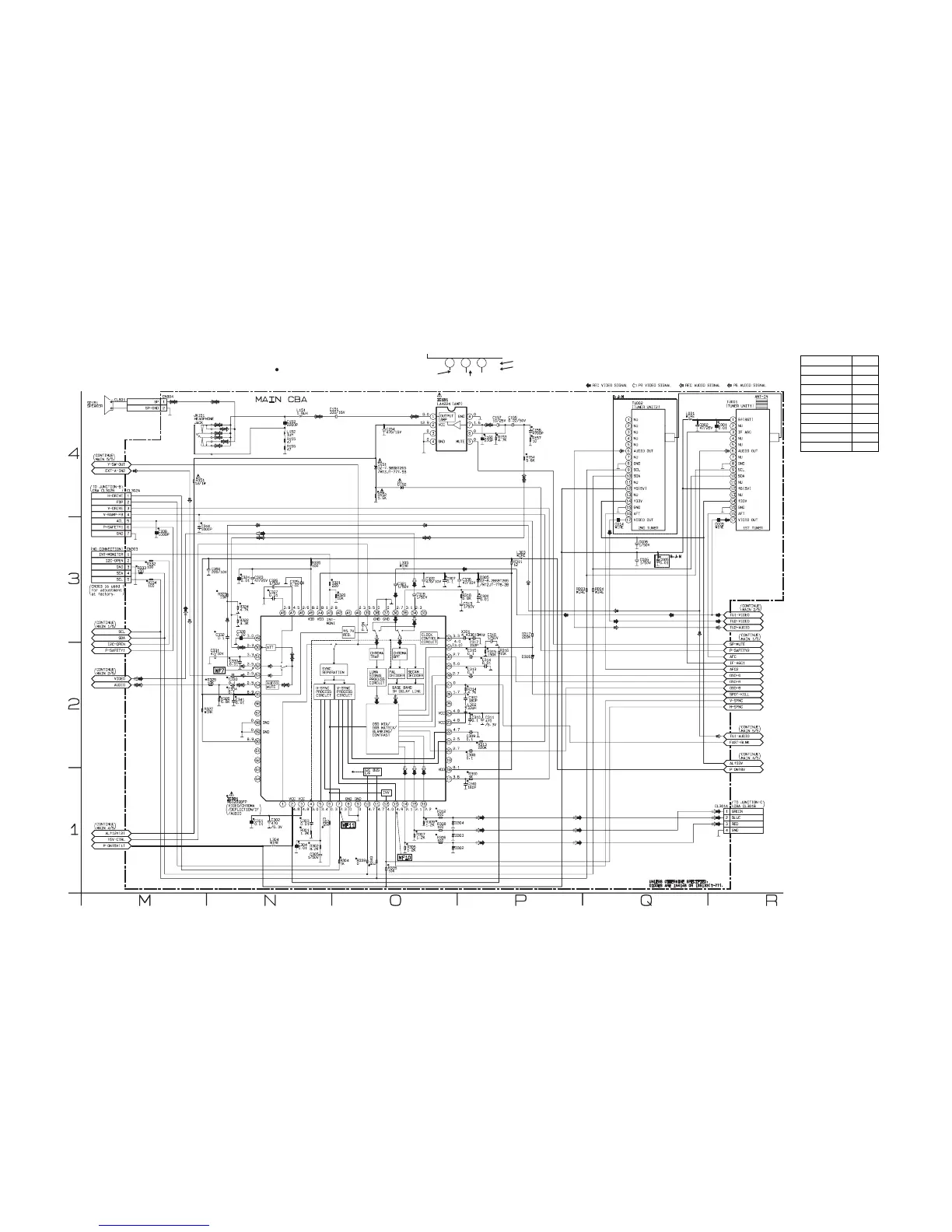

Main 3/5 Schematic Diagram
1-8-48
1-8-49
T6450SCM3
Voltage indications for PLAY and REC modes on
the Schematic Diagrams are as shown below:
1 2 3
5.0
(2.5)
~
5.0
THE SAME VOLTAGE FOR
BOTH PLAY & REC MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
PLAY MODE
REC MODE
“ “ = SMD
Comparison Chart of
Models and Marks
MODEL MARK
14PV135/07 E
14PV235/07 F
14PV385/07 G
14PV135/01 H
14PV235/01 I
14PV385/01 J
14PV135/58 K
14PV235/58 L
14PV385/39 M
