Philips 14PV135 - Page 79

2-4-16 T6450DA
[19]
Cap Belt
(S-8)
[19]
[20] Cap Belt
A

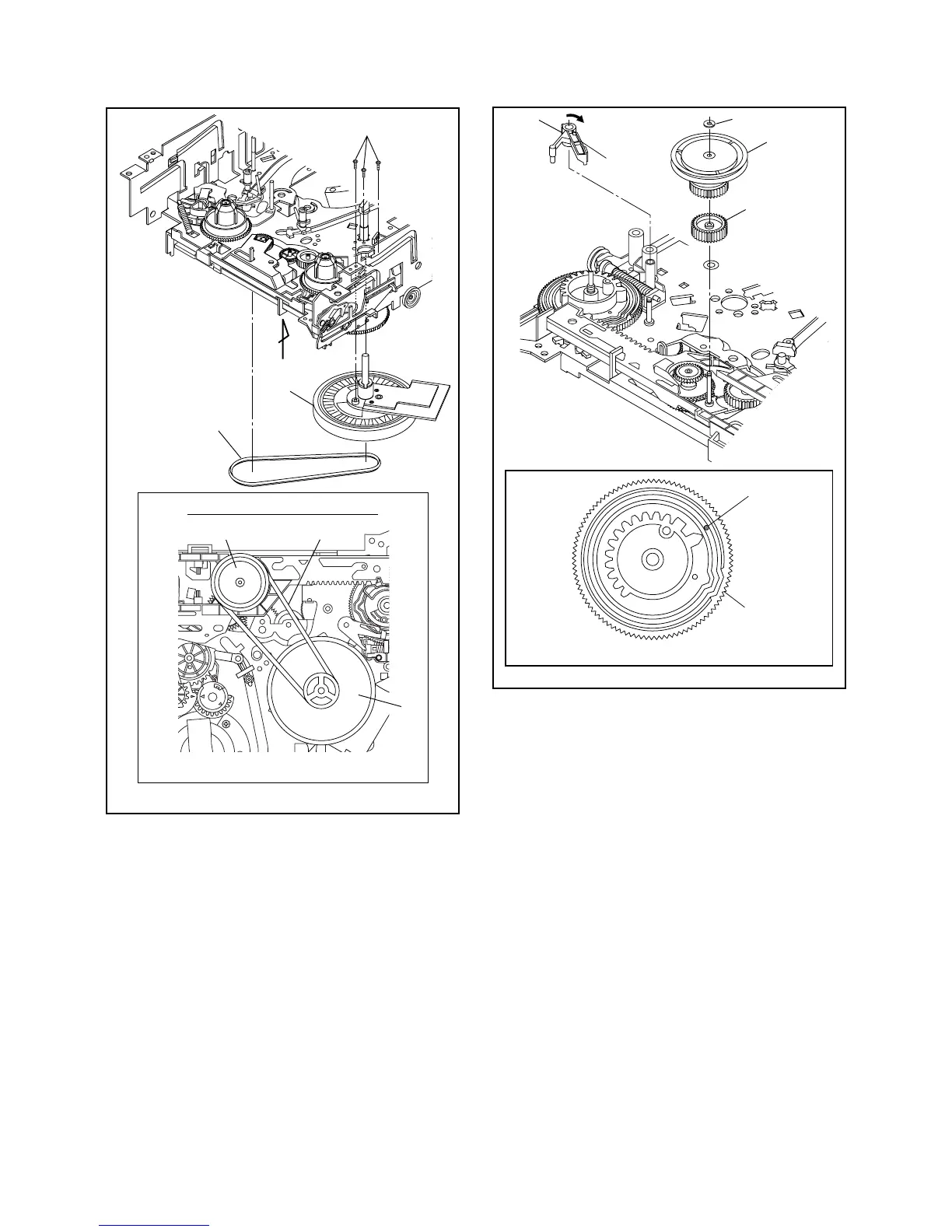

Installation position of Cap Belt
View for A
Fig. DM11H
(L-6)
[22]
[20]
(C-1)
[21]
[27]
Pin on [22]
Position of pin on [22]
turn
Fig. DM12H
