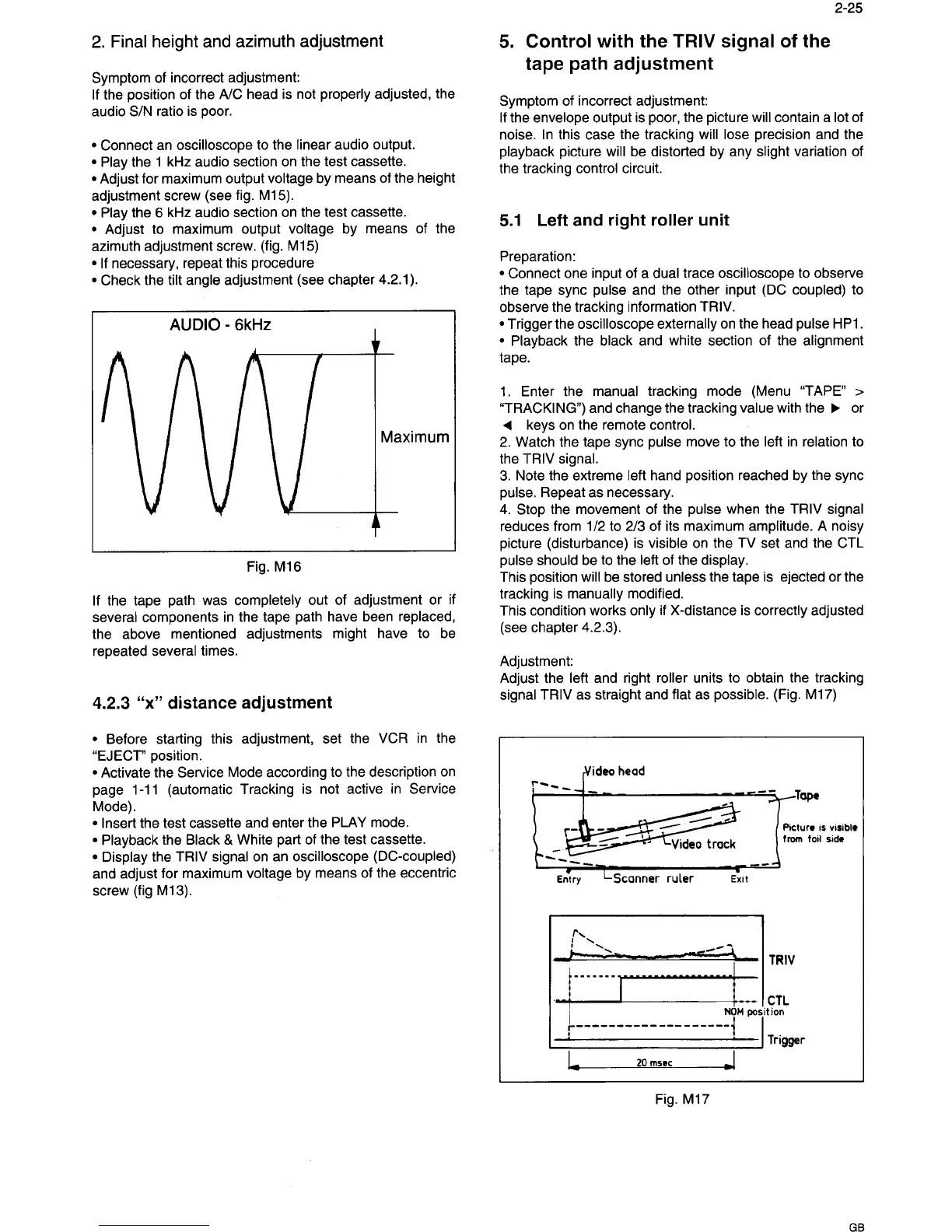

Philips 14PV210 - Control with the TRIV Signal of the Tape Path Adjustment; X Distance Adjustment; Left and Right Roller Unit
