Philips 201B - Physical Specifications and Pin Assignment

This monitor is ENERGY STAR
®
compliant. As an ENERGY STAR
®
Partner, PHILIPS has
determined that this product meets the
ENERGY STAR
®
guidelines for energy efficiency.
RETURN TO TOP OF THE PAGE
Physical Specifications
• Dimensions
201B10 - 19.0" x 18.7" x 18.4" / 482 x 476 x 467 mm (including base)
201B10 - 19.0" x 17.2" x 18.4" / 482 x 437 x 467 mm (excluding base)
• Weight 201B10 - 28.0 kg
• Power supply 90 - 264 VAC, 50/60Hz
• Temperature
(operating)
0° to 35°C / 32° to 95°F
• Temperature
(storage)
-25° to +65°C / -13° to +149°F
• Relative humidity 5% to 95%
* Resolution 1280 x 1024, standard size, contrast max., brightness 50%, 9300°, full white pattern.
* These information are subject to change without notice.
RETURN TO TOP OF THE PAGE
Pin Assignment

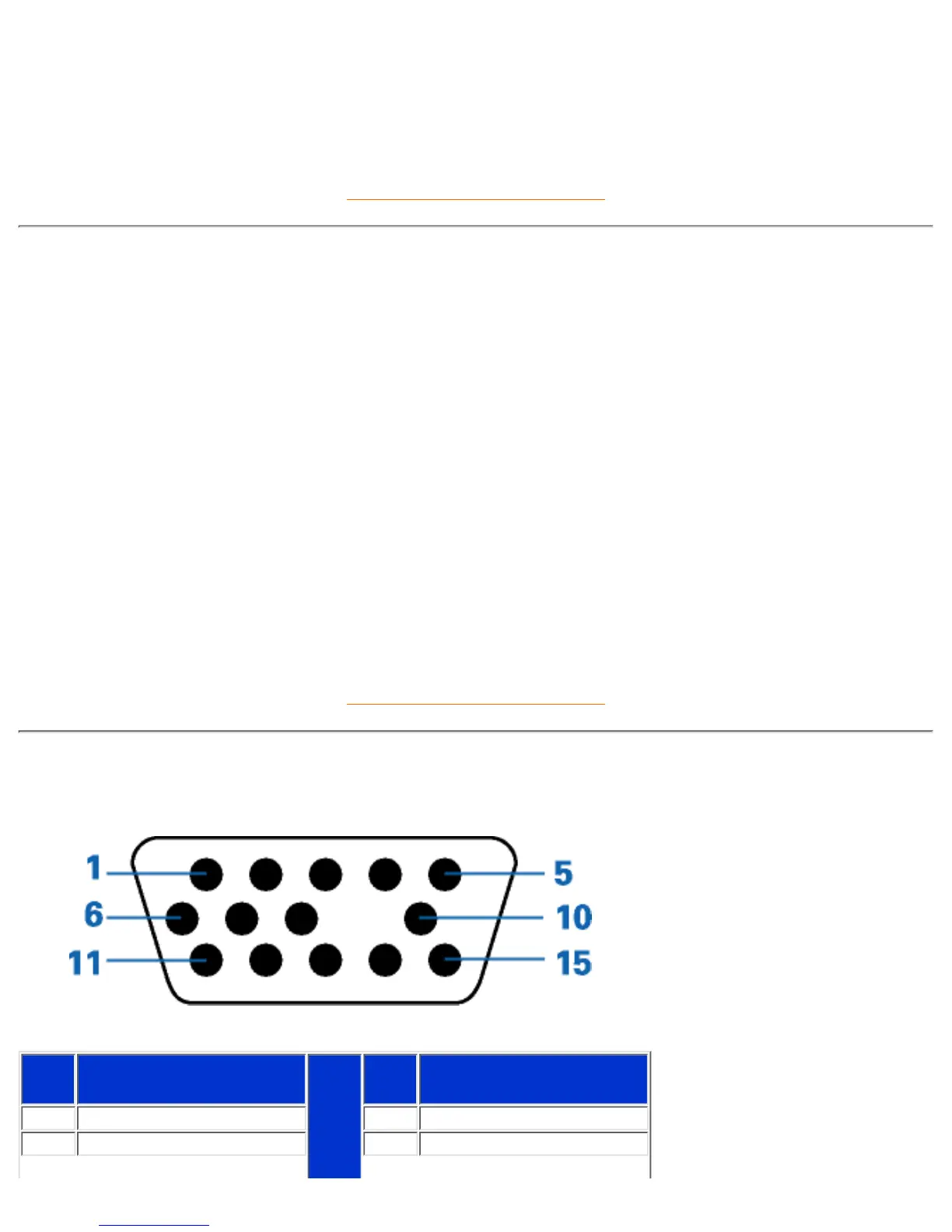

The 15-pin D-sub connector (male) of the signal cable (IBM systems):
Pin
No.
Assignment
Pin
No.
Assignment
1 Red video input 9 +5V
2 Green video input 10 Logic ground
