Philips 21PT5006 - Audio;Video Connections (Recording)

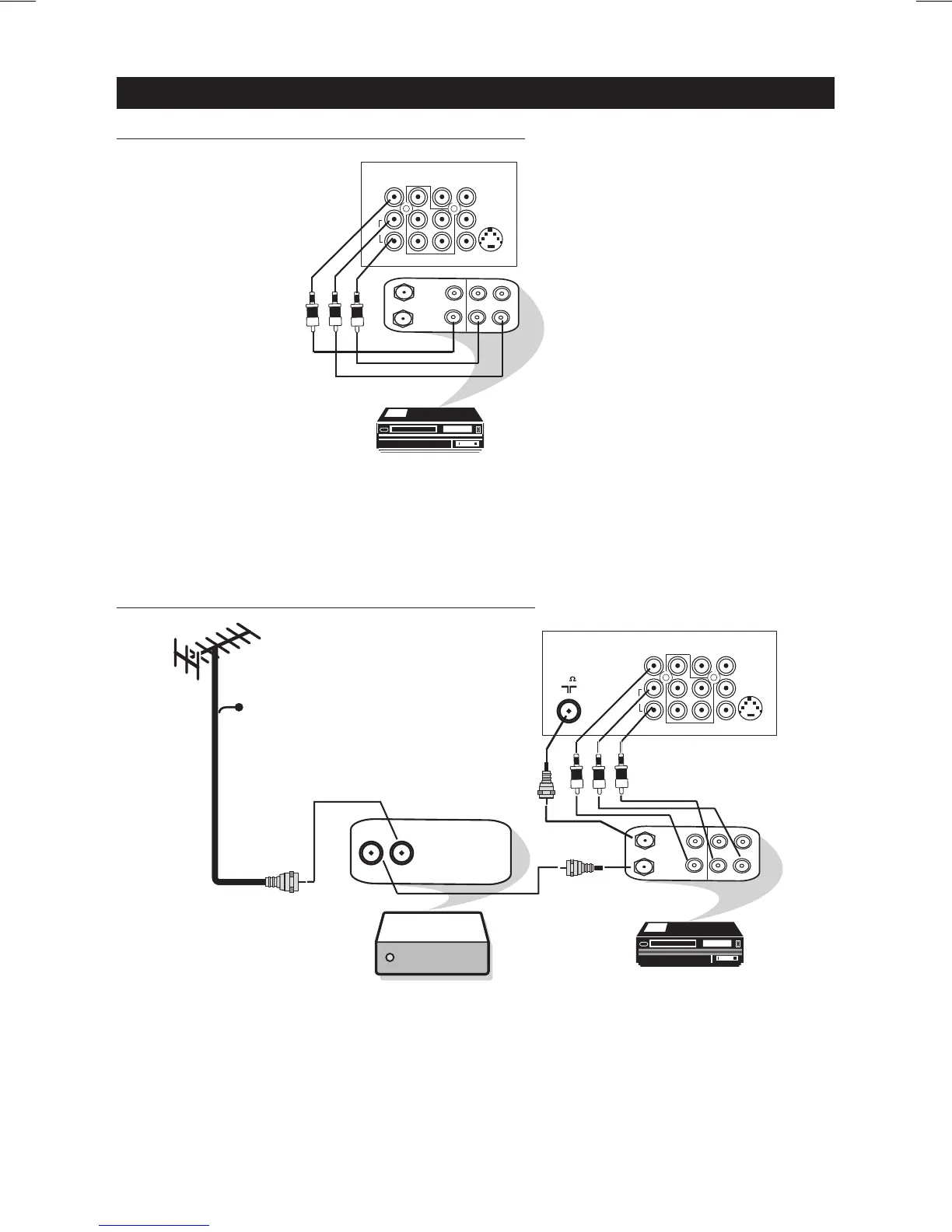

Connection for recording from the TV channel
AV sockets on
the rear of TV
VCR (with Video and
Audio input sockets)
– Connect the video and audio RCA cables from the INPUT sockets of the VCR to the
MONITOR OUT on the rear of the TV.
– To enhance the sound of your TV, connect the audio cables to an external audio
system instead of the VCR. For mono equipment, connect only the AUDIO L socket.
Connection for recording from cable TV to VCR
AUDIO/VIDEO CONNECTIONS (RECORDING)
ANTENNA
OUT
IN
OUT
IN
AUDIO
R
L
VIDEO
IN
OUT
L/Mono
R
S-VIDEO
VIDEO
AUDI
O
AV1 in AV2 inMonitor ou
t
COMPONENT VIDEO INPUT
Y
Pb
Pr
75
Cable INCable OUT
ANTENNA
OUT
IN
OUT
IN
AUDI
O
R
L
VIDEO
IN
OUT
L/Mono
R
S-VIDEO
VIDEO
AUDI
O
AV1 in AV2 inMonitor ou
t
COMPONENT VIDEO INPUT
Y
Pb
Pr
– Connect the RF cable from the OUTput of the set top box to the Antenna IN of the VCR.
From the VCR’s Antenna OUT, connect the RF cable to the Antenna socket on the rear of the
TV.
– Connect the video and audio RCA cables from the INPUT sockets of the VCR to the
MONITOR OUT on the rear of the TV.
AV sockets on
rear of TV
VCR (with Video and Audio
input sockets)
Set top box
Cable
8
