Separate DVD recorder and receiver

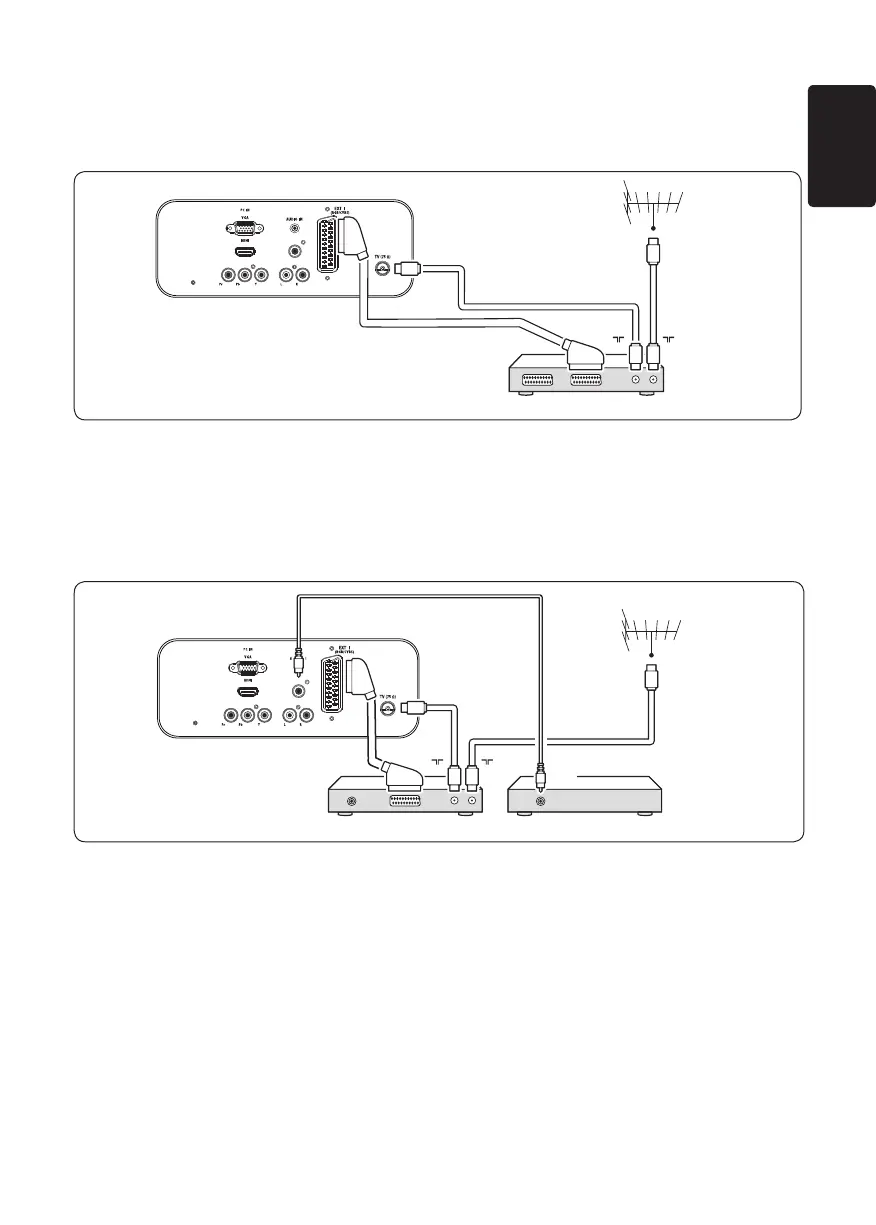

To receive analogue channels via antenna and record programmes on a separate DVD recorder
and receiver, connect three antenna cables and one SCART cables as illustrated:
EXT 3
DIGITAL AUDIO OUT
DVD Recorder / Receiver / Cable box
IN
OUT
DVD recorder and home theatre system
To receive analogue channels via antenna, output sound to a home theatre system and record
programmes on a DVD recorder, connect two antenna cables, one SCART cable and two digital
audio cables as illustrated:
EXT 3
DIGITAL AUDIO OUT
Home Theatre SystemDVD Recorder
DIGITAL
AUDIO
IN
IN
OUT
Note D
If using a home theatre or other audio system, the best synchronisation between images and
sound is achieved by connecting the audio signal from your playback device to the TV Monitor
rst.Subsequently,channeltheaudiosignaltothehometheatresystemoraudiodeviceviathe
audio connectors on the back of the Product.
To Next Page
