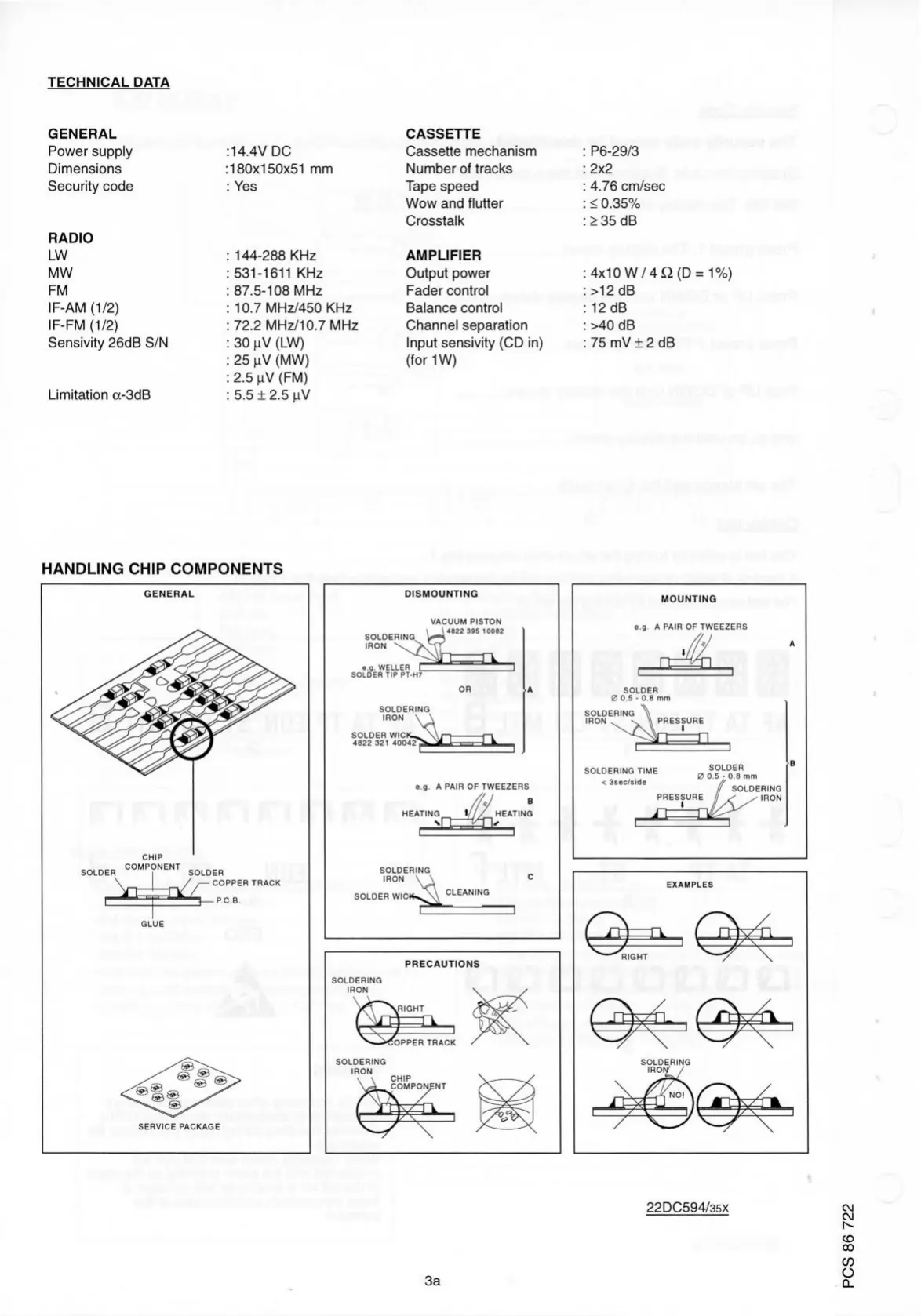

TECHNICAL DATA
GENERAL
Power supply
Dimensions
Security code
RADIO
LW
MW
FM
IF-AM (1/2)
IF-FM (1/2)
Sensivity 26dB
S/N
Limitation a-3dB
:14.4V DC
:180x150x51 mm
: Yes
: 144-288 KHz
: 531-1611
KHz
: 87.5-108 MHz
: 10.7 MHz/450 KHz
: 72.2 MHz/10.7 MHz
: 30
|iV (LW)
: 25 laV (MW)
: 2.5
|iV (FM)
: 5.5 ± 2.5
nV
CASSETTE
Cassette mechanism
Number
of tracks
Tape speed
Wow and flutter
Crosstalk
AMPLIFIER
Output power
Fader control
Balance control
Channel separation
Input sensivity (CD
in)
(for 1W)
P6-29/3
2x2
4.76 cm/sec
< 0.35%
>35dB
4x10W/4Q(D
= 1%)
>12dB ,
12 dB
>40dB
75mV±2dB
, , • .
HANDLING CHIP COMPONENTS
GENERAL
CHIP
SOLDER ^«^'PONENT
^^^^^^
-COPPER TRACK
-P.C.B.
SERVICE PACKAGE
DISMOUNTING
SOLDERING
IRON
VACUÜM PISTON
\2 395 10082
SOLDER TIP PT-H7
SOLDERING
IRON
SOLDER WICIC^
\\r-i r-i
4822 321 40042^J«_i=i=l=i=k.
e.g. A PAIR OF TWEEZERS
HEATING
t///_HEATING
SOLDERING
IRON
SOLDER WICI
PRECAUTIONS
SOLDERING
IRON
SOLDERING
IRON
MOUNTING
e.g. A PAIR OF TWEEZERS
• /
SOLDER
0
0,5 - 0.8 mm
SOLDERING „
IRON ^ ^ \E
SOLDERING TIME
SOLDER
0
0.5 - 0.8 mm
SOLDERING
PRESSURE
zyxwvutsrqponmlkjihgfedcbaZYXWVUTSRQPONMLKJIHGFEDCBA I ^ / IRON
3a
22DC594/35X
