Technical Specifications, Connections, and Chassis Overview
EN 2 LC4.3U AA1.
1. Technical Specifications, Connections, and Chassis Overview
Index of this chapter:
1.1 Technical Specifications
1.2 Connection Overview
1.3 Chassis Overview
Notes:
• Figures can deviate due to the different set executions.
• Specifications are indicative (subject to change).
1.1 Technical Specifications
1.1.1 Vision
Display type : LCD, IPS
Screen size :
- 26PF5320/28 : 26” (66 cm), 16:9
- 32PF5320/28 : 32” (82 cm), 16:9
Resolution (HxV pixels) :
- 26PF5320/28 : 1366 x 768
- 32PF5320/28 : 1366 x 768
Contrast ratio :
- 26PF5320/28 : 600:1
- 32PF5320/28 : 600:1
Light output (cd/m
2
):
- 26PF5320/28 : 500
- 32PF5320/28 : 500
Response time (ms) :
- 26PF5320/28 : 16
- 32PF5320/28 : 18
Viewing angle (HxV degrees) :
- 26PF5320/28 : 178x178
- 32PF5320/28 : 176x176
Tuning system : PLL
TV Colour systems : NTSC M/N
: PAL M/N
Video playback :
- 26PF5320/28, :
- 32PF5320/28, : NTSC M/N 3.58, 4.43
: PAL 6.0, M/N, B/G
Supported computer formats : VGA (640x480)
: MAC (640x480)
: SVGA (800x600)
: XVGA (1024x768)
: WXGA (1280x768)
Supported video formats : 640x480i - 1fH
: 720x576i - 1fH
: 640x480p - 2fH
: 720x576p - 2fH
: 1280x720p - 2fH
: 1920x1080i - 2fH
Presets/channels : 125 presets
Tuner bands : VHF
: UHF
: S-band
: Hyper-band
1.1.2 Sound
Sound systems : FM-mono
: FM-stereo B/G
: NICAM B/G, D/K, I, L
: AV Stereo
Maximum power (W
RMS
):
- 26PF5320/28 : 2 x 5
- 32PF5320/28 : 2 x 15
1.1.3 Miscellaneous
Power supply:
- Mains voltage (V
AC
) : 90 - 276
- Mains frequency (Hz) : 50 / 60
Ambient conditions:
- Temperature range (°C) : +5 to +40
- Maximum humidity : 90% R.H.
Power consumption
- Normal operation (W) : ≈ 96
- Stand-by (W) : < 1
Dimensions (WxHxD cm) :
- 26PF5320/28 : 80.45 x 47.7 x 22.2
- 32PF5320/28 : 92.4 x 55.0 x 22.2
Weight (kg) :
- 26PF5320/28 : 16
- 32PF5320/28 : 18.2
1.2 Connection Overview
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, and Ye= Yellow.
1.2.1 Side I/O connections

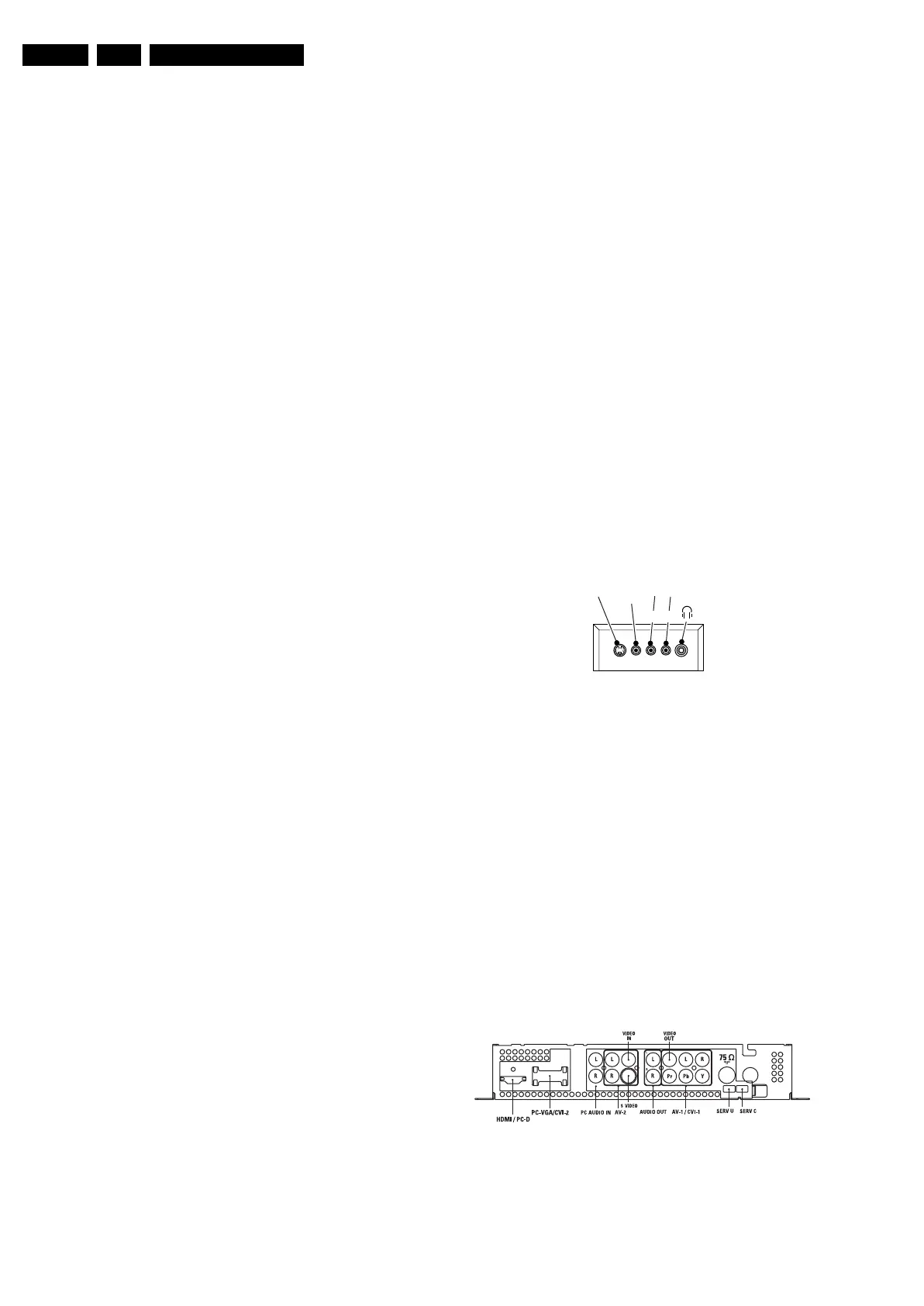

Figure 1-1 Side I/O connections
S-Video (Hosiden): Video Y/C - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
PP
/ 75 ohm j
4 - Video C 0.3 V
PP
/ 75 ohm j
Cinch: Video CVBS - In, Audio - In
Ye - Video CVBS 1 V
PP
/ 75 ohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
Mini Jack: Audio Head phone - Out
Bk - Head phone 32 - 600 ohm / 10 mW ot
1.2.2 Rear Connections
Figure 1-2 Rear I/O
Aerial - In
- - F-type (US) Coax, 75 ohm D
LR
AudioS-Video Video
E_14710_005.eps
210404
F_15270_071.eps
060705
