Technical Specifications, Connections, and Chassis Overview
EN 2 L03.1U AA1.
1. Technical Specifications, Connections, and Chassis Overview
Index of this chapter:
1.1 Technical Specifications
1.2 Connections
1.3 Chassis Overview
1.1 Technical Specifications
1.1.1 Reception
Tuning system : PLL
Color systems : NTSC M
Sound systems : Mono, or
: BTSC with SAP
A/V connections : NTSC M
Channel selections : 181 Presets/
Channels
: Full-Cable
IF frequency : 45.75 MHz
Aerial input : 75 ohm (F type), Coax
1.1.2 Miscellaneous
Audio output : Mono: 3 W rms
: Bisonic (mono): 2 x
1.5 W rms
: Stereo: 2 x 3 W rms
Mains voltage : 90 - 132 V (± 10 %)
Mains frequency : 50 / 60 Hz (± 5 %)
Ambient temperature : + 5 to + 45 °C
Minimum air pressure : 60 kPa (= 600 mBar)
Maximum humidity : 90 %
Power consumption : 36 W (14”) to
: 50 W (21”)
: 105 W (27”)
Standby Power consumption : < 3 W
1.2 Connections
1.2.1 Side Connections
Figure 1-1 Side Connections.
Headphone
Bk - Headphone, 3.5
mm 8 - 600 Ω / 4 mW ot
Audio / Video In
Ye - Video 1 Vpp / 75 ohm jq
Wh - Audio L Mono 0.2 Vrms / 10 kohm jq
Rd - Audio R Mono 0.2 Vrms / 10 kohm jq
1.2.2 Rear Connections

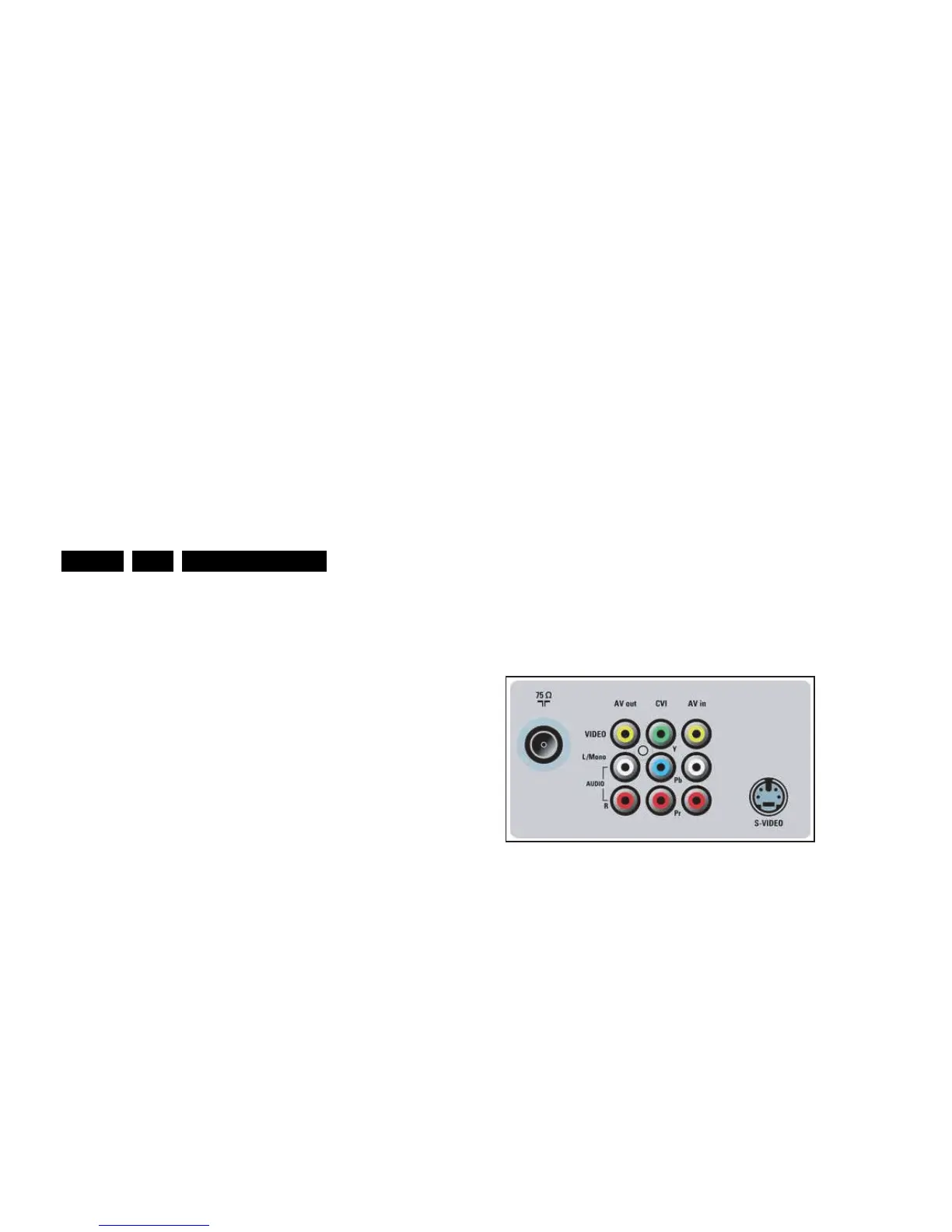

Figure 1-2 Rear Connections.
Cinch: AV Out
Ye - Video 1 Vpp / 75 ohm kq
Wh - Audio L (0.5 Vrms / 1 kohm) kq
Rd - Audio R (0.5 Vrms / 1 kohm) kq
Cinch: Video YPbPr - In
Gn - Video Y 1 V
PP
/ 75 ohm jq
Bu - Video Pb 0.7 V
PP
/ 75 ohm jq
Rd - Video Pr 0.7 V
PP
/ 75 ohm jq
Cinch: AV1 In
Ye - Video 1 Vpp / 75 ohm jq
Wh - Audio L (0.5 Vrms / 10 kohm) jq
Re - Audio R (0.5 Vrms / 10 kohm) jq
S-Video (Hosiden): Video Y/C - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
PP
/ 75 ohm j
4 - Video C 0.3 V
PP
P / 75 ohm j
FM Ant
1 - F type 75 ohm, coax. D
G_13933_015.eps
030506
G_13933_016.eps
030506
