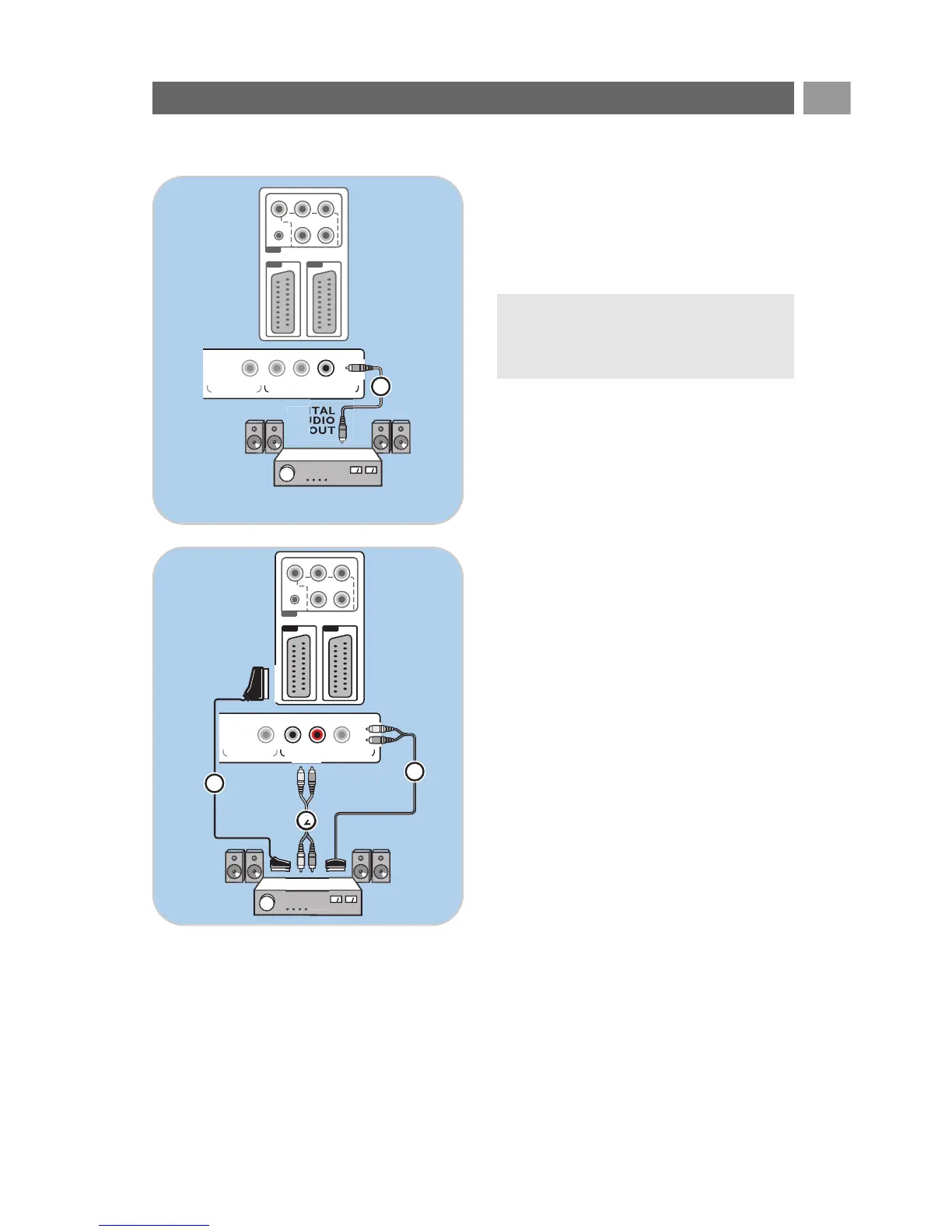

Connect a Home Cinema amplifier
Digital Home Cinema amplifier
< Connect a digital Home Cinema amplifier to
the
DIGITAL AUDIO OUT connector 1 at
the bottom of the TV.
Analogue Home Cinema amplifier
< According to the type of connector cables and
the connector input available on your Home
Cinema amplifier, connect your receiver to the
AUDIO OUT L and R connectors 3 or to
EXT1 or 2 2 at the bottom or the rear of
the TV.
Tip: to avoid visible delay between picture
and sound, use this
DIGITAL AUDIO OUT
connector to connect your Home Cinema
amplifier.
