Philips 32PFL3007 - Page 11

Mechanical Instructions
EN 11TPM9.1AL LA 4.
2012-Jun-15
back to
div. table

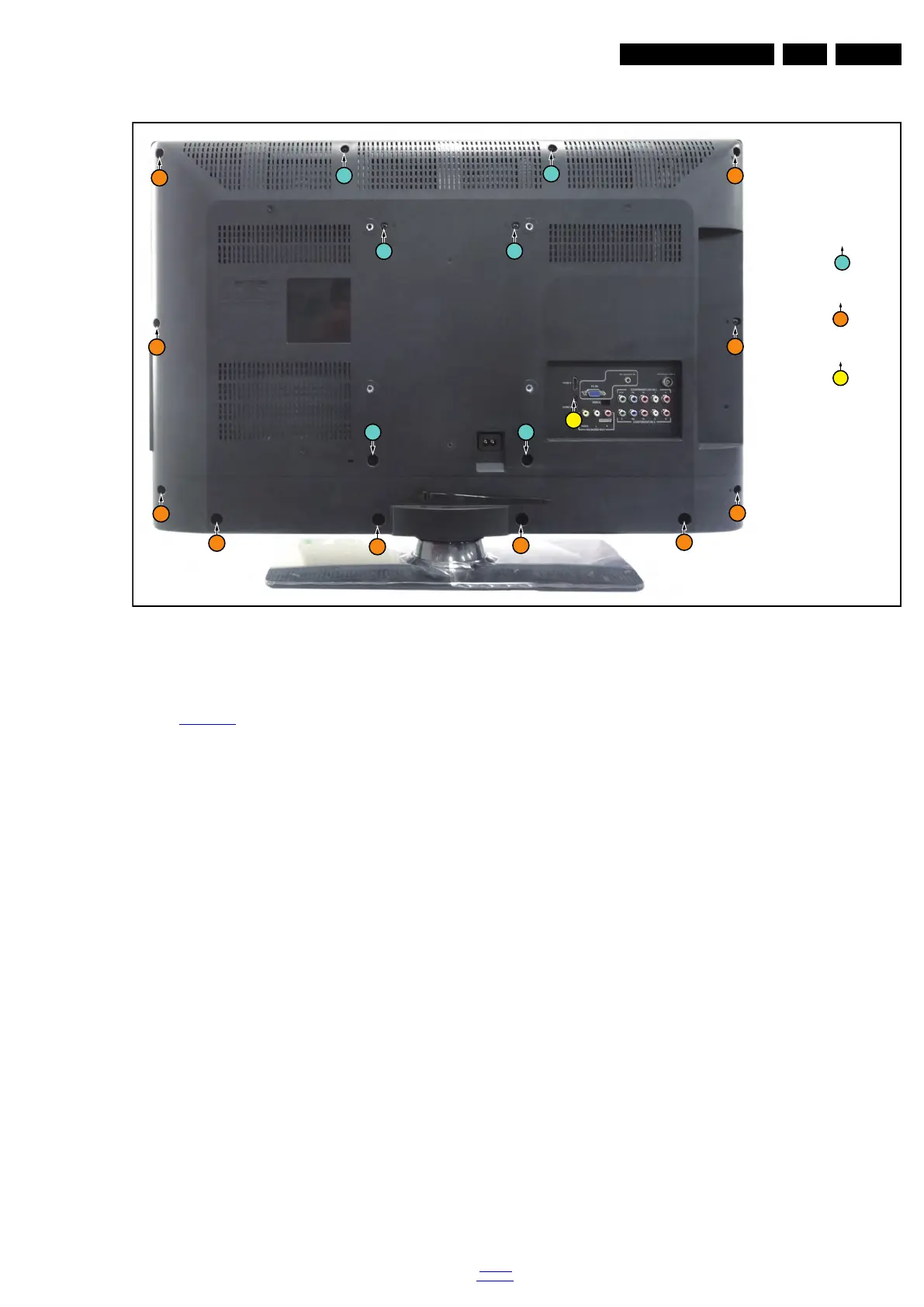

Figure 4-3 Rear cover removal
4.3.2 Stand
Refer to Figure 4-4
for details.
1. Remove fixation screws [4] that secure the base assembly,
pull the base assembly downwards away from the catches.
Do not release the two screws in the middle of the stand.
19330_102_120612.eps
120612
1
M4 × 8
Q4 × 16
1
1
1
1
1 1
2
2
2
2
2
2
2
2
2
2
2
Q3 × 8
3
3
