9.2 Wiring diagram `3000 42"
19330_401_120608.eps
120611

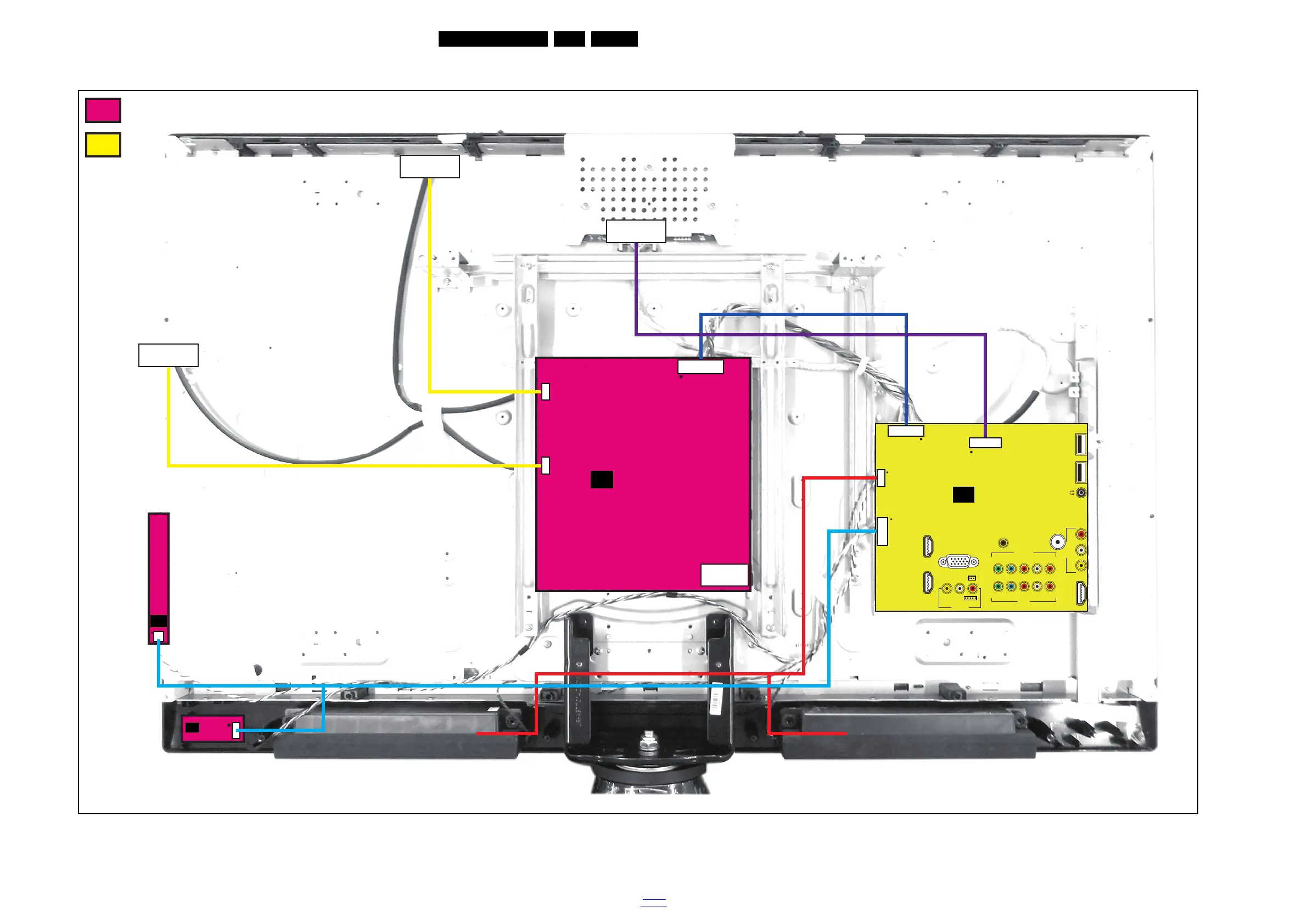

WIRING DIAGRAM 42" (3000)
Board Level Repair
Component Level RepairComponent Level Repair
Only for authorized workshopsOnly for authorized workshops
MAIN POWER SUPPLY
(1054)
A
CN901
L
N
LOUDSPEAKERLOUDSPEAKER
(1185)(1185)
LOUDSPEAKERLOUDSPEAKER
(1185)(1185)
IR/LED BOARD
(1056)
J
5P
KEYBOARD CONTROL (1057)
SSB
(1053)
B
13P
CN01
4P
CN01
TV ANTENNA
Y/V Pb Pr L R
Y Pb Pr L R
CVI 2/AV
AV OUT
VIDEOLR
CVI 1
AUDIO
VGA
HDMI 2
HDMI 1
SERV.U
HDMI 3VIDEO
AV IN 1
LR
USB 1
USB 2
to panel
to panel
CN801 CN802
CN902
13P
CN701
4P
CN601
13P
CN401
to panel
40P
CN408
Component Level Repair
Only for authorized workshops
E
LOUDSPEAKER
(1185)
LOUDSPEAKER
(1185)
