Mechanical Instructions
EN 10 TPM6.1E LA4.
2011-Jun-10
back to
div. table
4. Mechanical Instructions
Index of this chapter:
4.1 Cable Dressing
4.2 Service Positions
4.3 Assembly/Panel Removal (Thriller styling)
4.4 Assembly/Panel Removal (Berlinale styling)
4.5 Set Re-assembly
Notes:
Figures below can deviate slightly from the actual situation,
due to the different set executions.
4.1 Cable Dressing

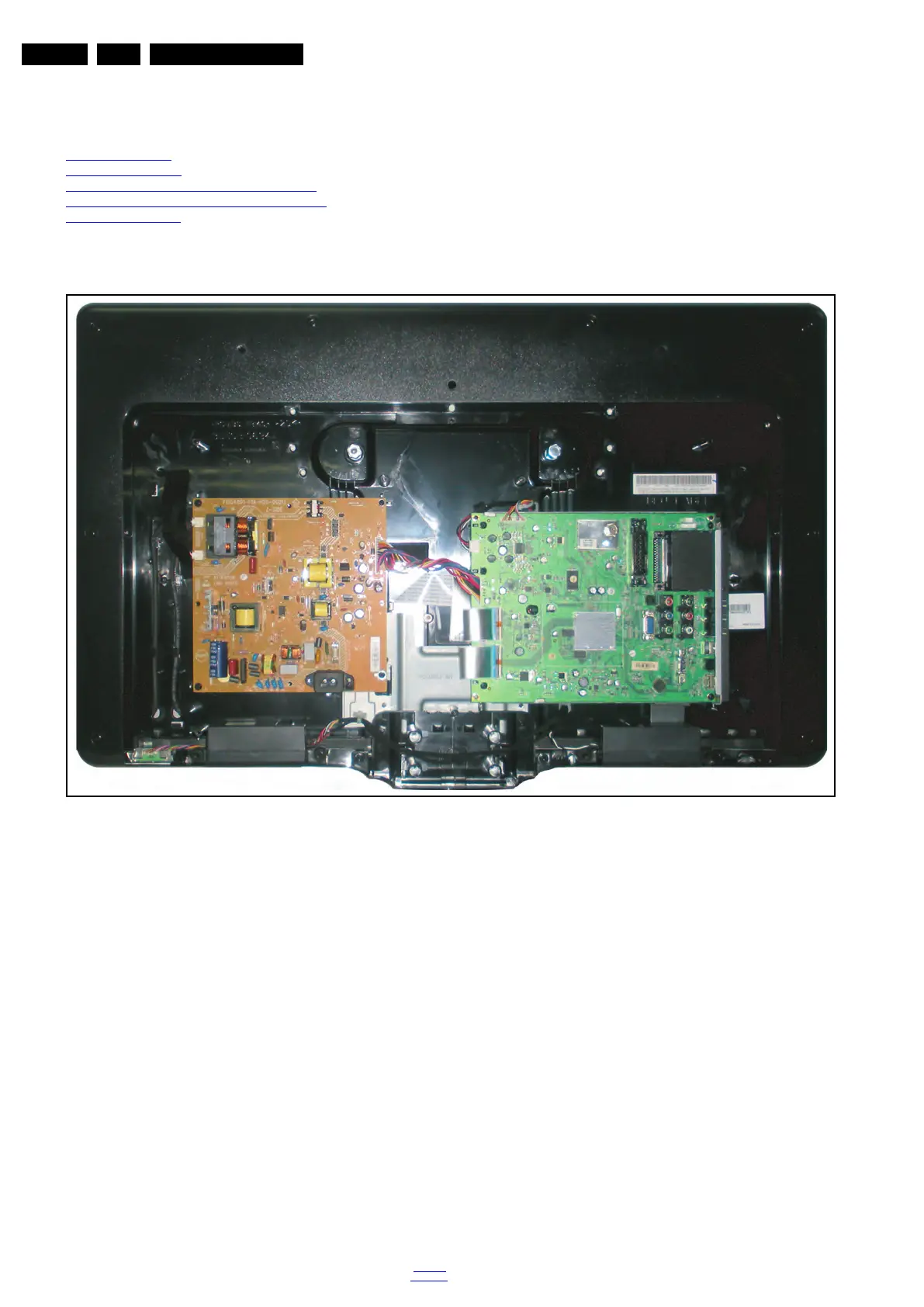

Figure 4-1 Cable dressing (32" Thriller styling)
19080_100_110302.eps
110302

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Philips 32PFL5606H/12 and is the answer not in the manual?

Philips 32PFL5606H/12 Specifications

General IconGeneral
Screen Size32 inches
Display TechnologyLCD
HDMI Ports3
USB Ports1
Contrast ratio (typical)1000:1
Brightness300 cd/m²
Supported video modes1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Component video (YPbPr/YCbCr) in1
SCART ports quantity1
Common interface (CI)Yes
RMS rated power20 W
Teletext functionYes
Teletext pages1000
Refresh Rate60 Hz
Smart TVNo
Built-in Wi-FiNo
Energy Efficiency ClassA
Screen format adjustments4:3, 16:9, Zoom
Resolution1920 x 1080 (Full HD)
