Connections

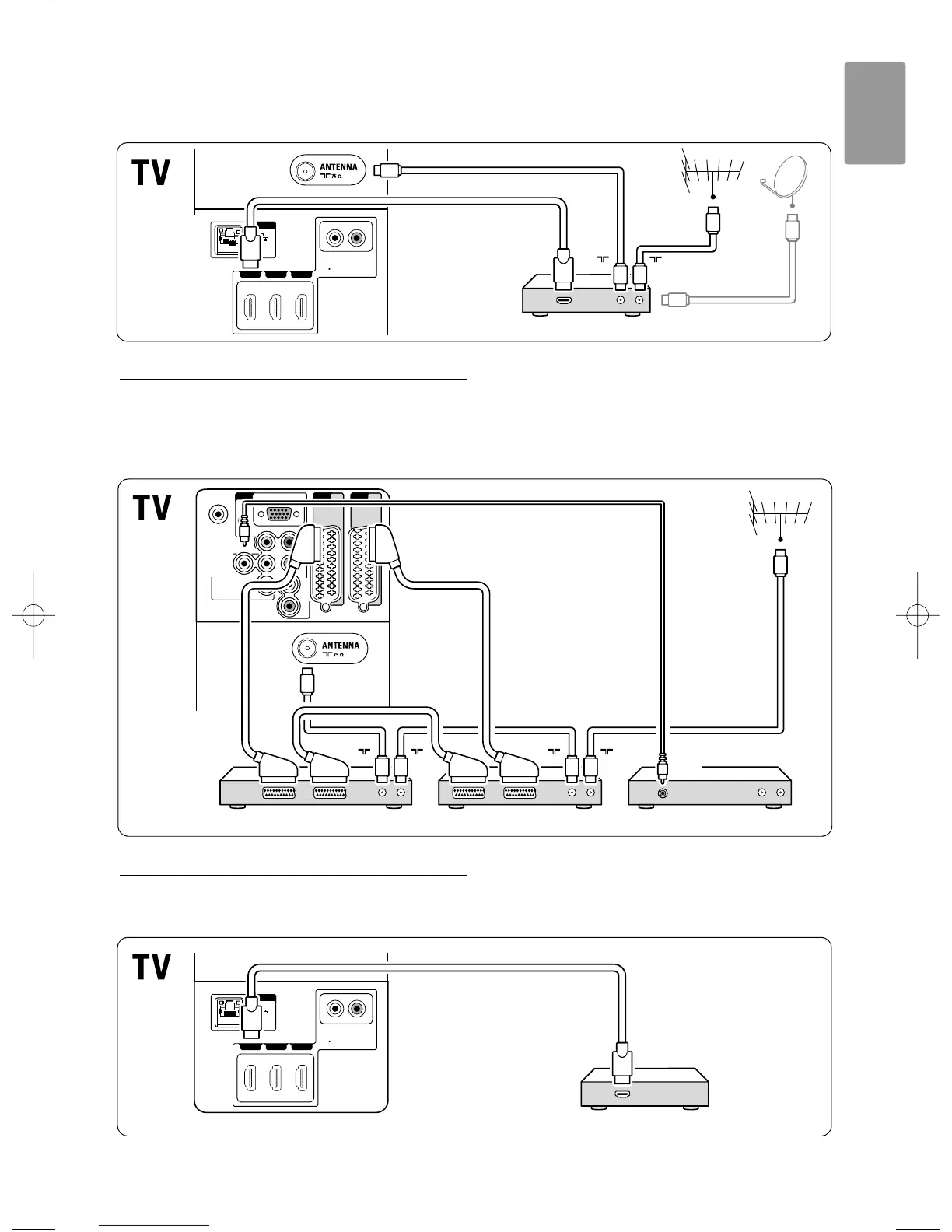

7.4.7 HD Digital receiver / HD satellite
receiver
Use an HDMI cable and 2 antenna cables.
7.4.8 DVD-R, Home Theatre System and
Digital receiver
Use 3 scart cables, 3 antenna cables and 1 audio
(cinch) cable.
7.4.9 Blu-ray Disc player
Use an HDMI cable.
