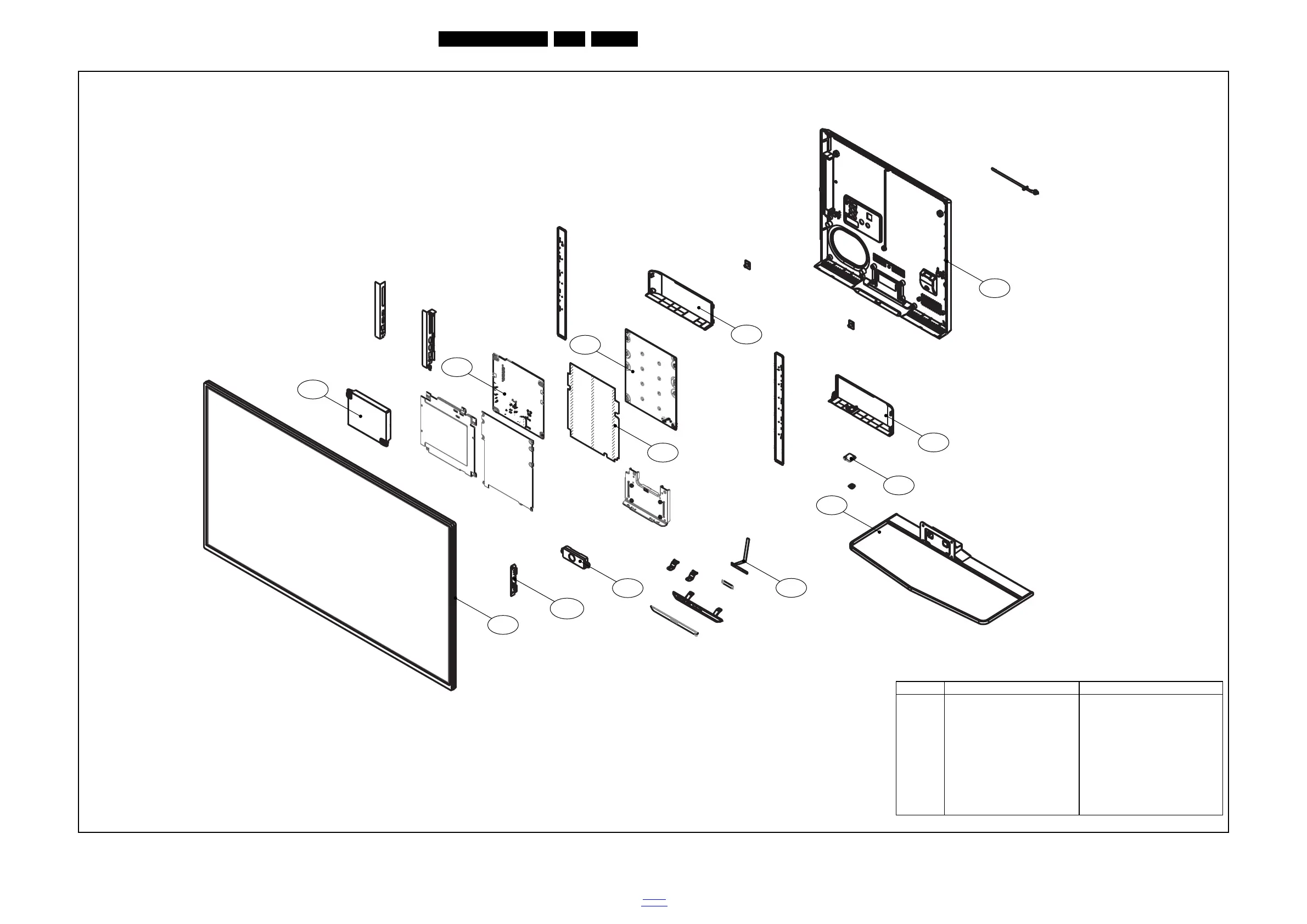

11.20 6400 series 48"
19614_804.eps
6400 series 48"
Pos No. Description Remarks
0040 Rear cover
0050 Stand Assy
0066 Cover speaker
0095 V0 SHEET
1050 Display panel
1053 Panel SSB
1054 Power Supply Unit
1056 IR/LED panel
1057 Keyboard control panel
1176 Remote control Not displayed
1185 Speaker_R
1186 Speaker_Sub woofer
WiFi01 WiFi_USB
FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9
