11.31 7300/7500 series 55"

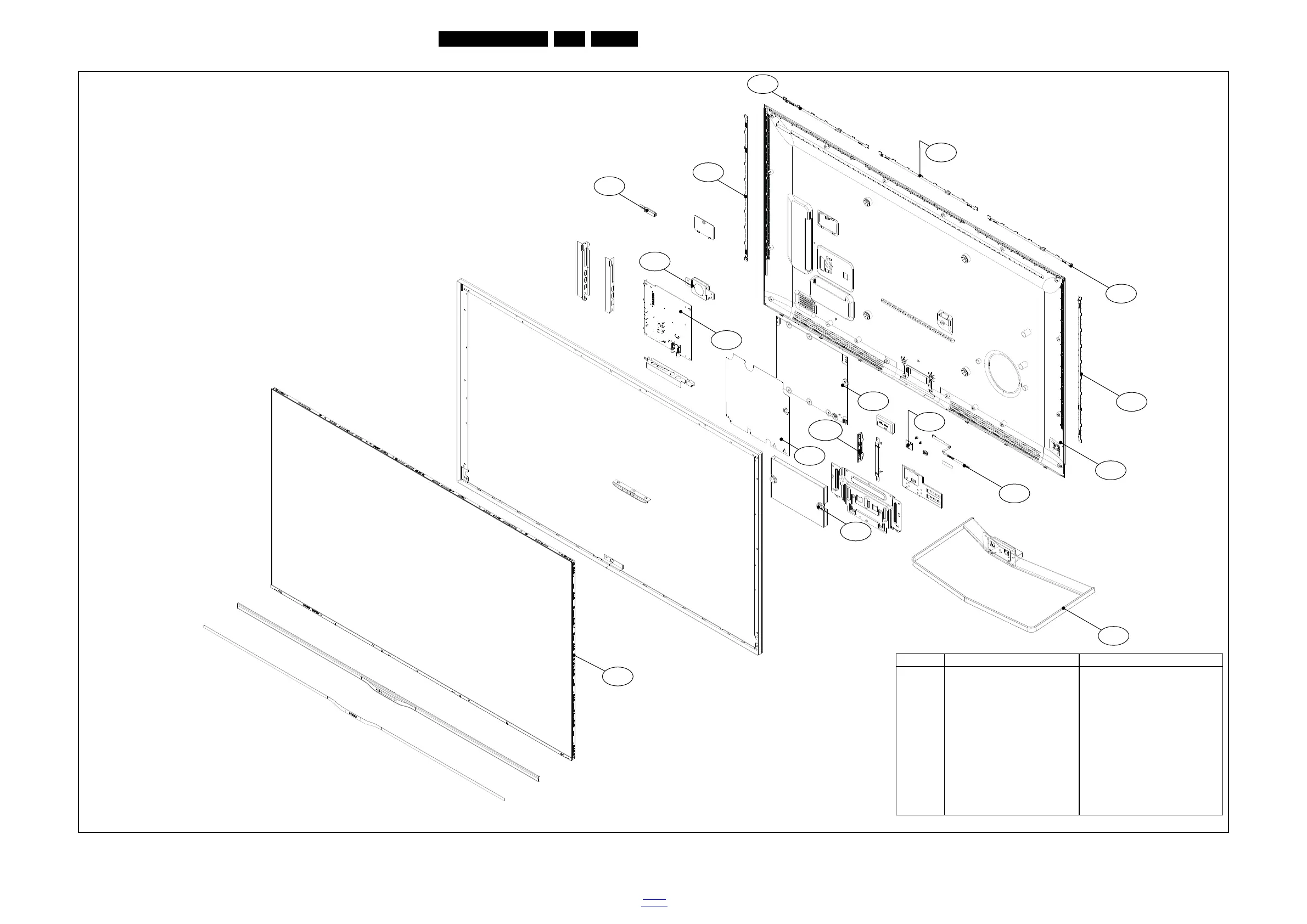

19614_802.eps
7300/7500 series 55"
Pos No. Description Remarks
0040 Rear cover
0050 Stand Assembly
0095 V0 SHEET
1050 Display panel
1053 Panel SSB
1054 Power Supply Unit
1056 IR/LED panel
1057 Keyboard control panel
1062 LED Module
1070 LED Module
1071 LED Module
1076 RF4CE Module Assy
1176 Remote control Not displayed
1185 Speaker_L
1186 Speaker_Sub woofer
WiFi01 WiFi_USB
FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9
0040
1056
1057
1070
0050
1062
1071
1054
0095
1053
1186
1050
1185
1076
1062
1071
WiFi01
