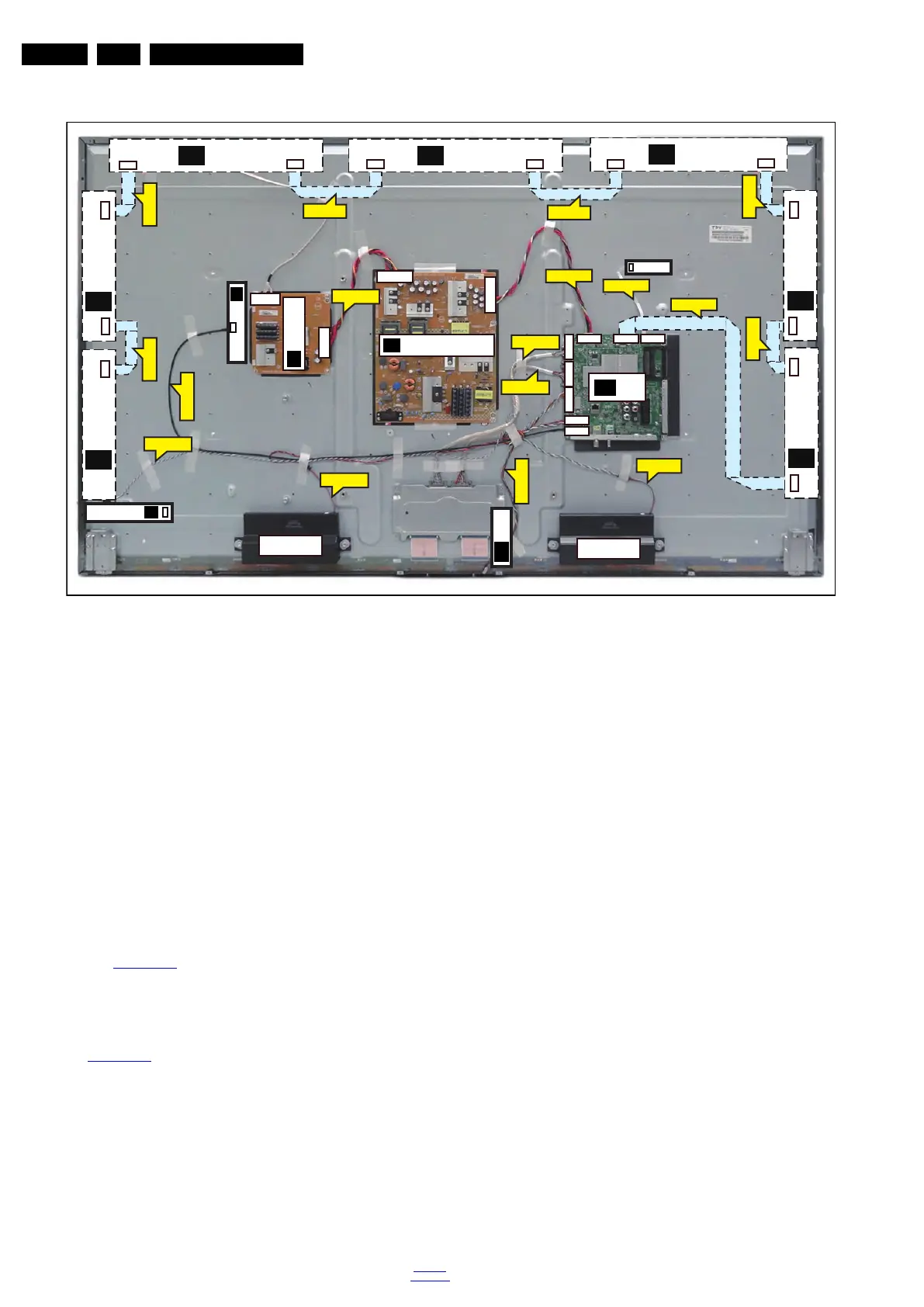

Figure 4-28 Cable dressing (65" 7500 series)
4.2 Service Positions
For easy servicing of a TV set, the set should be put face down
on a soft flat surface, foam buffers or other specific workshop
tools. Ensure that a stable situation is created to perform
measurements and alignments. When using foam bars take
care that these always support the cabinet and never only the
display. Caution: Failure to follow these guidelines can
seriously damage the display!
Ensure that ESD safe measures are taken.
4.3 Assembly/Panel Removal ( for 32"/42"/47"
6500 series & 40" 6400 series & 40"/48"
6600/6700 series)
Instructions below apply to the 40PFH6609/88, but will be
similar for 32"/42"/47" 6500 series & 40" 6400 series & 40"/48"
6600/6700 series models.
4.3.1 Rear Cover
Refer to Figure 4-29
for details.
Warning: Disconnect the mains power cord before removing
the rear cover.
1. Remove fixation screws [1] that secure the base assy, pull
out the base assy from the set. Then remove the fixation
screws [2], [3] that secure the rear cover. Refer to
Figure 4-29
for details.
2. Gently lift the rear cover from the TV. Make sure that wires
and cables are not damaged while lifting the rear cover
from the set.
