6.3.2 Power layout SSB / M+P BOARD
6.3.2.1 715G8659M BOARD (For 4232 & 4132 & 4032 & 4022 Series)

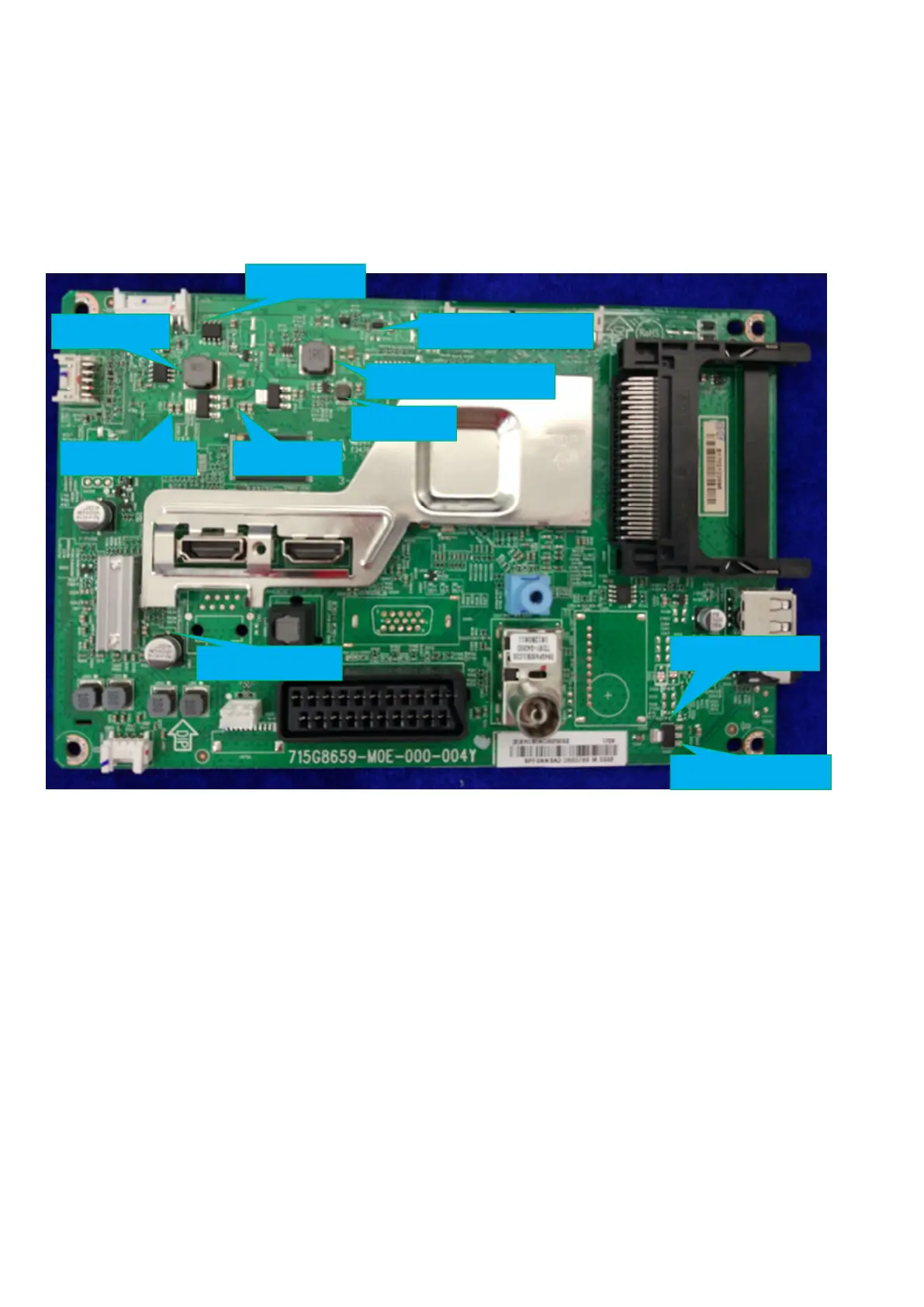

Power SSB Top View
L703 +5V_STB
Q703 +5V_SW
U203 +3.3V_TUNER
L702 +1.5V
C717 +3.3V
L1101 +1.0V_Core power
C781 +3.3V_SB
Q750 +12V_Panel VCC
C602 +12V AUDIO
R221 TUNER_LNB
