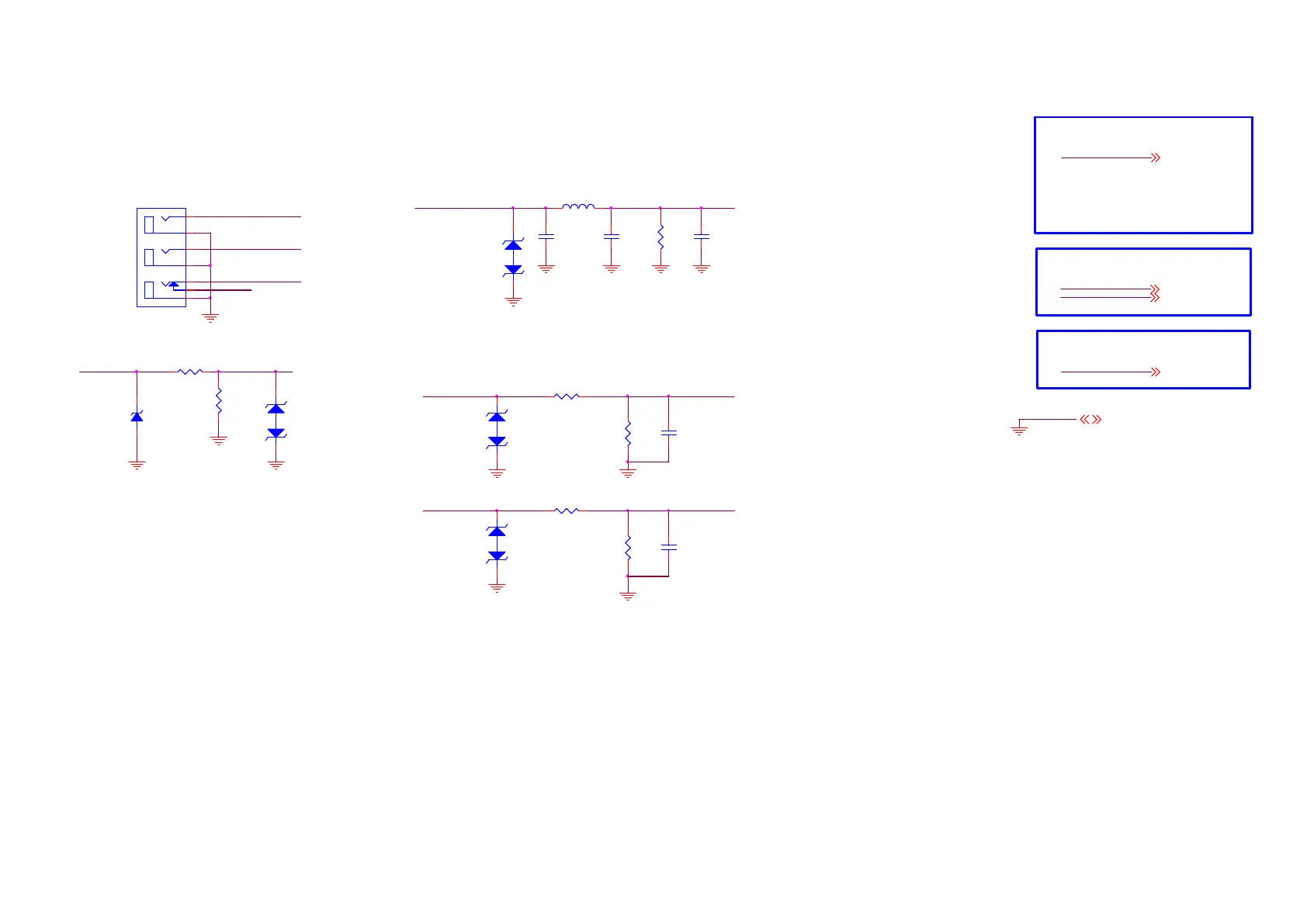

Philips 32PHS4032/12 - Page 86

8-8-12 AV
AV_IN
GND 4,5,6,7,8,9,10,11,12,13,14,16,17,18
GND
AV_L_IN
AV_R_IN
AV_IN 7
AV_L_IN 7
AV_R_IN 7
AV_R_IN_1
AV_L_IN_1
AV_IN_1
A
B
C
CN1001
RCA JACK
2
1
4
3
6
5
7
---><---|>
AV_L_IN_1
R1110
10K +-1% 1/16W
C1107 470PF
AV_R_IN_1
R1108
10K +-1% 1/16W
C1106 470PF
AV_L_IN
AV_R_IN
ZD117
AZ5125-01H.R7G
12
---><---|>
R1109
10K +-1% 1/16W
R1111
10K +-1% 1/16W
ZD118
AZ5125-01H.R7G
12
AV_FB_IN_1
ZD119
AZ5125-01H.R7G
12
---><---|>
ZD127
OAZ4012-01H.R7G
12
R1105
10K
R1104
39K 1/16W 5%
AV_FB_IN_1 SCT1_DET
STB CONTORL
SCT1_DET 10
SCT1_DET
L1100
1.8UH
C1108
220pF 50V
C1109
220pF 50V
Helf AV(CVBS+L/R IN)
CVBS IN Audio Input
AV_IN_1
R1101
75 OHM +-5% 1/16W
---><---|>
AV_IN
C1101
47pF 50V
CVBS IN
ZD112
AZ5125-01H.R7G
12
AUDIO /IF
ADC/DAC
