EN 128TPN15.1E LA 10.
Circuit Diagrams and PWB Layouts
2015-Oct-20
back to
div.table

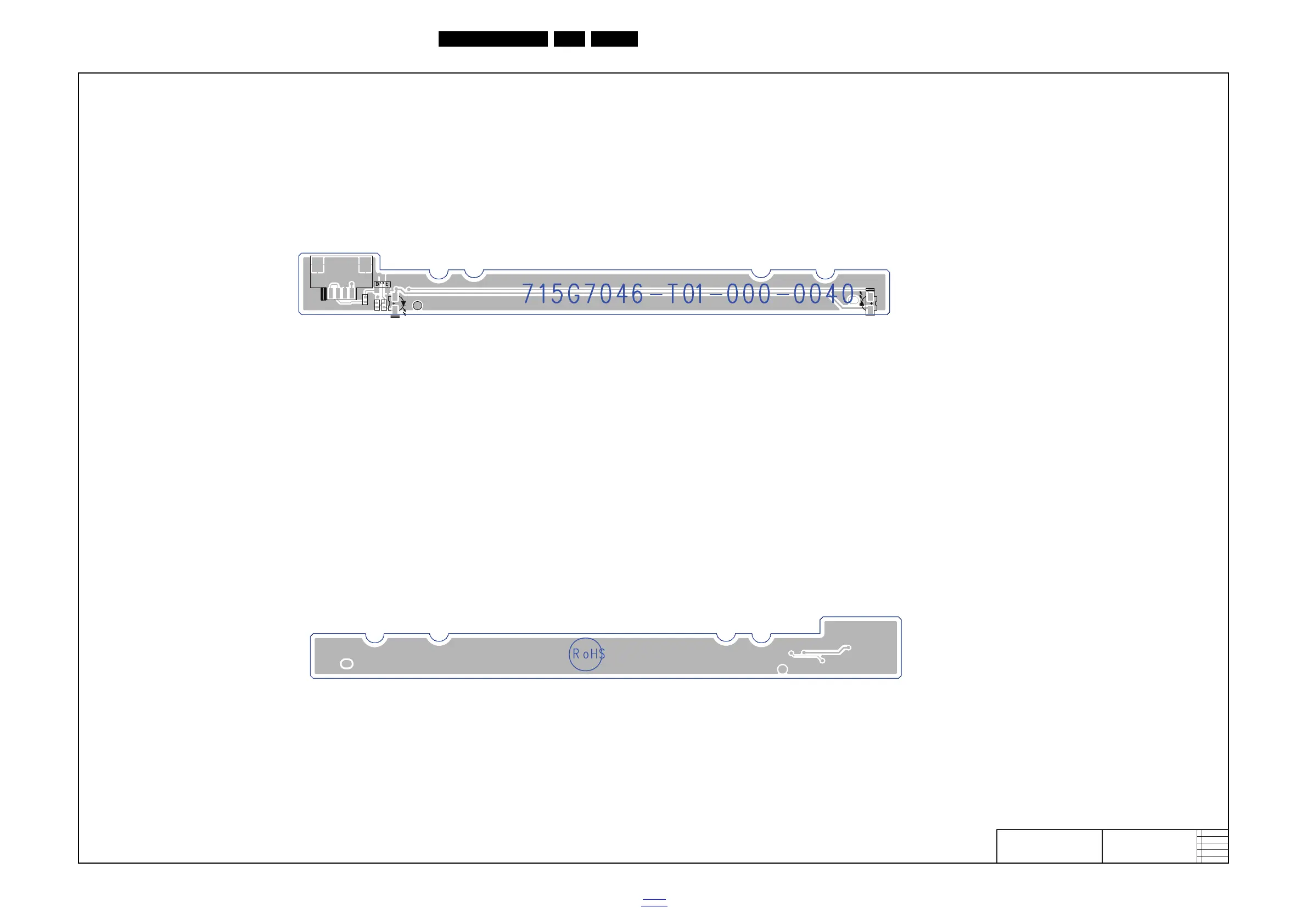

10-16-2 LED LOGO Board layout top/buttom
19792 513.eps
1
2014-11-01
715G7046
LED LOGO Board
layout top/bottom
CN2
LED301
LED302
Q301
CN301
CN1
R301
R303
R302
Layout
LED LOGO Board
(top side)
Layout
LED LOGO Board
(bottom side)
