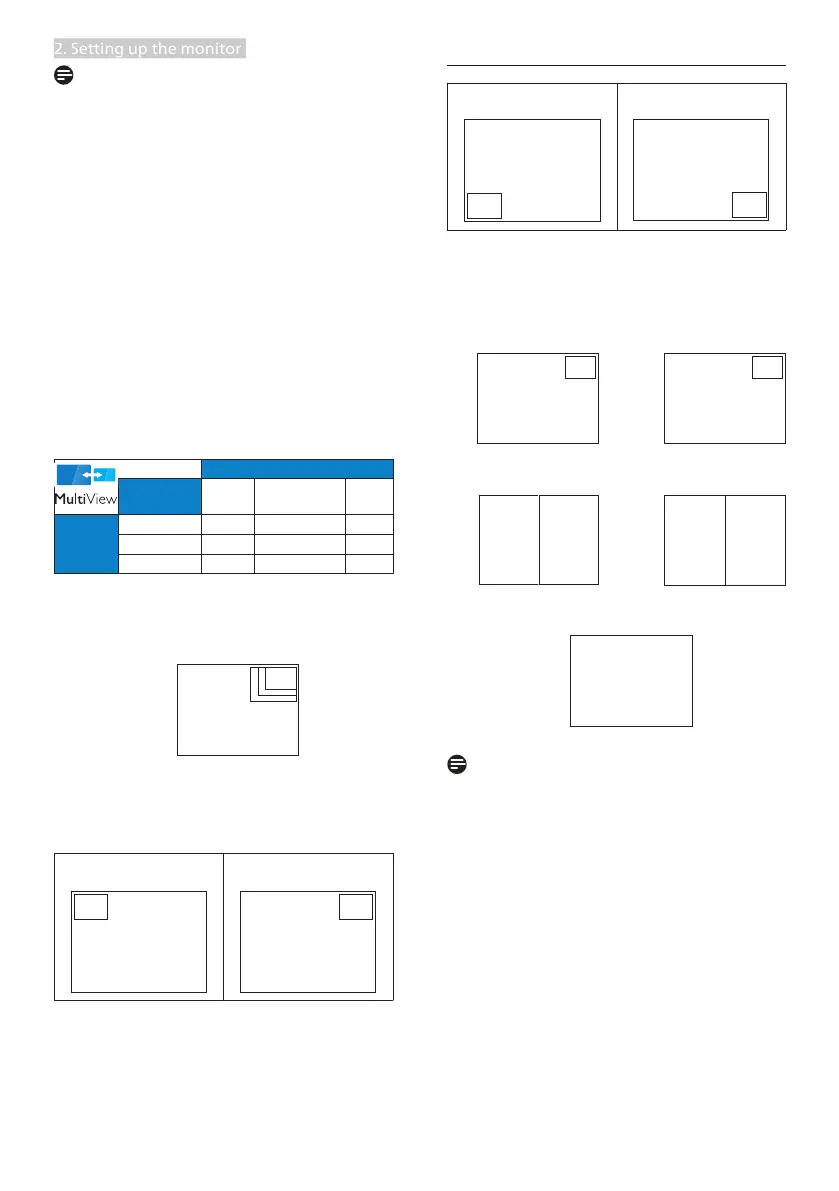

12
2. Setting up the monitor
Note
The black strip shows on the top and
the bottom of the screen for the correct
aspect ratio when in the PBP mode. If
you expect to see full screen side by side,
adjust your devices resolutions as pop
up attention resolution, you will able to
see 2 devices source screen project to this
display side by side without black strips.
Note the analog signal is not support this
full screen in PBP mode.
• PIP / PBP Input: There are different
video input to choose as the
sub display source: [HDMI 2.0],
[DisplayPort], and [USB C].
Please refer below table for compatibility
of main/sub input source.
SUB SOURCE POSSIBILITY (xl)
Inputs HDMI Display Port USBC
MAIN
SOURCE
(xl)
HDMI
● ● ●
Display Port
● ● ●
USBC
● ● ●
• PIP Size: When PIP is activated, there
are three sub-window sizes to choose:
[Small], [Middle], [Large].
B
A (main)
Small
Middle
Large
• PIP Position: When PIP is activated,
there are four sub-window positions
to choose.
Top-Left Top-Right
B
A (main)
B
A (main)
Bottom-Left Bottom-Right
B
A
(main)
A (main)
B
• Swap: The main picture source and
the sub picture source swapped
on the display.
Swap A and B source in [PIP] mode:
B
A (main)
↔
B (main)
A
Swap A and B source in [PBP] mode:
A (main) B
↔
B (main) A
• Off: Stop MultiView function.
A (main)
Note
When you do the SWAP function, the
video and its audio source will swap at the
same time.
