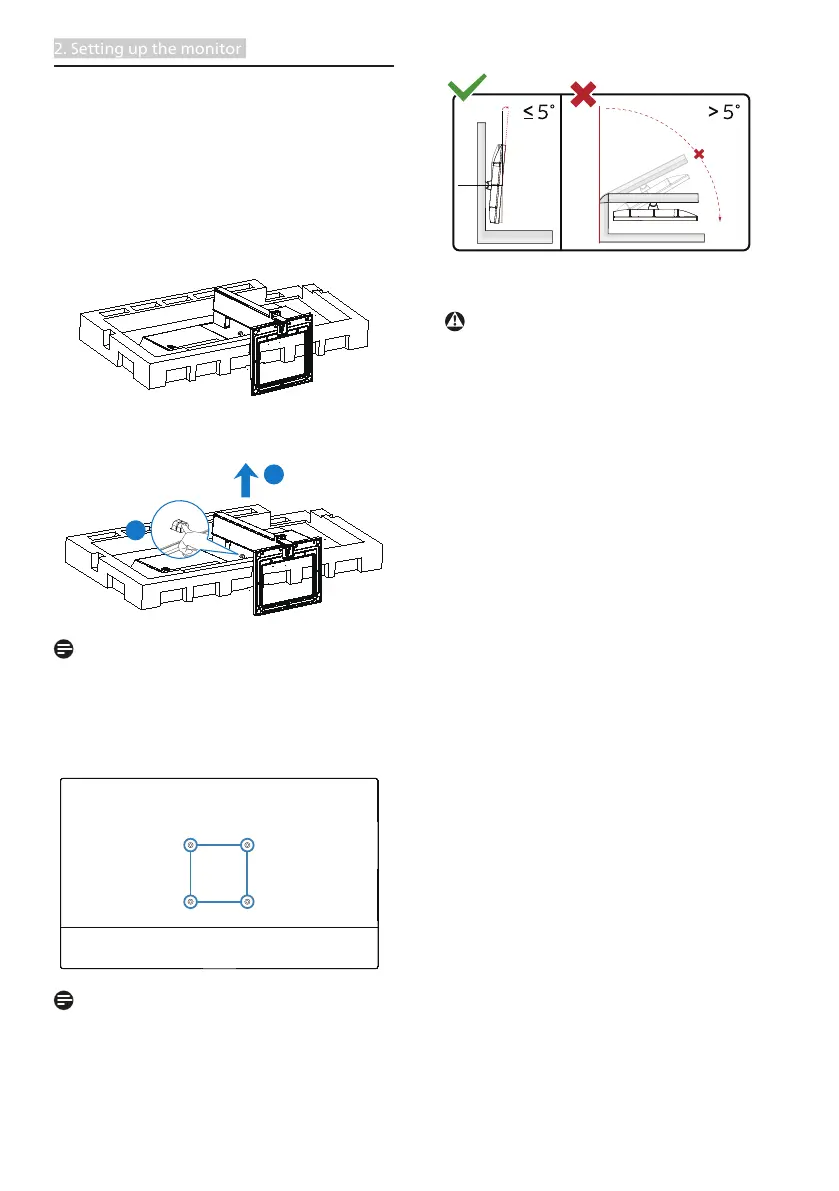

2. Setting up the monitor
2.3 Remove the Base Assembly
for VESA Mounting
Before you start disassembling the monitor
base, please follow the instructions below
to avoid any possible damage or injury.
1. Place the monitor face down on a
smooth surface. Pay attention not to
scratch or damage the screen.
2. While keeping the release button
pressed, tilt the base and slide it out.
1
2
Note
This monitor accepts a 100mm x 100mm
VESA-Compliant mounting interface.
VESA Mounting Screw M4. Always contact
manufacturer for wall-mount installation.
100mm
100mm
Note
Please purchase the appropriate wall
mount; otherwise the distance between
the back-plug-in signal cable and the wall
would be too short.
-5°
0° 90°
* Display design may dier from those
illustrated.
Warning
• To avoid potential screen damage,
such as panel peeling, ensure that the
monitor does not tilt downward by
more than -5 degrees.
• Do not press the screen while adjust-
ing the angle of the monitor. Grasp
only the bezel.
