Mechanical Instructions
EN 16 TPM15.3HE LA4.
2015-Otc-09
back to
div.table

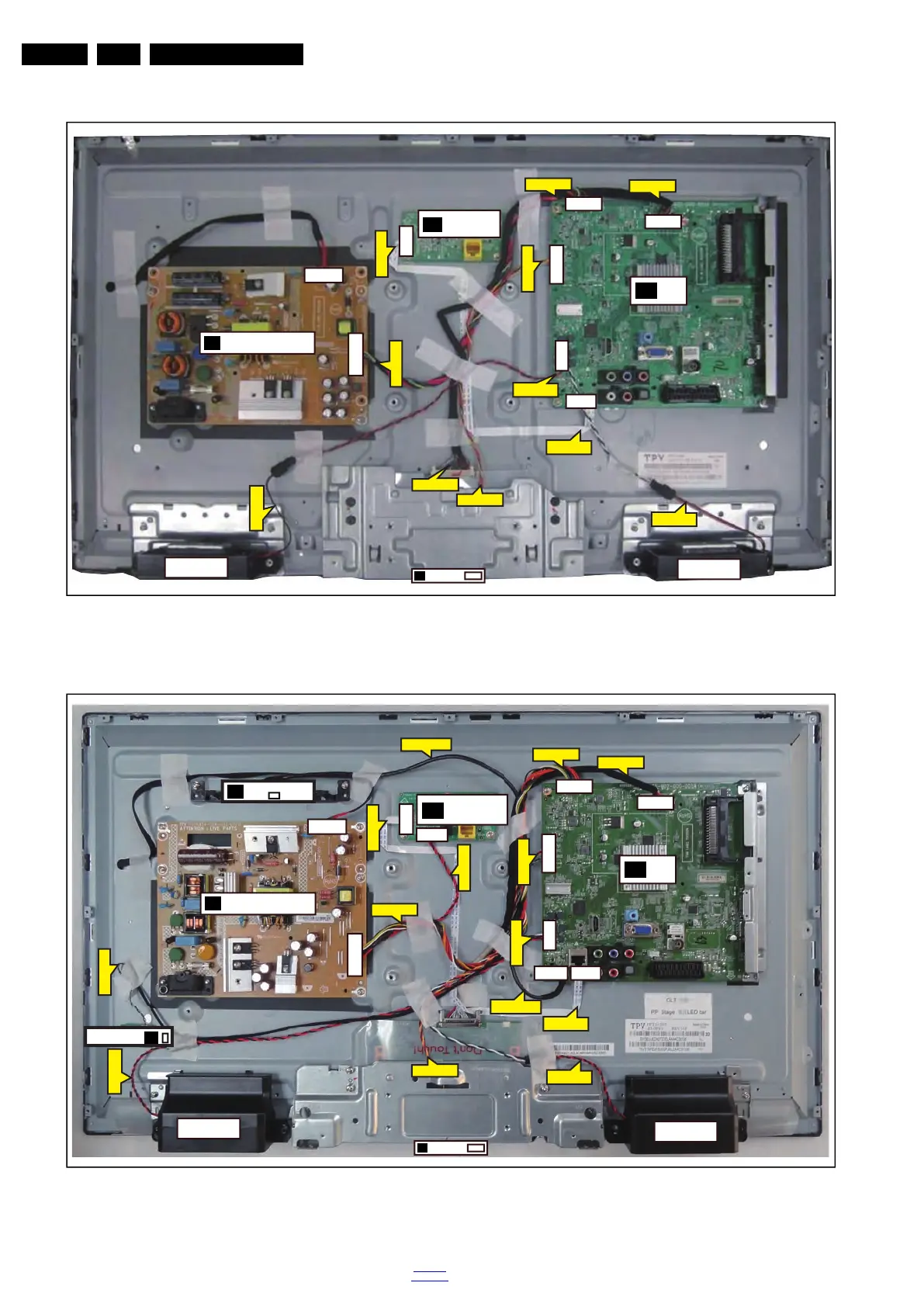

Figure 4-6 Cable dressing (32" 3010W series)
Figure 4-7 Cable dressing (32" 5010 series)
19822_101.eps
CN401
CN9101
CN602
MAIN POWER SUPPLY
(1054)
A
IR/LED BOARD
(1056)
J
SSB
(1053)
B
ECN700
ECN601
ECN601
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
CN201
CN8101
CN601
CN101
ECN602
ECN409
ECN401
ECN602
OPTION BOARD
(1058)
HC
CN700
CN409
ECN700
ECN401
ECN601
ECN409
19820_103.eps
CN401
CN9101
CN701
CN602
MAIN POWER SUPPLY
(1054)
A
IR/LED BOARD
(1056)
J
SSB
(1053)
B
ECN700
ECN601
ECN601
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
CN201
CN8601
CN601
CN101
ECN602
ECN409
ECN401
ECN602
OPTION BOARD
(1060)
HC
KEYBOARD CONTROL
(1057)
E
CN01
CN4250
CN700
CN409
ECN401
ECN700
ECN700
ECN4250
ECN401
WIFI MODULE
W
WiFi01
ECN4250
ECN601
