Philips 4010W Series User Manual

Mechanical Instructions
EN 18 TPM15.3HE LA4.
2015-Otc-09
back to
div.table

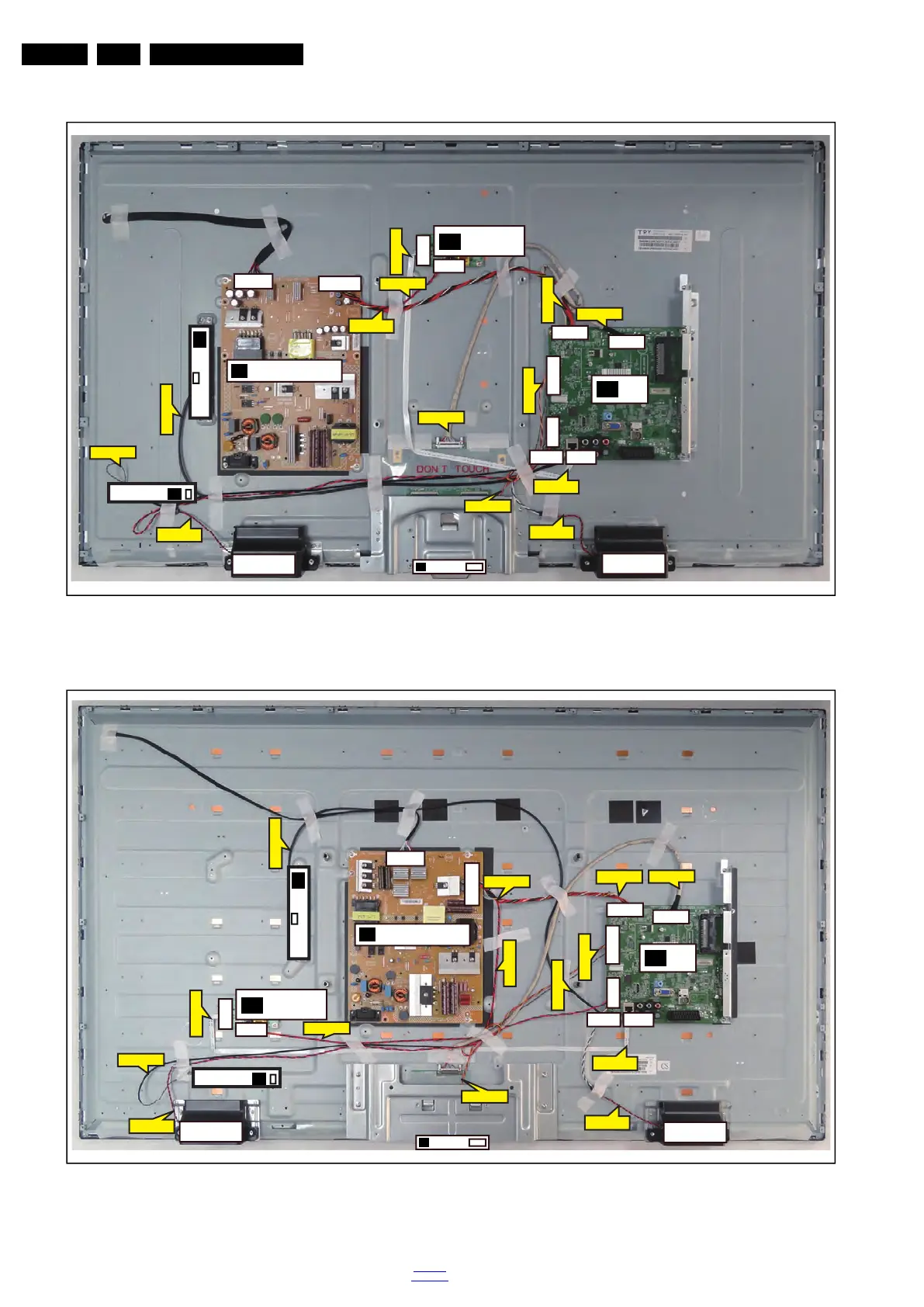

Figure 4-10 Cable dressing (40"- 48" 5010 series)
Figure 4-11 Cable dressing (55" 5010 series)
19820_106.eps
CN401
CN9303
CN701
CN602
MAIN POWER SUPPLY
(1054)
A
IR/LED BOARD
(1056)
J
SSB
(1053)
B
ECN700
ECN601
ECN601
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
CN201
CN8101
CN601
CN101
ECN602
ECN409
ECN401
ECN602
OPTION BOARD
(1060)
HC
KEYBOARD CONTROL
(1057)
E
CN01
CN4250
CN700
CN409
ECN401
ECN700
ECN401
WIFI MODULE
W
WiFi01
ECN700
ECN409
ECN4250
19820_107.eps
CN401
CN9101
CN701
CN602
MAIN POWER SUPPLY
(1054)
A
IR/LED BOARD
(1056)
J
SSB
(1053)
B
ECN700
ECN601
ECN601
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
CN201
CN8101
CN601
CN101
ECN602
ECN409
ECN401
ECN602
OPTION BOARD
(1060)
HC
KEYBOARD CONTROL
(1057)
E
CN01
CN4250
CN700
CN409
ECN401
ECN700
ECN401
WIFI MODULE
W
WiFi01
ECN4250
ECN4250
ECN700
ECN700
