EN 7TPM15.3HE LA 2.
2015-Otc-09
back to
div.table
2.5 Connections (for 32"- 55")

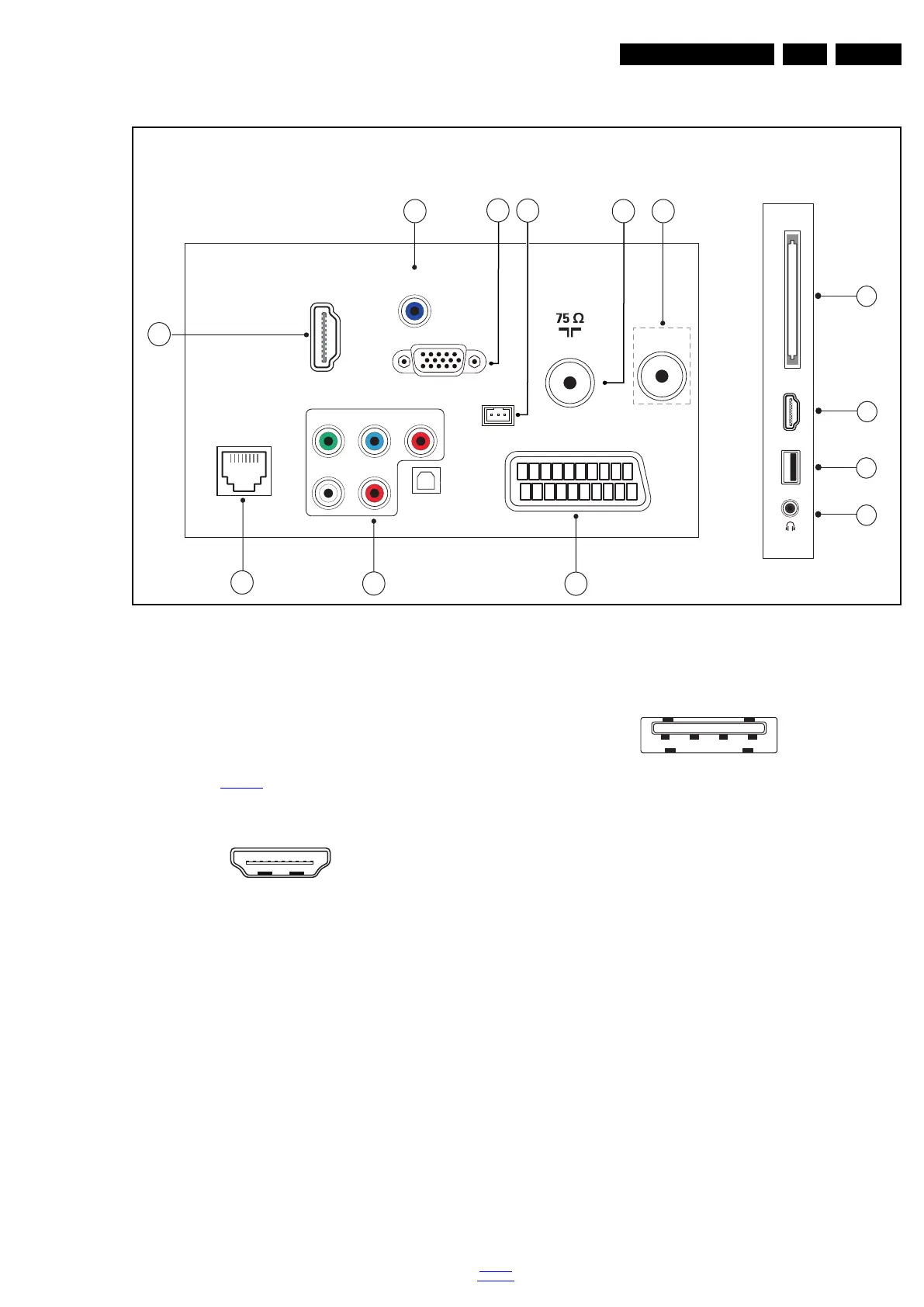

Figure 2-13 Connection overview
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.
2.5.1 Side Connections
1 - Common Interface
68p- See figure 10-7-11
jk
2 - HDMI ARC: Digital Video - In, Digital Audio with ARC -
In/Out
Figure 2-14 HDMI (type A) connector
1 - D2+ Data channel j
2-Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5-Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8-Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
3 - USB 2.0
Figure 2-15 USB (type A)
1-+5V k
2 - Data (-) jk
3 -Data (+) jk
4 - Ground Gnd H
4 - Head phone (Output)
Bk - Head phone 80 - 600  / 10 mW ot
2.5.2 Rear Connections
5 - SAT - In
Signal input from an SAT.
6 - TV ANTENNA - In
Signal input from an antenna, cable or satellite.
7 - Service / UART
1 - Ground Gnd H
2 - UART_TX Transmit k
3 - UART_RX Receive j
HDMI ARC
USB
CI
TV ANTENNA
SERV.U
AUDIO IN
DVI/VGA
HDMI 1
ARC
SCART
(RGB/CVBS)
DIGITAL
AUDIO OUT
LR
CVBS/Y Pb
Pr
VGA
NETWORK
(Optional)
SAT
19820_002.eps
1
2
3
4
9
12
13
Side ConnectorsRear Connectors
6
8
10
11
(Optional)
7
5
10000_017_090121.eps
090428
19
1
18 2
1 2 3 4
10000_022_090121.eps
090121
