Philips 42PFL3604/12 - 2.3 Connections; 2.3.1 Side Connections

Technical Specifications, Connections
EN 3TPS2.2E LA 2.
2009-May-29
2.3 Connections

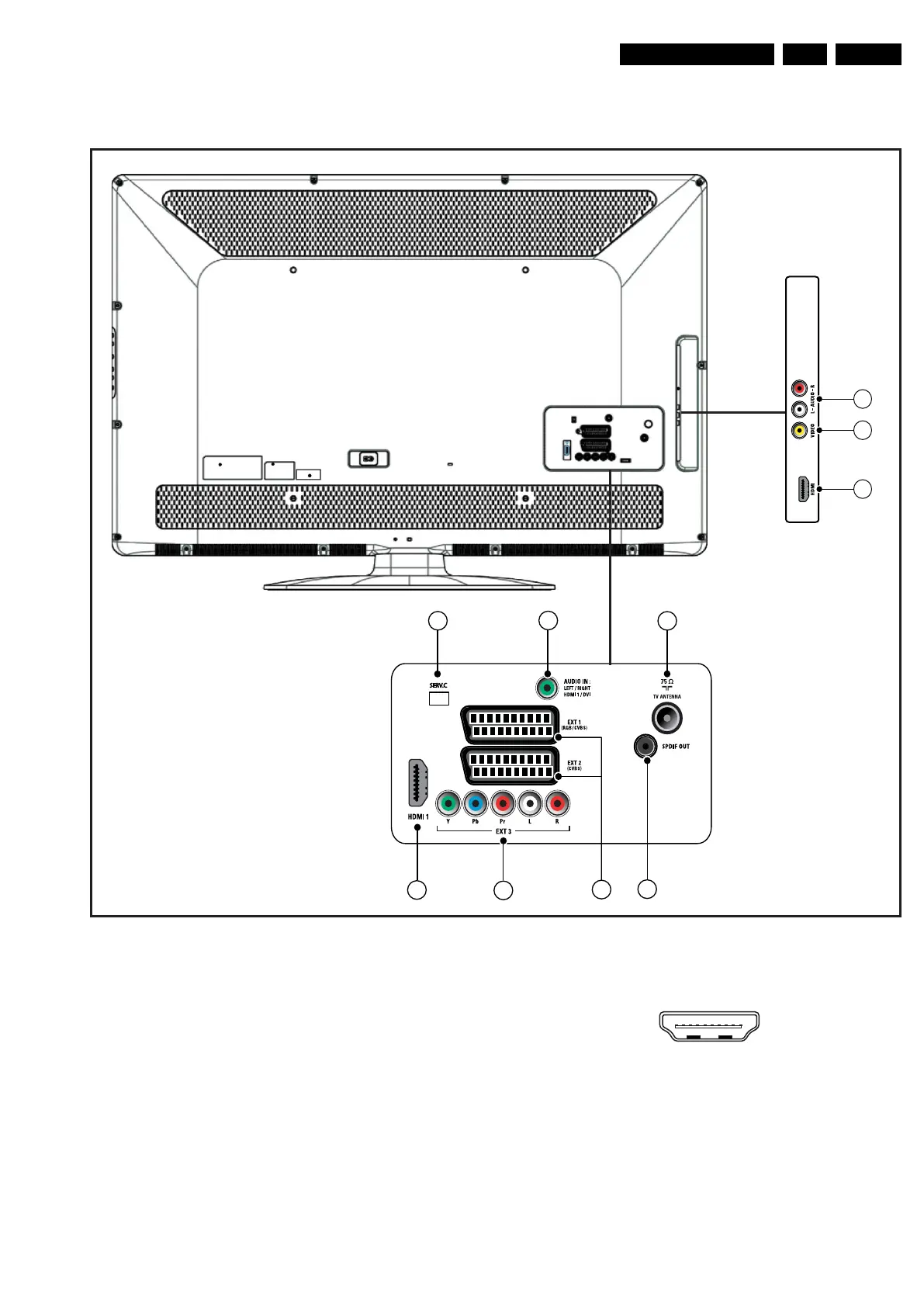

Figure 2-1 Connection overview
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.
2.3.1 Side Connections
1 - Cinch: Audio - In
Rd - Audio R 0.5 V
RMS
/ 10 kΩ jq
Wh - Audio L 0.5 V
RMS
/ 10 kΩ jq
2 - Cinch: Video CVBS - In, Audio - In
Ye - Video CVBS 1 V
PP
/ 75 Ω jq
3 - HDMI: Digital Video, Digital Audio - In
Figure 2-2 HDMI (type A) connector
1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H
18280_001_090420.eps
090515
SERV.C
4
5
6
7
8
9
10
1
2
3
10000_017_090121.eps
090428
19
1
18 2
