Philips 43PUS6412/12 - 7502 Series 49;55

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9
0030T Bezel-TOP
0030B Bezel-BOTTOM
0040 Rear cover
0050 BASE
0063 KEY_FUNCTION
0065 COVER_CLOCK_REAR
1050 Display panel
1053 Panel SSB
1054 Power Supply Unit
1056 IR/LED panel
1057 Keyboard control panel
1068 Option Board
1061 LED Modules
1062 LED Module
1176 Remote control Not displayed
1184 Speakers
1186 Speaker
WiFi01 WiFi_USB
Pos No. Description Remarks

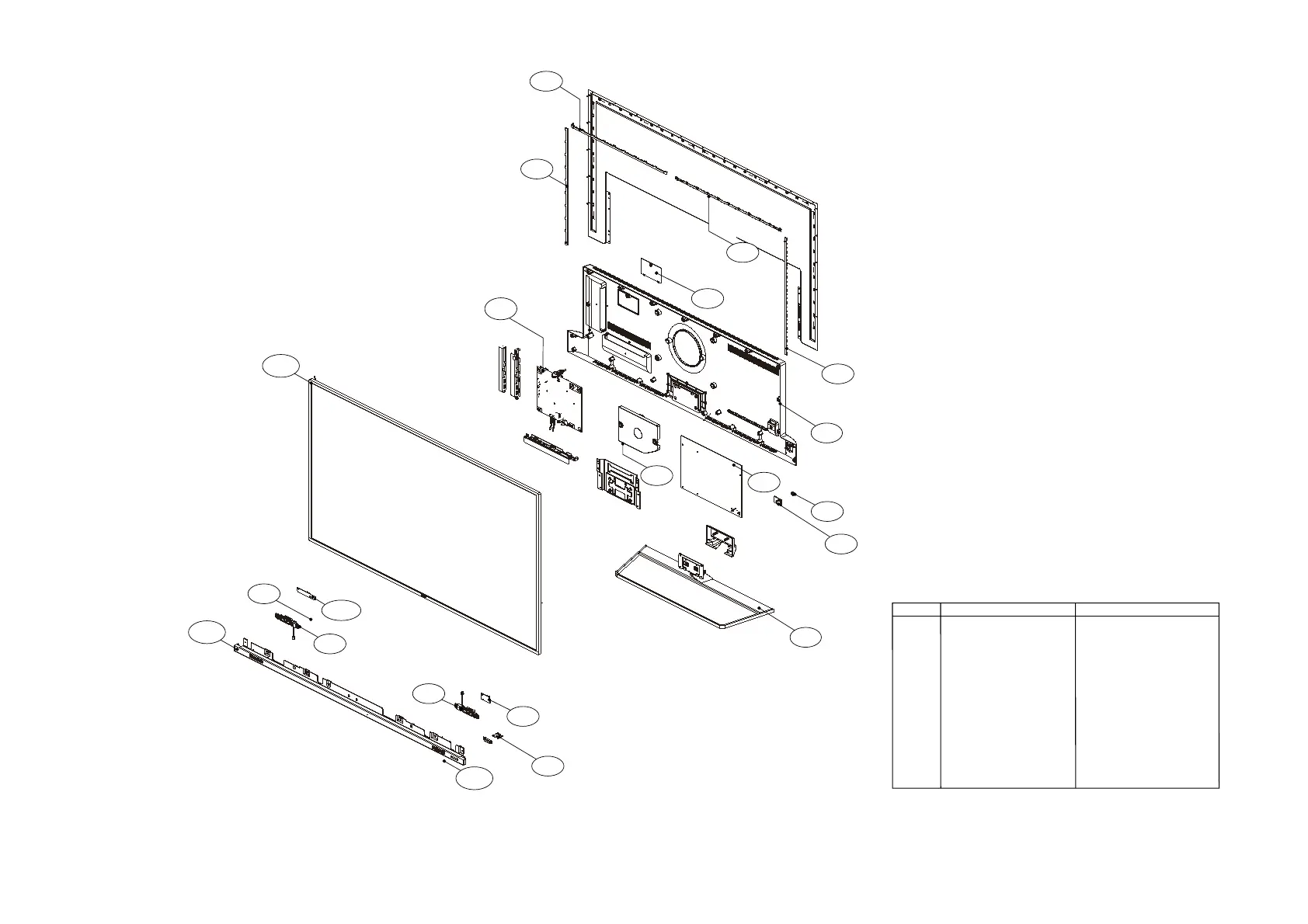

9.6 7502 series 49"/55"
0040
0050
1061
0065
1061
1054
1068
1058
1056
1184
1184
1057
WIFI01
0050L
0030B
0030T
1053
1062
1186
1061
0063
