3. Connecting External Equipment
3.1. Connecting External Equipment (DVD/VCR/VCD)

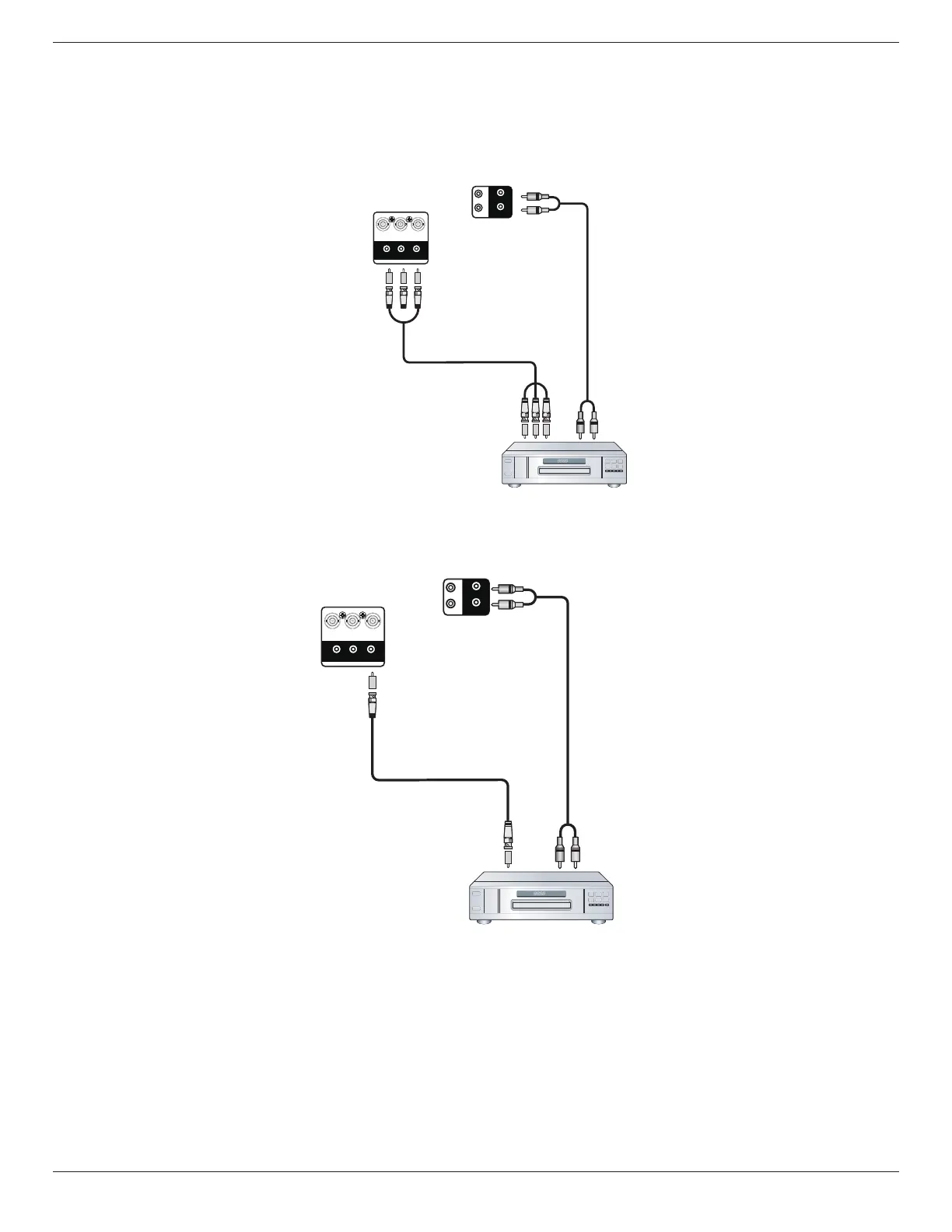

3.1.1. Using COMPONENT video input
DVD / VCR / VCD
COMPONENT Out
(YPbPr)
Audio Out
[AUDIO IN]
[COMPONENT IN]
(YPbPr)
PC LINE
IN
SPEAKER
SWITCH
Pr Pb Y/CVBS
AUDIO OUT
AUDIO R IN
AUDIO L IN
3.1.2. Using Video Source input
[Y/CVBS IN]
DVD / VCR / VCD
CVBS OUT
Audio Out
[AUDIO IN]
PC LINE
IN
SPEAKER
SWITCH
Pr Pb Y/CVBS
AUDIO OUT
AUDIO R IN
AUDIO L IN
