Page #45 background imageLoading...
Page #45 background image
10-15
CN4001
1GND
2KEY-IN1
SW4006 SW4005 SW4004 SW4003 SW4002 SW4001
2.7K
R4003
4.7K
R4002
2.2K
R4004
12K
R4001
3K
R4005
OPEN
D4002
0
R4006
0.1
C4002
OPEN
D4001
2
1
ABC
FUNCTION CBA UNIT
TO IR SENSOR
CBA UNIT CN4051
CH UP
VOL
DOWN
POWER SOURCE
UNLESS OTHERWISE SPECIFIED:
SWITCHES ARE SKRMAAE010.
CH
DOWN
VOL
UP
PL11.8SCF

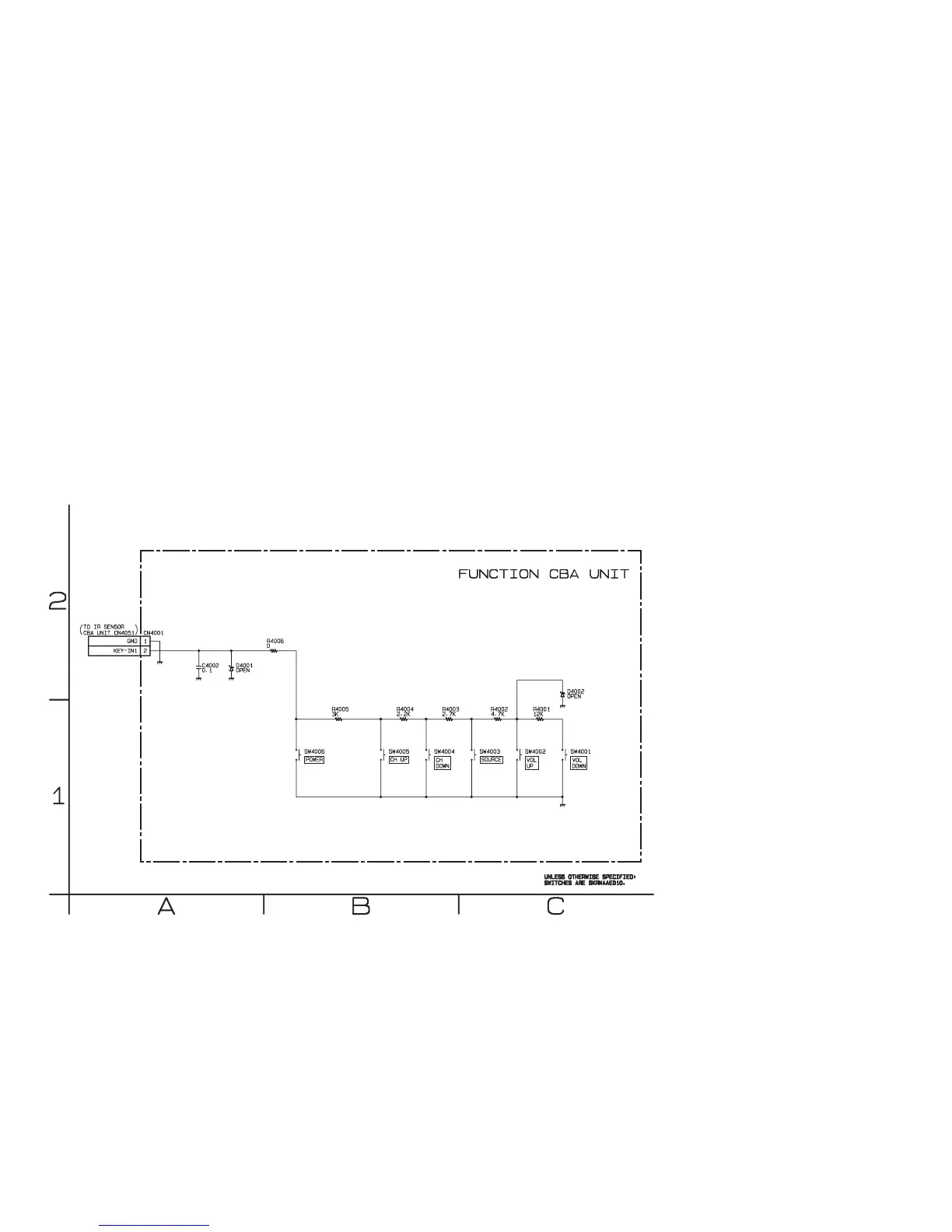

Function Schematic Diagram
