EXTERNAL SPEAKER CONNECTIONS (CONTINUED)
External Powered Subwoofer Connection

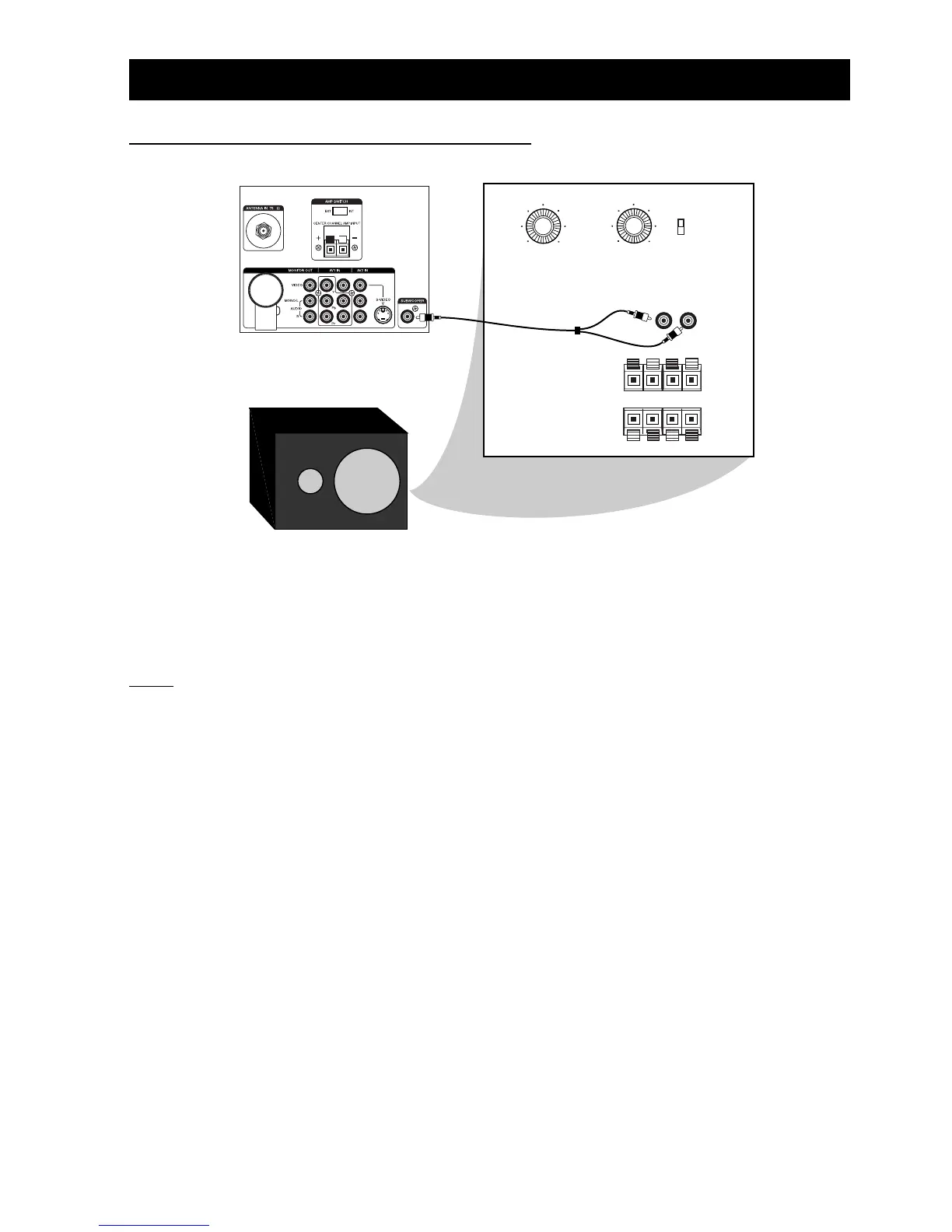

– Connect the INPUT sockets of a powered subwoofer to the SUBWOOFER socket on
the rear of the TV. You can use a y-shaped cable to make the connection. You can also use
a single cable and connect to either the R or L Low Level Input sockets.
Note
• If you use a single cable to make the connection to the powered subwoofer, you will need
to increase the volume on the back of the subwoofer to compensate for the absence of the
second cable.
• The powered subwoofer trim must be adjusted from the external powered subwoofer.
