Mechanical Instructions
EN 12 QM15.2E LA4.
2015-Sep-30
back to
div.table

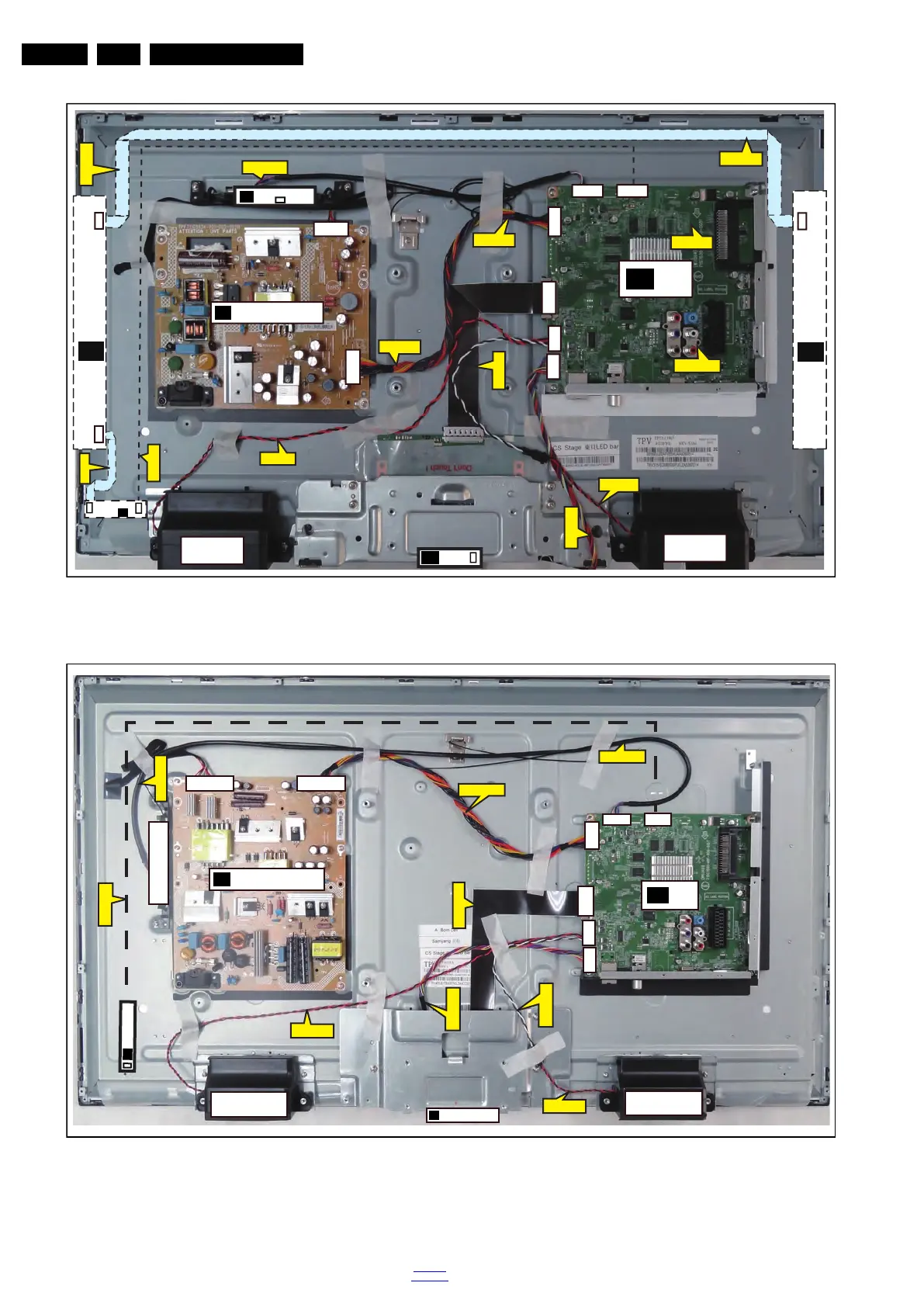

Figure 4-2 Cable dressing (32" 6500 series)
Figure 4-3 Cable dressing (39" 5500 series)
19884_100.eps
CN8101
CN9101
CN4250
CN402
CN700
MAIN POWER SUPPLY
(1054)
A
SSB
(1053)
B
ECN4250
ECN601
ECN402
ECN401
ECN700
ECN4250
ECN700
KEYBOARD CONTROL
(1057)
E
CN01
CN02
IR/LED BOARD
(1056)
J
ECN601
ECN408
ECN402
AmbiLight
AL
(1061)
AmbiLight
AL
(1062)
CN201
EXA05
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
WIFI MODULE
W
WiFi01
CN408
CN401
CN601
EXA05
ECN02
19880_101.eps
CN408
CN700
CN601
CN401
CN402
CN9101CN8601
CN4250
MAIN POWER SUPPLY
(1054)
A
SSB
(1053)
B
ECN700
ECN601
ECN601
ECN601
ECN401
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
ECN408
ECN4250
ECN4250
IR/LED BOARD
(1056)
J
KEYBOARD CONTROL
(1057)
E
CN01
WIFI Module
(WiFi01)
ECN402
