Mechanical Instructions
EN 14 QM15.2E LA4.
2015-Sep-30
back to
div.table

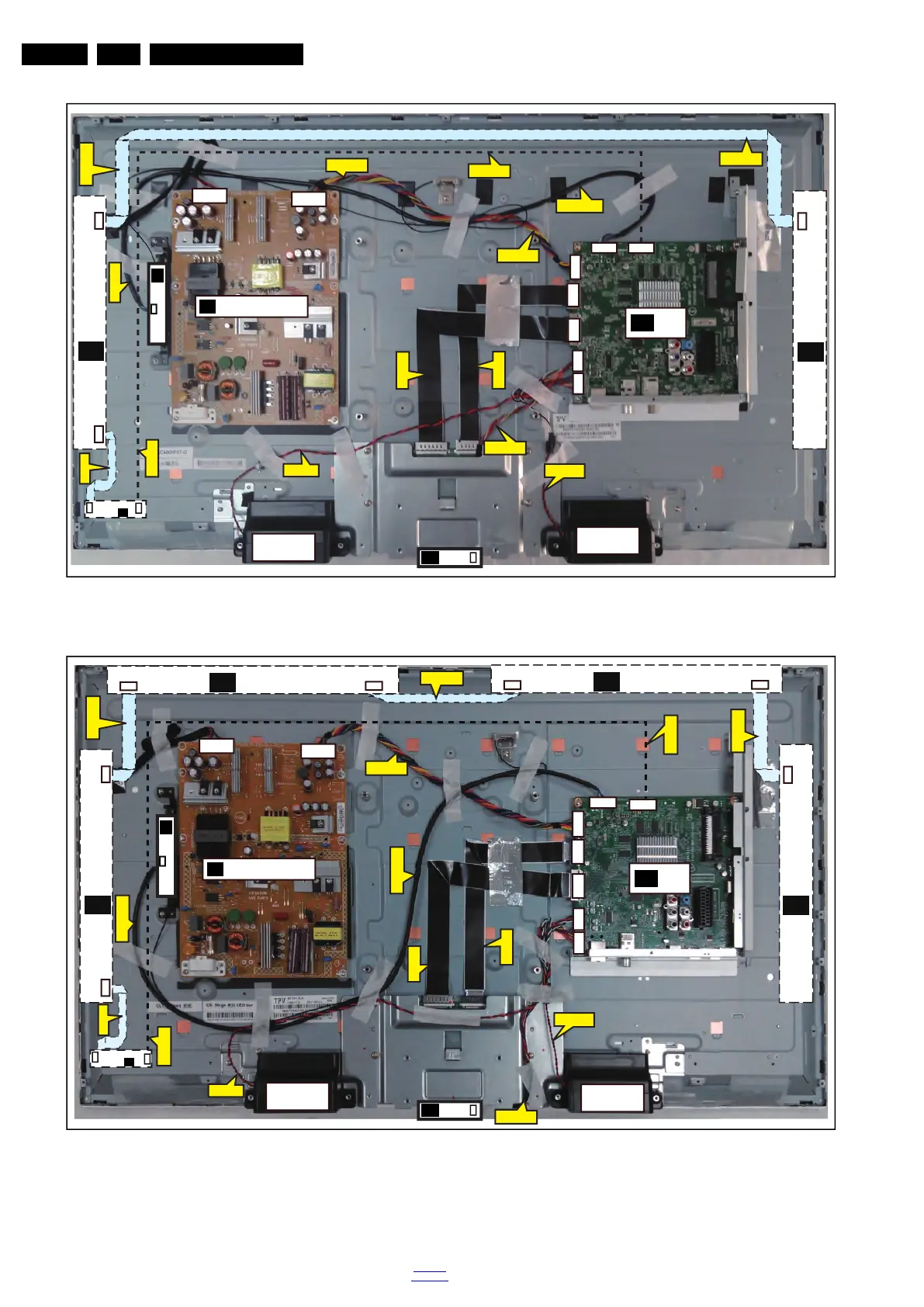

Figure 4-6 Cable dressing (40" 6510&6540 series)
Figure 4-7 Cable dressing (40" 6550&6560&6580 series)
19881_100.eps
CN8101
CN9303
CN4250
CN402
CN700
CN408
MAIN POWER SUPPLY
(1054)
A
SSB
(1053)
B
ECN4250
ECN601
ECN4250
ECN402
ECN401
ECN700
ECN700
KEYBOARD CONTROL
(1057)
E
CN01
CN02
IR/LED BOARD
(1056)
J
ECN601
ECN408
ECN409
ECN402
AmbiLight
AL
(1062)
AmbiLight
AL
(1061)
CN201
EXA05
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
WIFI MODULE
W
WiFi01
CN409
CN401
CN601
EXA05
ECN02
19881_101.eps
CN8101
CN9303
CN4250
CN402
CN700
CN408
MAIN POWER SUPPLY
(1054)
A
SSB
(1053)
B
ECN4250
ECN4250
ECN601
ECN401
ECN700
E
CN01
IR/LED BOARD
(1056)
J
ECN601
ECN408
ECN409
CN201
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
WIFI MODULE
W
WiFi01
CN409
CN401
CN601
ECN402
ECN402
KEYBOARD CONTROL
(1057)
E
CN01
CN02
AmbiLight
AL
(1062)
AmbiLight
AL
(1062)
EXA02
EXA02
AmbiLight
AL
(1062)
AmbiLight
AL
(1061)
EXA04
ECN02
