Mechanical Instructions
EN 18 QM15.2E LA4.
2015-Sep-30
back to
div.table

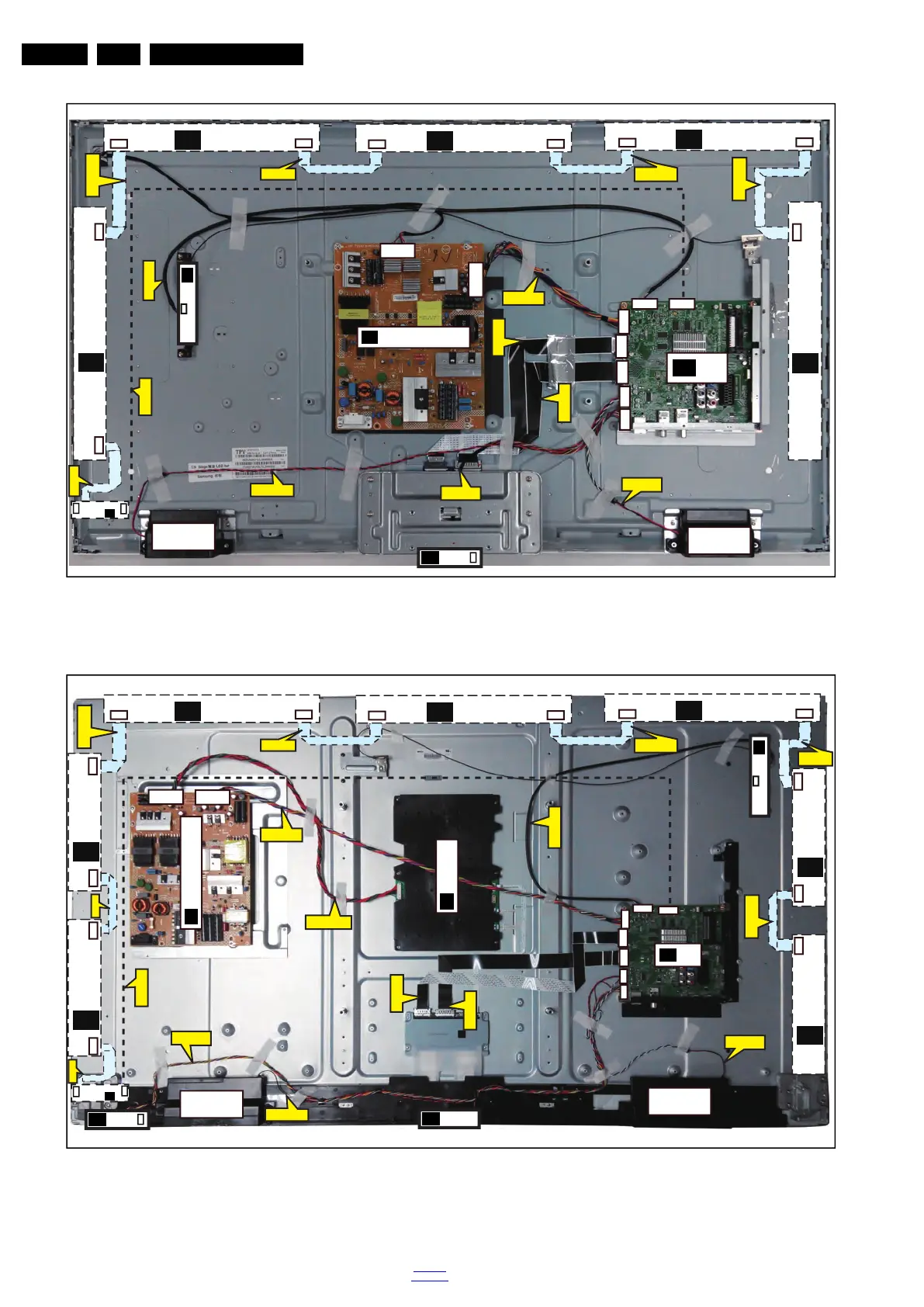

Figure 4-14 Cable dressing (55" 6550&6560&6580 series)
Figure 4-15 Cable dressing (65" 6520 series)
19881_105.eps
CN9101
CN8101
MAIN POWER SUPPLY
(1054)
A
ECN601
ECN401
IR/LED BOARD
(1056)
J
ECN601
CN201
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
WIFI MODULE
W
WiFi01
KEYBOARD CONTROL
(1057)
E
CN01
CN02
AmbiLight
AL
(1062)
AmbiLight
AL
(1062)
EXA02
AmbiLight
AL
(1061)
AmbiLight
AL
(1061)
AmbiLight
AL
(1061)
EXA04
EXA02
ECN02
CN4250
CN402
CN700
CN408
SSB
(1053)
B
CN409
CN401
CN601
ECN700
ECN409
ECN408
ECN4250
ECN402
EXA04
19883_100.eps
CN9203
CN9101
MAIN POWER SUPPLY (1054)
A
ECN601
ECN401
ECN601
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
WIFI MODULE
W
WiFi01
KEYBOARD CONTROL
(1057)
E
CN01
CN02
AmbiLight
AL
(1061)
AmbiLight
AL
(1061)
EXA02
EXA02
AmbiLight
AL
(1062)
AmbiLight
AL
(1070)
AmbiLight
AL
(1062)
EXA02
EXA02
ECN02
EXA02
CN4250
CN402
CN700
CN408
SSB
(1053)
B
CN409
CN401
CN601
ECN700
ECN9203
ECN409
ECN408
ECN4250
ECN402
EXA02
AmbiLight
AL
(1061)
AmbiLight
AL
(1061)
IR/LED BOARD
(1056)
J
CN201
LED Logo BOARD(Logo)
(1068)
ALC
LED DRIVER (1055)
AD
