Philips 55PUH6400/88 User Manual

Technical Specs, Diversity, and Connections
EN 6 QM15.2E LA2.
2015-Sep-30
back to
div.table
13 - Easylink/CEC Control channel jk
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gn d H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gn d H
16 - HDMI2 : Digital Video - In, Digital Audio - In/Out

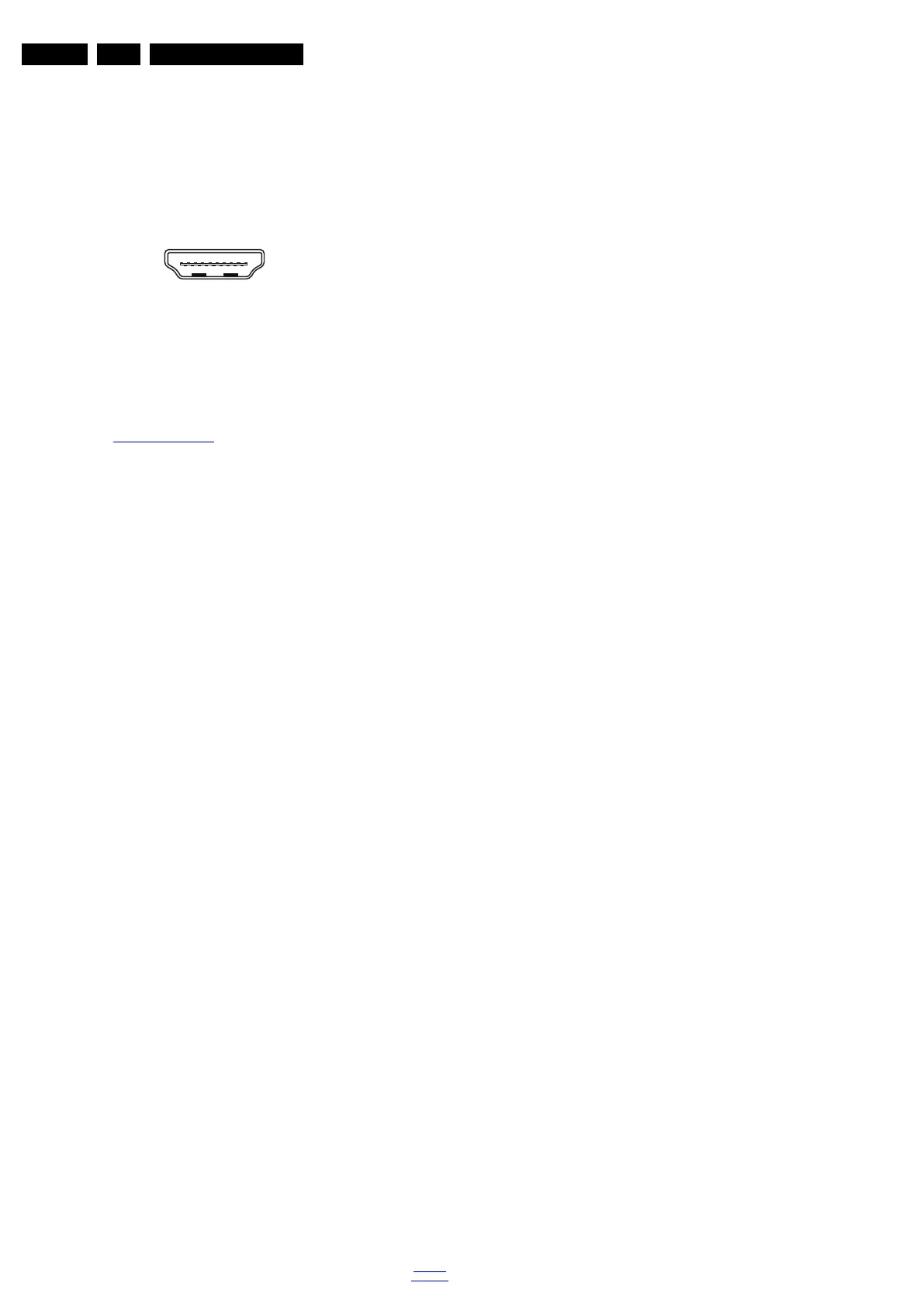

Figure 2-10 HDMI (type A) connector
1 - D2+ Data channel j
2-Shield G nd H
3 - D2- Data channel j
4 - D1+ D ata channel j
5 - Shield Gnd H
6 - D1- D ata channel j
7 - D0+ D ata channel j
8 - Shield Gnd H
9 - D0- D ata channel j
10 - CLK+ D ata channel j
11 - Shield Gnd H
12 - CLK- D ata channel j
13 - Easylink/CEC C ontrol channel jk
14 - n.c.
15 - DDC_SCL D DC clock j
16 - DDC_SDA D DC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
2.4 Chassis Overview
Refer to 9. Block Diagrams for PWB/CBA locations.
10000_017_090121.eps
090428
19
1
18 2

Philips 55PUH6400/88 Specifications

General

Brand	Philips
Model	55PUH6400/88
Category	TV
Language	English
