Philips 55PUS6101 Service Manual

Circuit Diagrams and PWB Layouts
EN 55TPL16.1E LA 10.
2016-Sep-23
back to
div.table

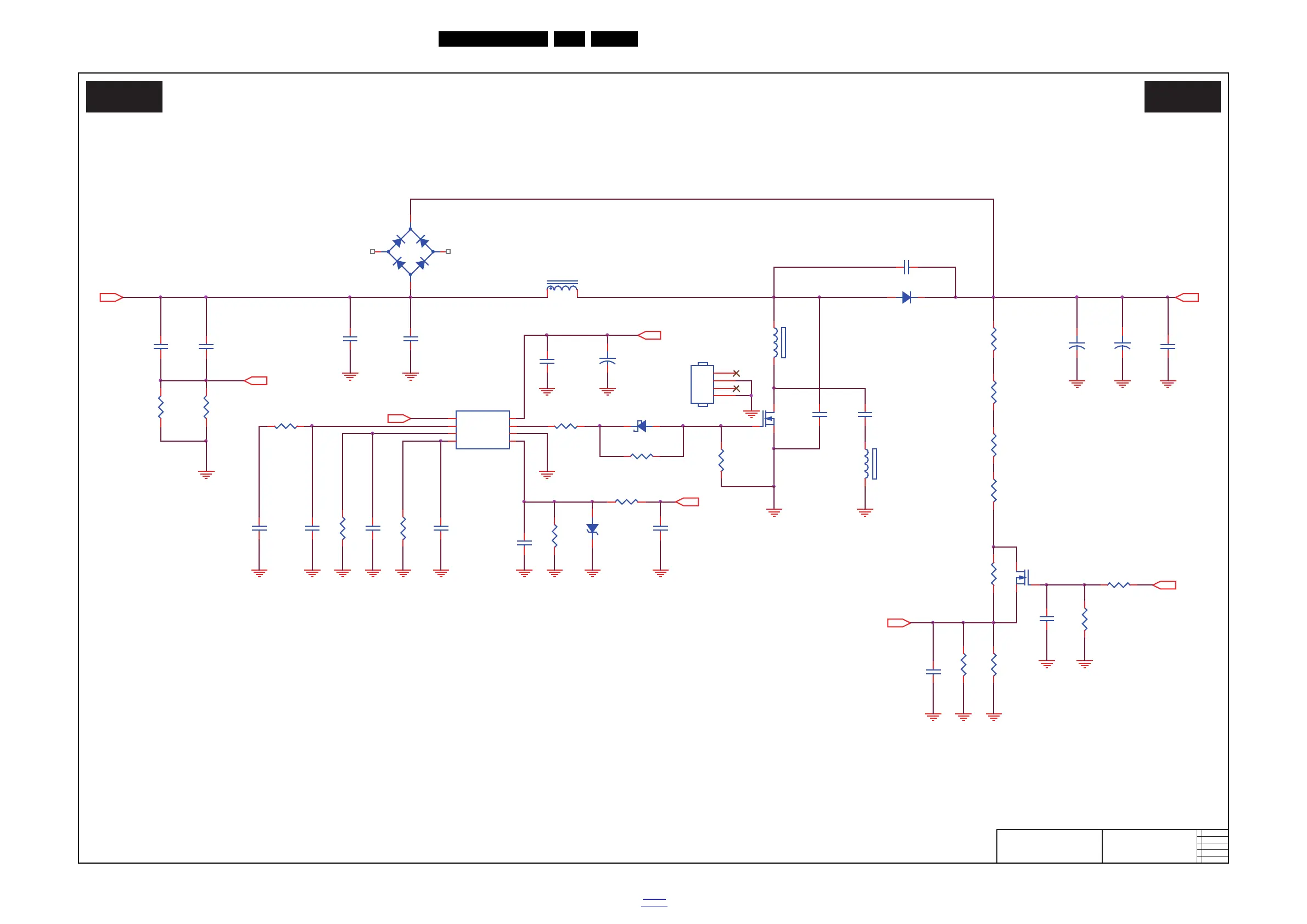

10-2-2 PFC
19820_545.eps
PFC
A02 A02
2014-12-08
715G6973
PFC
-
+
BD9801
KBP206G X0G
2
1
3
4
Q9801
TK18A60V
R9816
10K 1/8W 1%
C9815
47PF
D9802
SS1060
12
R9815
33R 1%
R9814
10R 1/8W 5%
R9818
100K 1/8W 1%
C9813
3.3nF 50V
R9813
NC / 24K 1/8W 1%
ZD9801
BZT52-B3V6
12
R9817
10K 1/8W 1%
R9812
47R 1%
C9812
47PF 50V
HS9801
HEAT SINK
1
2
3
4
R-
+VCC2
+
C9810
10UF 50V
C9811
100N 50V
C9805 1NF 50V R9808
16K +-1% 1/8W
R9807
470K 1%
C9807
0.47uF 50V
R9809
27K 1/8W 1%
C9806
1uF
R9810
22K 1/8W 1%
C9808
10NF 50V
L9801
220uH
6 4
R9811 33K 1/8W 1%
C9809
10NF 50V
C9817
100N 50V
C9816
1NF
C9814
NC / 47PF
D9801
FMNS-1106S
+
C9801
68uF 450V
+
C9802
68uF 450V
Vbus
R9803
1MOHM +-1% 1/4W
R9805
680K OHM +-1% 1/4W
R9806
100K 1%
R9804
680K OHM +-1% 1/4W
FB_PFC
C9818
470PF
FB9904
BEAD
12
FB_PFC
+VCC2
U9801
SSC-2005S
FB
1
COMP
2
RT
3
RDLY
4
CS
5
GND
6
OUT
7
VCC
8
C9819
470PF
C9820
1NF
R9819
NC/0R05
Q9802
AO3160
FB9801
BEAD
12
Vsin
C9803
1UF 450V
C9804
1UF 450V
R-
R9801
0.07R 3W
R9802
0.07R 3W
