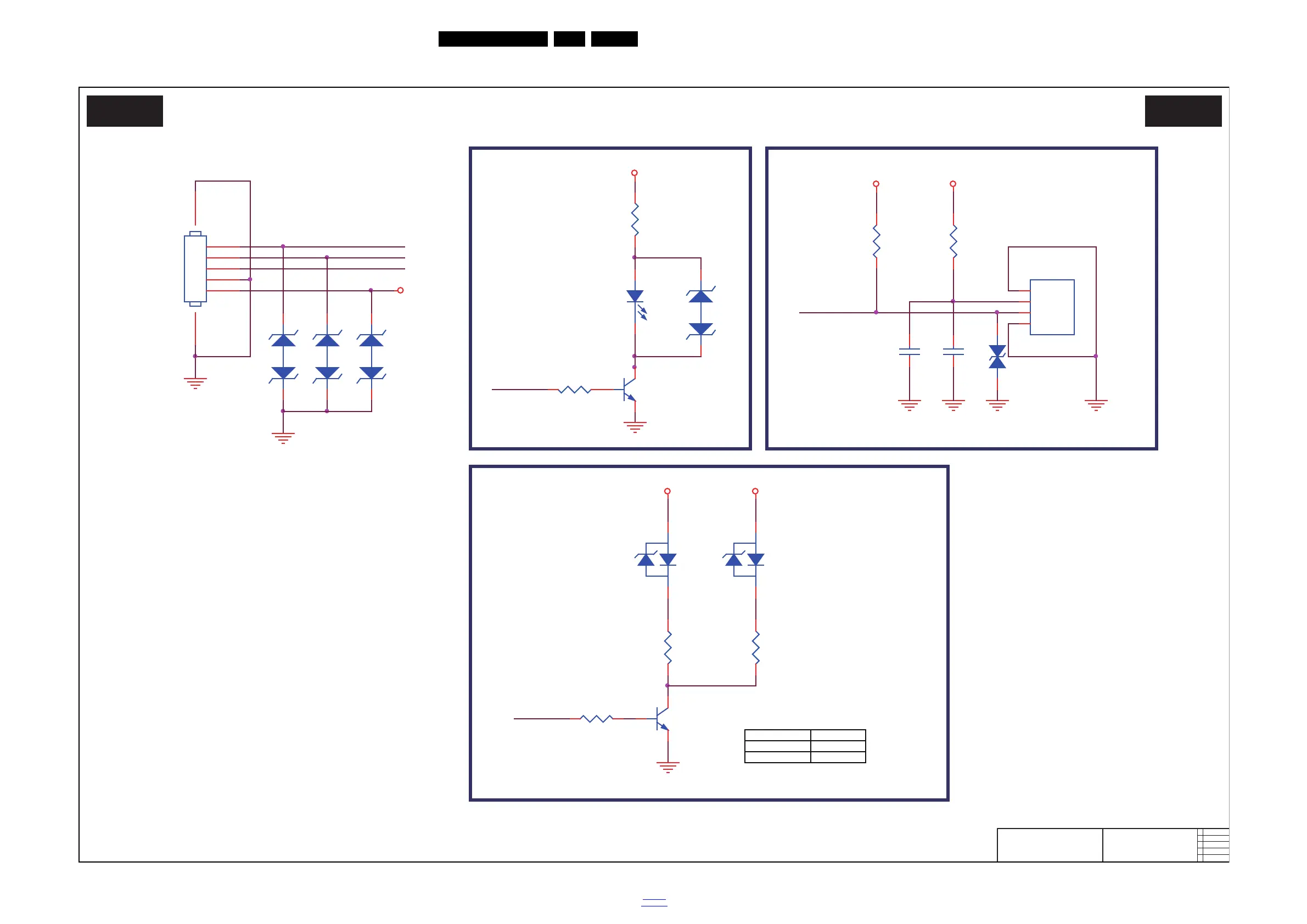

10.8 J 715G8521 IR/LED Panel
10-8-1 IR & 3D & Light sensor & LOGO
20112_502.eps
IR &3D&Light sensor&LOGO
J J
2016-08-05
715G8521
IR &3D&Light sensor&LOGO
C204
1uF 10V
Standby LED
IR Receiver
3V3SB
R202
100R 1/16W 5%
R201
NC/2K7 1/16W 5%
3V3SB
RC6
RC6
3V3SB
LED201
GPSS008RC4
12
Red
ZD203
NC/AZ5125-01H.R7G
12
ZD202
NC/AZ5125-01H.R7G
12
ZD204
NC/AZ5125-01H.R7G
12
LOGO
Lighting
LOGO
R230
1K 1/16W 5%
R232
2R2 1/16W 5%
3V3SB
LED205
CHIP LED WHITE 99-113UNC/2223010/TR8
2 1
LED206
CHIP LED WHITE 99-113UNC/2223010/TR8
2 1
R231
2R2 1/16W 5%
3V3SB
LOGO
C205
1uF 10V
Q207
BC847BW
CN201
CONN
1
2
3
4
5
67
5500
6200/6400/65xx
LOGO Function
NC
Yes
ZD205
NC/AZ5125-01H.R7G
12
R233
1K 1/16W 5%
LED_R
Q201
BC847BW
LED_R
R234
2.2K OHM
ZD201
MLVG0402
12
U201
TSOP75436TR
GND
1
VCC
2
Vout
3
GND
4
3V3SB
