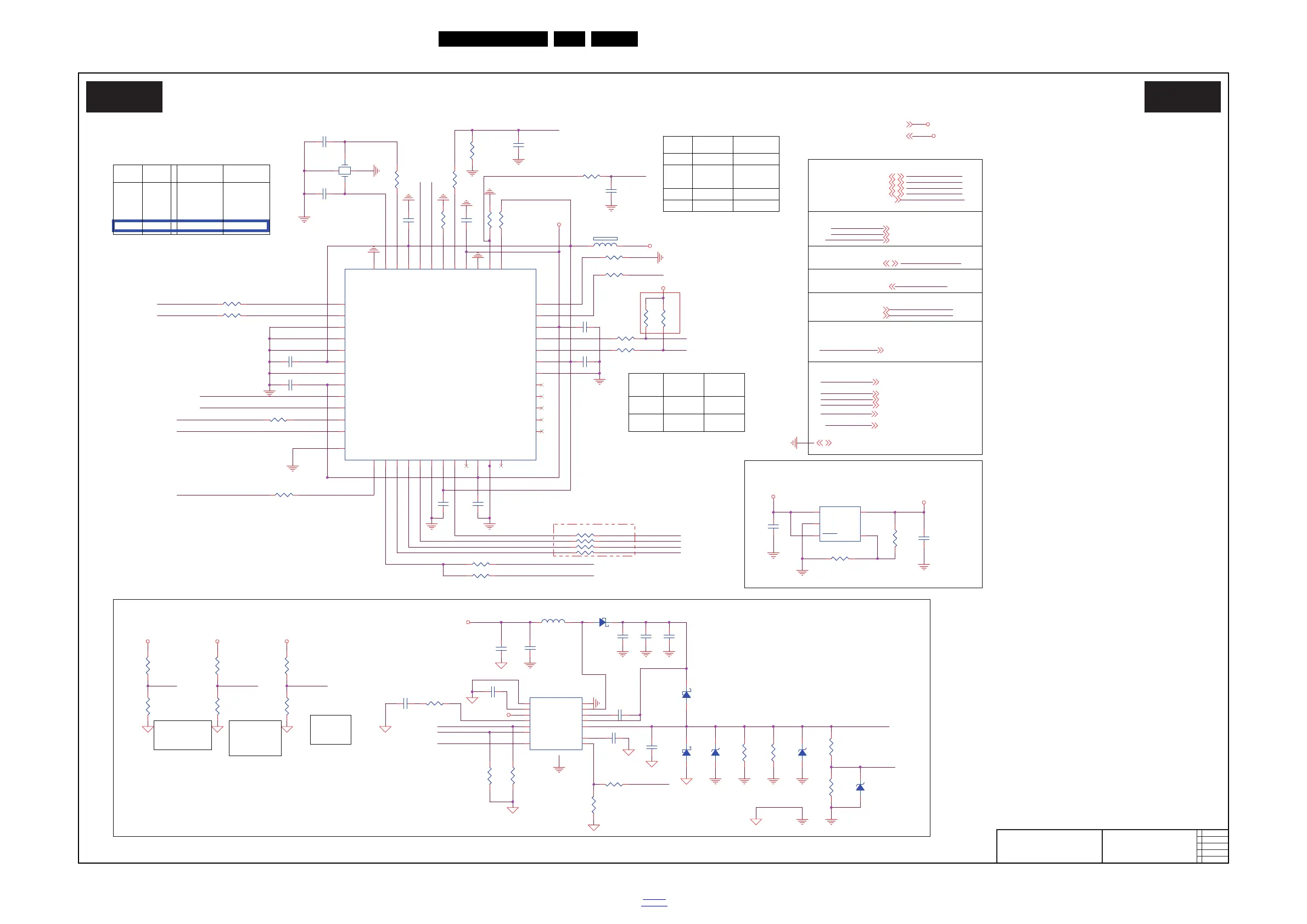

10-5-11 Silabs DEMODInput
20110_516.eps
Silabs DEMODInput B11 B11
2016-1-26
C
715G8132Silabs DEMOD
OSDA2
AGC_S
TUN_LNB
DEMOD_TSCLK
DEMOD_TSSYNC
DEMOD_TSDATA0
OSCL2
DEMOD_TSVAL
TUNER_LNB
T2_IF_AGC_TUNER
DEMOD_TSVAL
DEMOD_TSSYNC
S_TSCLK
S_DEMOD_TSVALID
S_DEMOD_TSSYNC
OSCL2
OSDA2
QOUTP IOUTP
AGC_S
DISEQC_OUT
T2_IF_AGC_TUNER
S_DEMOD_GPIO2
DMD_TSERR
T2S2_TUNER_SDA
T2S2_TUNER_SCL
T2_FEAINN
T2_FEAINP
LNB_LINEDROP
DEMOD_TSCLK
DEMOD_TSDATA0S_TSDATA0
DMD_TSERR
LNB_LINEDROP
T2S2_TUNER_SCL
T2S2_TUNER_SDA
T2_IF_P
T2_IF_N
IOUTP
QOUTP
T2_IF_P
T2_IF_N
DISEQC_OUT
TUNER_LNB
LNB_LINEDROP
TUN_LNB
DEMOD_RST
DEMOD_RST
LNB_EN
13/18V_SW
13/18V_SW
LNB_EN
13/18V_SW
LNB_EN
+12V_LNB
DVDD3V3
+18V
CVDD_1V1
DVDD3V3
DVDD3V3
CVDD_1V1
DVDD3V3
DVDD3V3
DVDD3V3
+12V_LNB
DVDD3V3
+12V_LNB
DEMOD_TSSYNC 17
OSDA2 9,13
AGC_S13
DEMOD_TSCLK 17
OSCL2 9,13
DEMOD_TSVAL 17
TUN_LNB17
DEMOD_TSDATA0 17
TUNER_LNB13
T2_IF_AGC_TUNER 13
DVDD3V33,5,6,7,9,10,12,13,15,17,19,27
+18V3,5,24,27
DMD_TSERR 17
T2S2_TUNER_SCL13
T2S2_TUNER_SDA13
QOUTP13
IOUTP13
T2_IF_P13
T2_IF_N13
DEMOD_RST17
GND 3,5,6,7,8,9,10,11,12,13,15,16,17,18,19,20,21,22,23,24,26,27
+12V_LNB 24
LNB to S2 Tuner
Scaler to Demod.
Scaler to Demod.
LMB to Scaler
S2 Interface
Tuner to Demod.
LNB_EN:
Low: disable
High: enable
MP8124 Enable Selection
13/18V_SW:
High: 18V
Low: 13V
LINEDROP:
Low: 13.3/18.3V
High: 14.3/19.3V
Compensation Selection
Core Core
Core
R171
R1068
C1301
NC
CXD2837
NC
R1031
CXD2844
0ohm
10K
2.2nF
0ohm
NC
Parts
0ohm
R1084
NC
NC
0xC9
0xD9
0ohm(L)
SLVADR0
(PIN
25)
0xD8
0xCA
NM(L)
SlaveAddres
(Read)
0xCB
0xDA
NM(H)
NM(H)
SlaveAddres
(Write)
0ohm(L)
SLVADR3
(PIN30
)
0ohm(H)
0ohm(H)
NM(L)
0xDB
0xC8
SONY DEMOD
LNB control
LNB POWER SUPPLY
SMT
T/C
R1087
R1088
T2/S2
NC
R1089
R1090
NC
SMT
T2 T2+S2
R1308 47R 1/16W 5%R13 08 47R 1/16W 5%
U202
MP8124GD–Z
U202
MP8124GD–Z
AGND
8
BYPASS
11
VDD
12
COMP
10
EN
2
LINEDROP
1
TCAP
9
VOUT
7
VBOOST
6
BST
5
SW
3
PGND
4
13V/18V
14
EXTM
13
D503
FB340M
D503
FB340M
1 2
ZD202
NC/PJSD24CW
ZD202
NC/PJSD24CW
1 2
C703
1uF 10V
C703
1uF 10V
R1084
0R05 1/16W
R1084
0R05 1/16W
C240
10uF 35V
C240
10uF 35V
C253
3.3NF 50V
C253
3.3NF 50V
C161100N 16V C161100N 16V
C8067
100N 16V
C8067
100N 16V
C160
100N 16V
C160
100N 16V
C244
10uF 35V
C244
10uF 35V
R213
100K 1%
R213
100K 1%
R1087
0R05 1/16W
R1087
0R05 1/16W
R1309 47R 1/16W 5%R1309 47R 1/16W 5%
C248 100NF 25VC248 100NF 25V
L201 10uHL201 10uH
D4013
FB340M
D4013
FB340M
1 2
R175 0R05 1/16WR175 0R05 1/16W
R214
NC/100K 1/16W 5%
R214
NC/100K 1/16W 5%
C167
100N 16V
C167
100N 16V
C250
100NF 25V
C250
100NF 25V
R1086
3.3K 1/16W
R1086
3.3K 1/16W
C165
100N 16V
C165
100N 16V
R174 0R05 1/16WR174 0R05 1/16W
C162 100N 16VC162 100N 16V
C1303
15PF 50V
C1303
15PF 50V
R8052 10K +-1% 1/16WR8052 10K +-1% 1/16W
R721
NC/100K 1/16W 5%
R721
NC/100K 1/16W 5%
R171
0R05 1/16W
R171
0R05 1/16W
FB105
120R 3A
FB105
120R 3A
1 2
R8053
1K 1/16W 1%
R8053
1K 1/16W 1%
R720
10K 1/16W 5%
R720
10K 1/16W 5%
C297
100NF 25V
C297
100NF 25V
R1310 47R 1/16W 5%R1310 47R 1/16W 5%
C1301
2.2nF 50V
C1301
2.2nF 50V
C164 100N 16VC164 100N 16V
R227
60.4K 1%
R227
60.4K 1%
R1092 0R05 1/16WR1092 0R05 1/16W
C298
10UF 16V
C298
10UF 16V
C1302
15PF 50V
C1302
15PF 50V
R223
NC/100K 1/16W 5%
R223
NC/100K 1/16W 5%
R216
2.2K 1/4W
R216
2.2K 1/4W
R718
10K 1/16W 5%
R718
10K 1/16W 5%
R774
10K 1/16W 5%
R774
10K 1/16W 5%
X101
41.0MHz
X101
41.0MHz
1
2
4
3
R221
33K 1%
R221
33K 1%
R169
499 OHM +-1% 1/16W
R169
499 OHM +-1% 1/16W
R719
NC/100K 1/16W 5%
R719
NC/100K 1/16W 5%
R7775
NC/100K 1/16W 5%
R7775
NC/100K 1/16W 5%
R1307 47R 1/16W 5%R1307 47R 1/16W 5%
C166
100N 16V
C166
100N 16V
R217
2.2K 1/4W
R217
2.2K 1/4W
R225
5.1K 1%
R225
5.1K 1%
C8070
10UF 6.3V 20%
C8070
10UF 6.3V 20%
R1085
3.3K 1/16W
R1085
3.3K 1/16W
R10310R05 1/16WR10310R05 1/16W
R1080
0R05 1/16W
R1080
0R05 1/16W
C245 22N 25VC245 22N 25V
C243
10uF 35V
C243
10uF 35V
R172
10K 1/16W 5%
R172
10K 1/16W 5%
C249 220NF 16VC249 220NF 16V
U4252
G9141T11U
U4252
G9141T11U
IN
1
GND
2
SHDN
3
SET
4
OUT
5
C163
100N 16V
C163
100N 16V
ZD203
NC/PJSD24CW
ZD203
NC/PJSD24CW
1 2
R1088
0R05 1/16W
R1088
0R05 1/16W
D504
FB340M
D504
FB340M
1 2
R183 3.3K 1/16WR183 3.3K 1/16W
R224
33 OHM 1/16W
R224
33 OHM 1/16W
R8049
0R05 1/16W
R8049
0R05 1/16W
U101
CXD2844ER
U101
CXD2844ER
GPIO1
47
TSDATA4
14
TSVALID
4
TSCLK
5
TSDATA6
16
VSS
18
DSQOUT
23
RST_X
29
CVDD
28
AVSS
39
SQAIN
32
XVDD
33
XVSS
36
TAINP
37
TTUSDA
45
SIAIN
31
XTALO
34
SCL
20
SDA
21
VSS
43
AVDD
42
RFAIN
41
TESTMODE
40
CVDD
44
TTUSCL
46
TSDATA5
15
DSQIN
24
XTALI
35
TAINM
38
TSDATA7
17
VSS
27
TIFAGC
48
TSDATA3
13
TSDATA2
12
VSS
11
CVDD
10
TSDATA1
9
TSDATA0
8
DVDD
7
VSS
6
GPIO0
1
GPIO2
2
TSSYNC
3
DVDD
19
CVDD
22
SLVADR0
25
SAGC
26
SLVADR3
30
PAD
49
R173
0R05 1/16W
R173
0R05 1/16W
R1091 NC/22 OHM 1/16WR1091 NC/22 OHM 1/16W
ZD201
NC/PJSD24CW
ZD201
NC/PJSD24CW
1 2
R1068
10K 1/16W 5%
R1068
10K 1/16W 5%
R168
10K 1/16W 5%
R168
10K 1/16W 5%
