6. Circuit Descriptions
6.1 Introduction
The TPM17.7E LA is a new chassis launched in EU in 2017. The whole range is covered by MT5802VGEJ platform. The major deltas versus its
predecessor support DVB-C; DVB-T/T2, with also USB3.0,WIFI/multi-media, Video out
The TPM17.7E LA chassis comes with the following stylings:
 series xxPUx6162/xx
 series xxPUx6262/xx
 series xxPUS6272/xx
6.1.1 Implementation
Key components of this chassis are:
 SCALER MT5802VGEJ HSFBGA-802
 EMMC THGBMDG5D1LBAIT 4GB FBGA153
 EEPROM M24128-BRMN6TP 128k SOP-8
 AUDIO AD82588B-LG48NAY 2x15W stereo E-LQ
 TUNER EUROPE TDSY-G480D

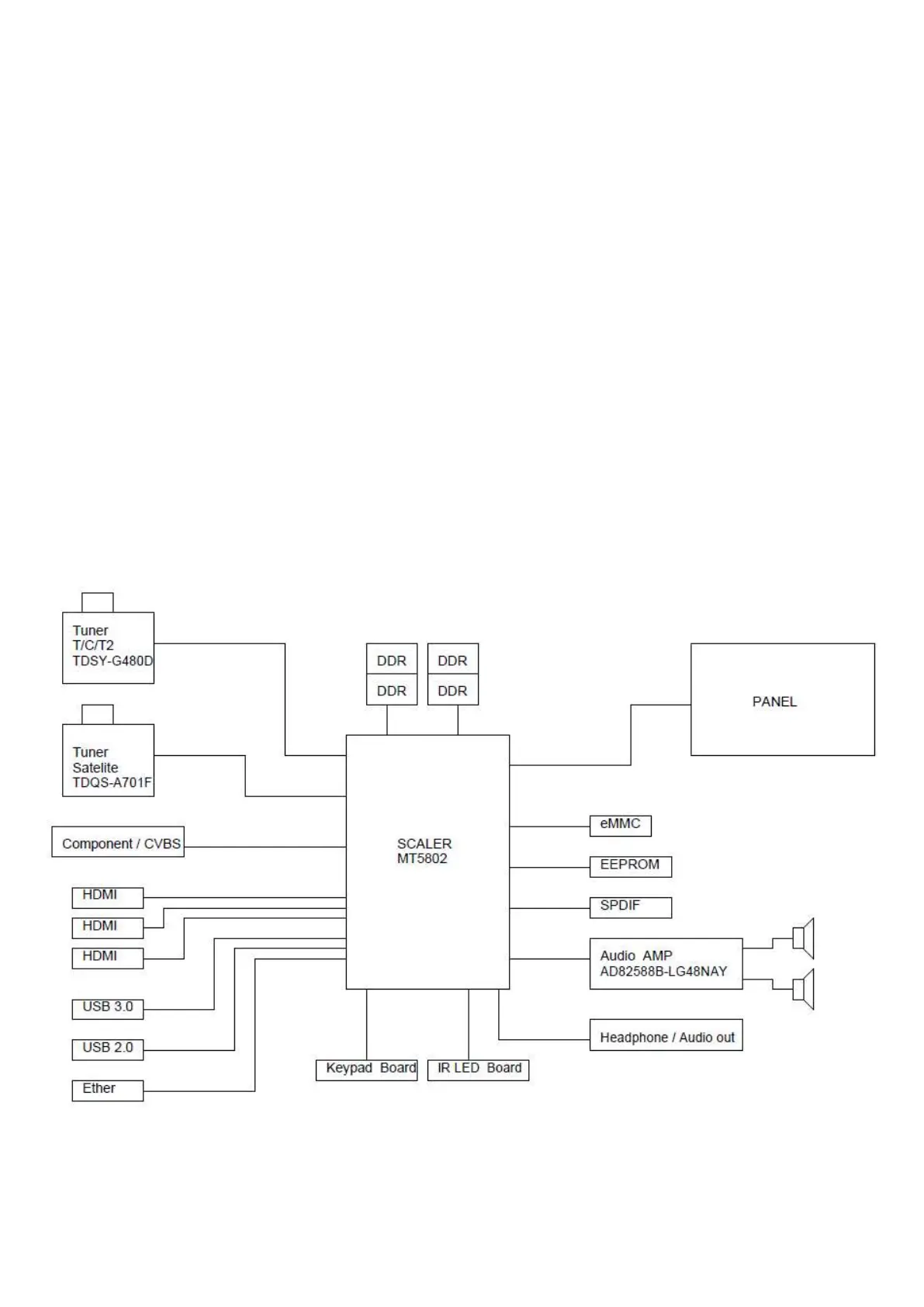

6.1.2 Block diagram
