6.4 Front-End Analogue and DVB-T/T2, DVB-C reception
The Front-End for analogue tuner consist of the following key components:
• TUNER EUROPE TDSY-G480D
• TUNER EUROPE TDQS-A701F
• SCALER MT5802VGEJ HSFBGA-802

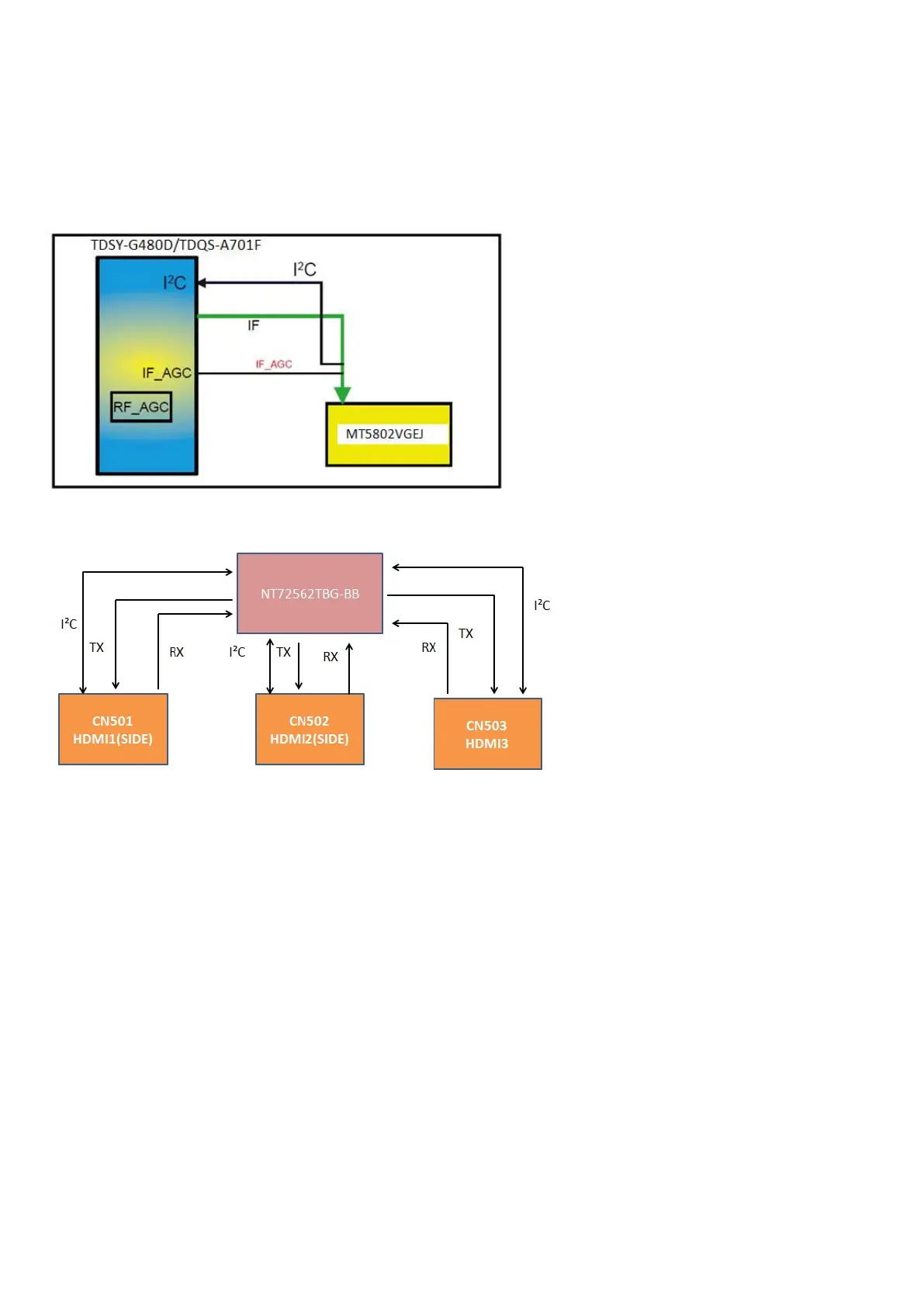

Below find a block diagram of the front-end application.
6.5 HDMI
Refer to below for the application.
The following HDMI connector can be used:
• HDMI 1: HDMI input ( TV digital interface support HDMI2.0) with digital audio/PC DVI input /MHL
• HDMI 2: HDMI input ( TV digital interface support HDMI2.0/HDCP2.2) with digital audio/PC DVI input
• HDMI 3: HDMI input ( TV digital interface support HDMI1.4) with digital audio/PC DVI input/ARC
•• +5V detection mechanism
• Stable clock detection mechanism
• MHL function only for HDMI1
• Audio return channel(ARC)
• TMDS output control
• HPD control
• CEC control
