Philips 55PUS6262/12 User Manual

- side-view LED with scanning: PSLS power panel
- direct-view LED without 2D-dimming: PSL power panel
- direct-view LED with 2D-dimming: PSDL power panel.
PSL stands for Power Supply with integrated LED-drivers.
PSLS stands for a Power Supply with integrated LED-drivers with added Scanning functionality (added microcontroller).
PSDL stands for a Power Supply for Direct-view LED backlight with 2D-dimming.
6.3 DC/DC Converters
The on-board DC/DC converters deliver the following voltages(depending on set execution):
• +5V-STB, permanent voltage for the Stand-by Power system and WIFI
• +3V3-SB,voltage for IR/Key board
• +12V, input from the power supply for the panel common(active mode)
• +12V, input from the power supply for LNB supply
• +1V8-EMMC, +V-EMMC-IO, voltage for EMMC when TV on
• +1V5-DDR, +VREF-A2-DQ,, +VREF-A2-CA, voltage for DDR
• TUNER_3V3, supply voltage for tuner
• +5V-SW, input intermediate supply voltage for USB Power
• +12V-AUDIO1 for the AUDIO AMP
• +5V-WIFI,voltage for WIFI

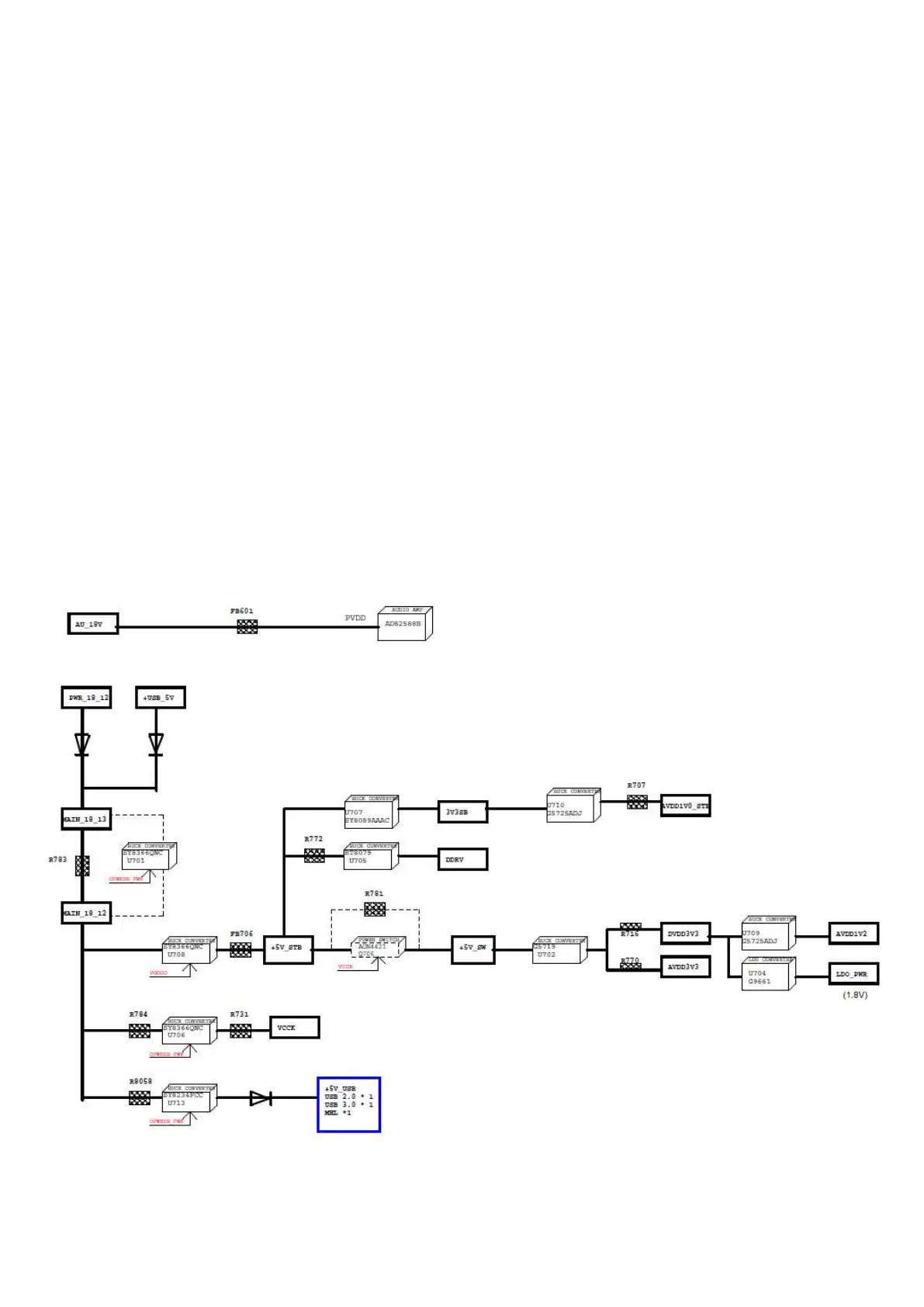

6.3.1 Power tree

Philips 55PUS6262/12 Specifications

General

Screen Size	55 inches
Display Technology	LED
Smart TV	Yes
HDR	Yes
Ambilight	Yes
HDMI Ports	3
USB Ports	2
Screen Shape	Flat
Aspect Ratio	16:9
Internet TV	Yes
Operating System	SAPHI
Refresh Rate	60 Hz
Wi-Fi	Yes
Bluetooth	No
Sound Output	20 W
Component Video (YPbPr/YCbCr) In	1
Digital Audio Optical Out	1
Headphone Outputs	1
Common Interface (CI)	Yes
Common Interface Plus (CI+)	Yes
VESA Mounting	Yes
VESA Mounting Interfaces	200 x 200 mm
Product Colour	Silver
Resolution	3840 x 2160 pixels
Motion Interpolation Technology	PMR (Perfect Motion Rate)
HDR Formats	HDR10
HDMI Version	HDMI 2.0a
