3.2.3 Rear cover removal
Warning: Disconnect the mains power cord before removing the rear cover.
Common:

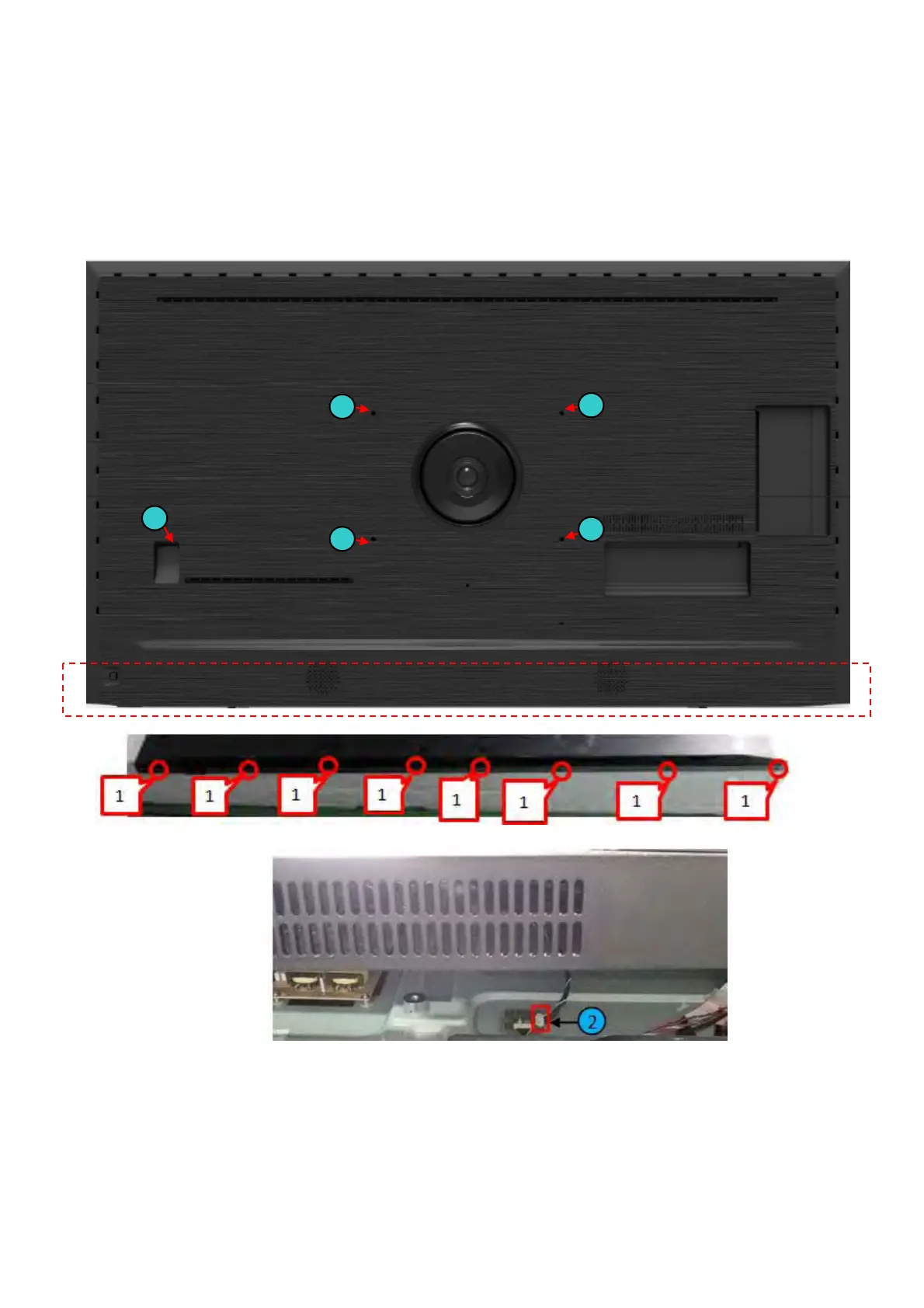

1. Remove all fixation screws[1],[2] and [3] that secure the Back cover assy.
2. Open the back cover slowly, then unplug the connector that marked by red box below which is connected from Keyboard .
3. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.
3.2.4 Keyboard Control Unit
Common:
1. Release the connector from the SSB Board.
Caution: be careful, the Keyboard is catch on the Back cover, please be careful to avoid damage the fragile connectors!
2. Remove all the fixation screws [1] and connectors [2] from the keyboard control panel then take it out from the Back cover.
When defective, replace the whole unit.
