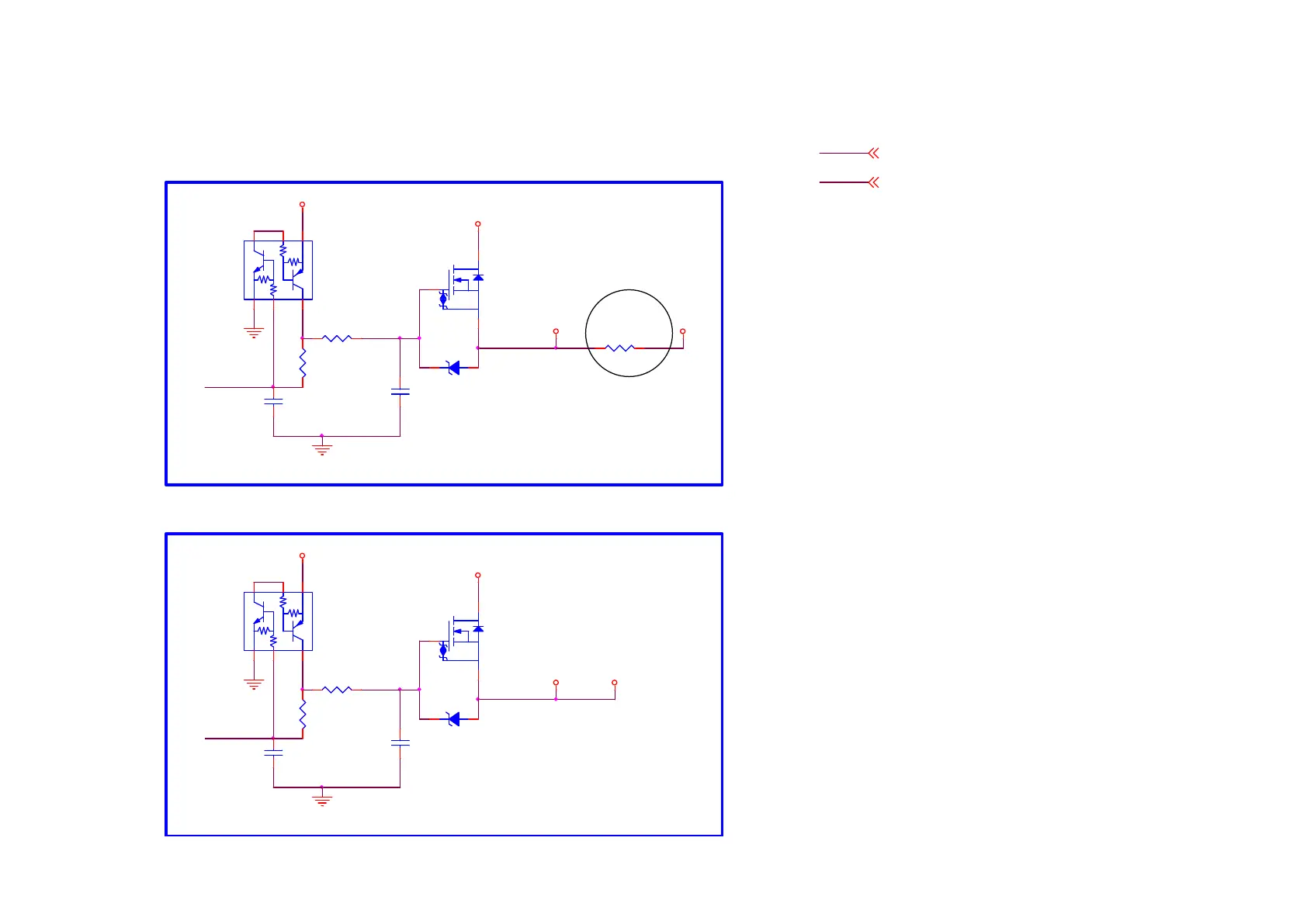

Philips 55PUT7374/98 - Page 90

9-5-21 DCDCc_+3V3
+0V9-NT-OK
+0V9-PQ-OK
+0V9-NT-OK
+3V3
+0V9-PQ-OK
R4529
220K OHM
Q4502
LMUN5313DW1T1G
1 2 3 4
5 6
R4531
NC/0R05 1/10W
Q4510
AO3416
3
1
2
C4561
100NF 16V
Q4511
LMUN5313DW1T1G
1 2 3 4
5 6
C4536
100NF 16V
Q4503
AO3416
3
1
2
R4528
220K OHM
C4537
100NF 16V
Add on 2018/5/2
ZD4505
MM3Z5V6B
C4560
100NF 16V
ZD4501
MM3Z5V6B
R4530
10K 5%
R4527
10K 5%
FRC_3.3V
+12V
+3V3-NT
+3V3
+3V3-NT
+12V
PQ_3.3V
+3V3
+0V9-NT-OK
21
+0V9-PQ-OK
21
