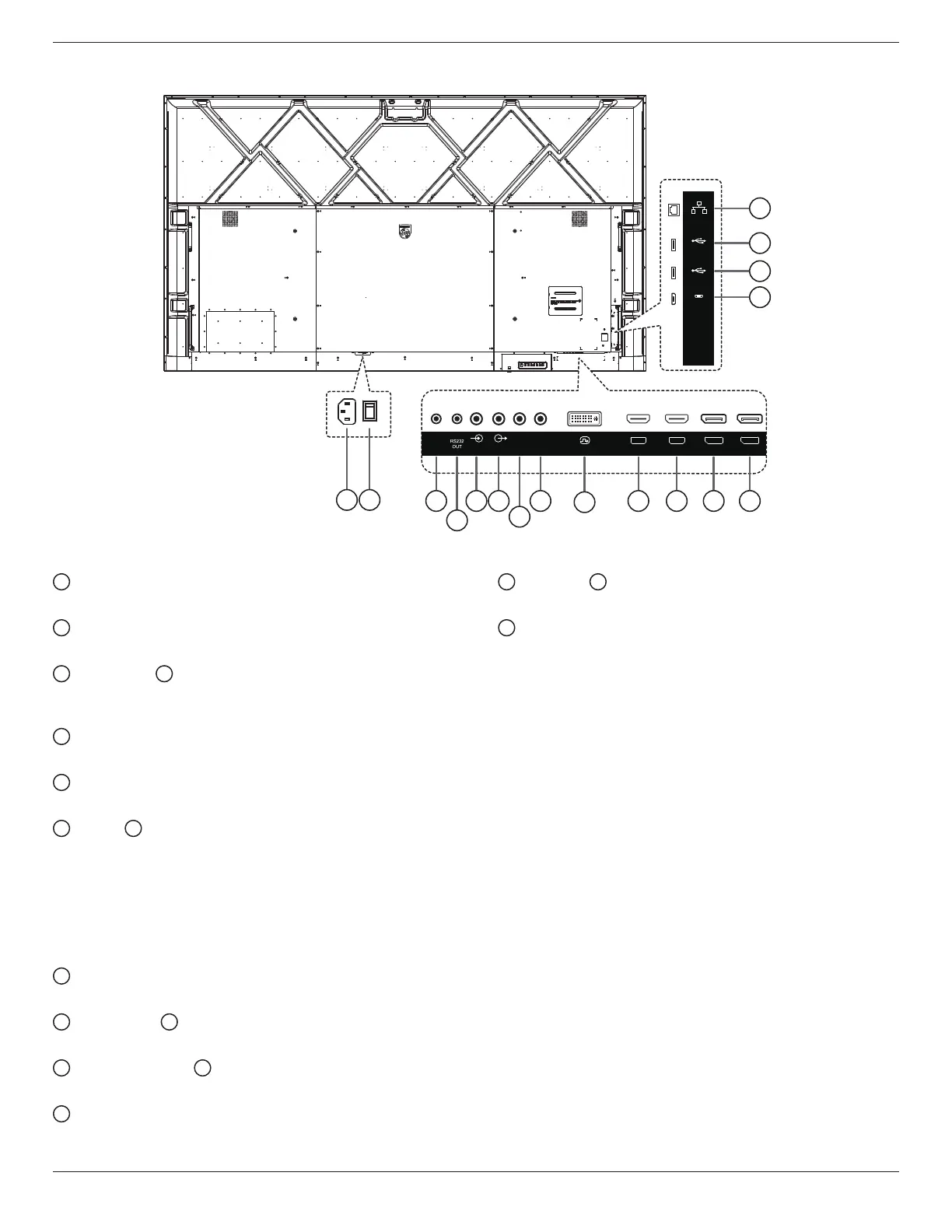

3.2. Input/Output Terminals
2
3
4
5 6
7
8
9
10 11 12 13
1
17
16
15
14
DVI-I IN
HDMI 2 IN
HDMI 1 IN
RS232
IN
IR-OUT
PC
LINE IN
AUDIO
OUT
DP IN
DP OUT
IR-IN
USB3.0
USB3.0
(Service Port)
EXPANSION
SLOT
RJ45
MICRO USB
1
AC IN
AC power input from the wall outlet.
2
MAIN POWER SWITCH
Switch the main power between On and O.
3
RS232 IN /
4
RS232 OUT
RS232 network input / output for the loop-through
function.
5
PC LINE IN
Audio input for VGA source (3.5mm stereo phone).
6
AUDIO OUT
Audio output to external AV device.
7
IR IN /
8
IR OUT
IR signal input / output for the loop-through function.
NOTES:
• This display’s remote control sensor will stop working
if the jack [IR IN] is connected.
• To remotely control your A/V device via this display,
refer to page 28 for IR Pass Through connection.
9
DVI-I IN
DVI-I video input. VGA video input.
10
HDMI1 IN /
11
HDMI2 IN
HDMI video/audio input.
12
DisplayPort IN /
13
DisplayPort OUT
DisplayPort video input / output.
14
MICRO USB
Support ADB data transmission, OTG is not supported.
15
USB 3.0 /
16
USB 3.0
Connect to a USB storage device.
17
RJ-45
LAN control function for the use of remote control signal
from control center.
To Next Page
